ET12LKRWW00 03 – LINER

ET12LKRWW00 03 – LINER

Written by

in

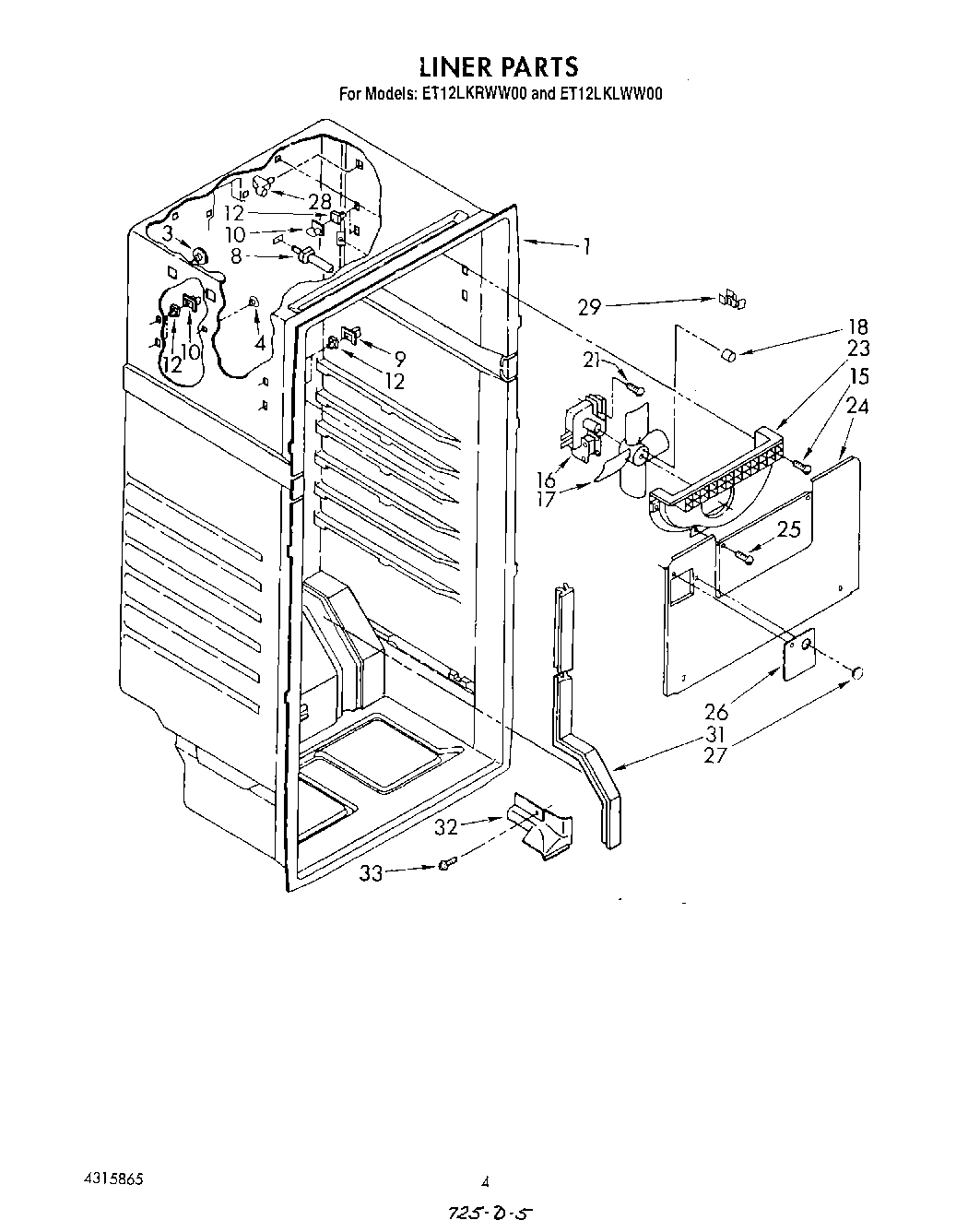

ET12LKRWW00 03 – LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
3Hole Plug (2)
4WP941839 Whirlpool Refrigerator Button Plug
8Stud, Evaporator
9Stud, Front R.S.
10819091 Whirlpool Refrigerator Shelf Stud
12Stud, Support
15WP489478 Whirlpool Refrigerator Screw
15SCREW
16Motor, Fan
17Blade, Fan
18Ring, Compression
21Screw, 8 x 1-1/4 (2)
23Scroll, Fan
24Evaporator Cover
26WP2217784 Whirlpool Refrigerator Cover
27Hole Plug
284388405 Whirlpool Refrigerator Shelf Stud
29Clip, Ground
31Cover Tube, Rear
32Cover Tube, Bottom
33WP488729 Whirlpool Refrigerator Door Screw
