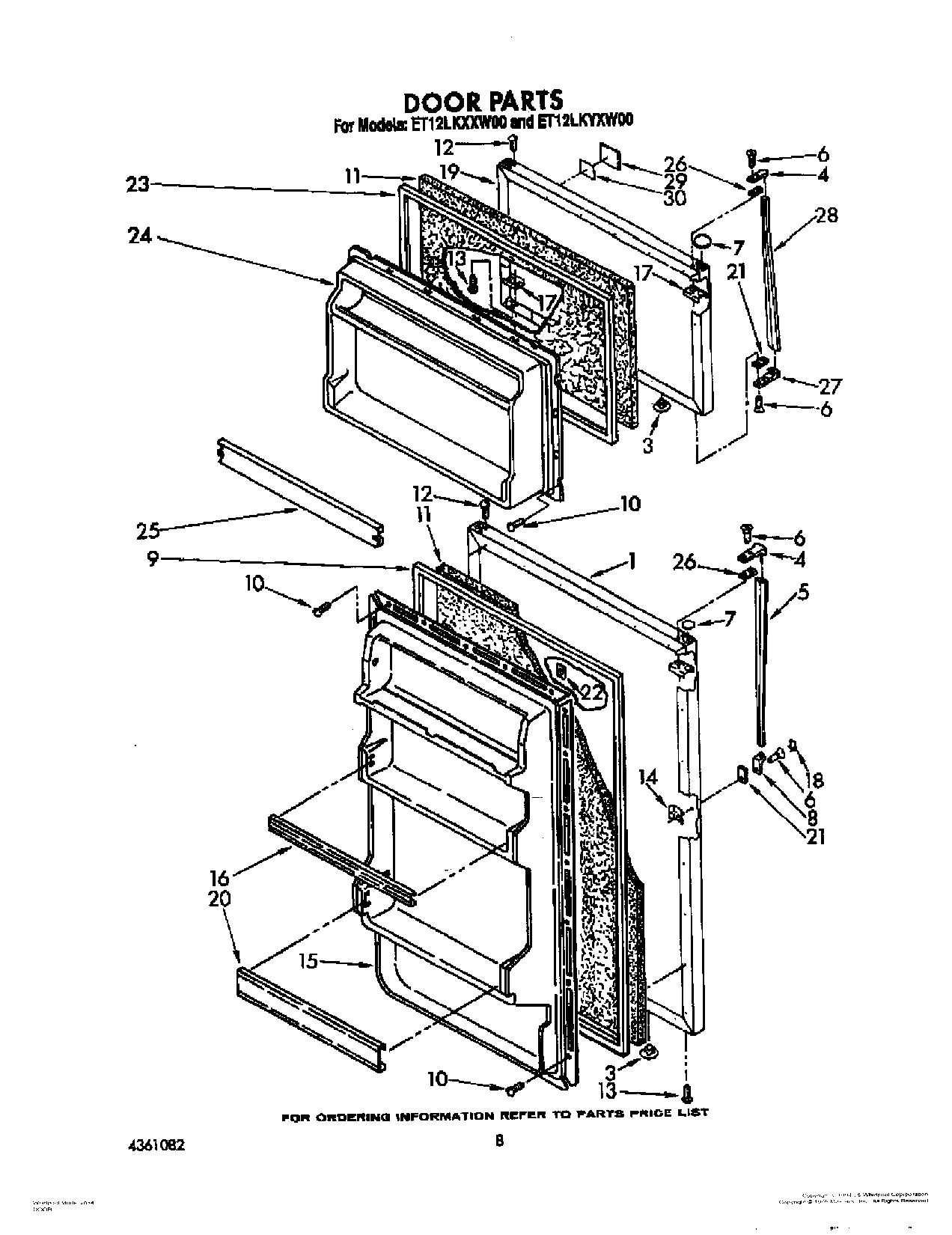

ET12LKYXN00 06 – DOOR, LIT/OPTIONAL

ET12LKYXN00 06 – DOOR, LIT/OPTIONAL

Written by

in

ET12LKYXN00 06 – DOOR, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL LIT4361082
	350942 Whirlpool Spray Paint
	WPL LIT1124661
	WPL LIT1128207
	Leveler (Thinner)
	WPL LIT2148857
	285006 Whirlpool Spray
	350956 Whirlpool Spray Assembly
1	Panel, Refrigerator Door (White)
1	Panel, Refrigerator Door (Almond)
2	Cap, Hinge Sleeve (2)
3	Hole Plug (2)
3	Hole Plug (2) (Almond)
4	819342 Whirlpool Refrigerator Endcap Kit
5	Handle, Center
6	WP488920 Whirlpool Refrigerator Screw
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
9	Door Gasket, Magnetic
10	WP489069 Whirlpool Compactor Screw
12	WP8281206 Whirlpool Refrigerator Screw
13	WP488921 Whirlpool Refrigerator Screw
14	WP939101 Whirlpool Refrigerator Plate
15	Interior Door Panel (Refrigerator)
16	Trim, Door Shelf
17	W10833053 Whirlpool Refrigerator Plate
18	WP1101634 Whirlpool Refrigerator Cover
19	Panel, Freezer Door (Also Order Item 21) (Almond)
19	Panel, Freezer Door (Also Order Item 21) (White)
20	Trim, Door Shelf
21	Spa
22	Hole Plug, Handle (Almond)
22	WP2189000 Whirlpool Refrigerator Handle Plug
23	Door Gasket, Magnetic
24	Panel, Interior Door (Freezer)
25	Trim, Door Shelf
26	Shim, Handle
28	Handle, Center
29	Nameplate
30	Tape Strip
30	Enamel, Black (1 Qt. Uncut)
30	CEMENT, ALUMILASTIC (1 1/4 OZ.)
30	TAPE, VINYL (3/4 X 108“)
30	72032 Whirlpool Touch Up Paint Black
30	WP542638 Whirlpool Refrigerator Grease
30	72017 Whirlpool Appliance Touch-Up Paint White
30	WP505587 Whirlpool Refrigerator Sealer
30	WPL 876029
30	WP503695 Whirlpool Refrigerator Sealer
30	799344 Whirlpool Refrigerator Paint
30	WP72107 Whirlpool Touchup
30	Almond (Uncut)
30	212643 Whirlpool Refrigerator Permagum Sealer
30	511873 Whirlpool Refrigerator Paint
30	876370 Whirlpool Refrigerator Insulation
30	606755 Whirlpool Refrigerator Bag
30	833938 Whirlpool Refrigerator Terminal
30	WPL 799833
