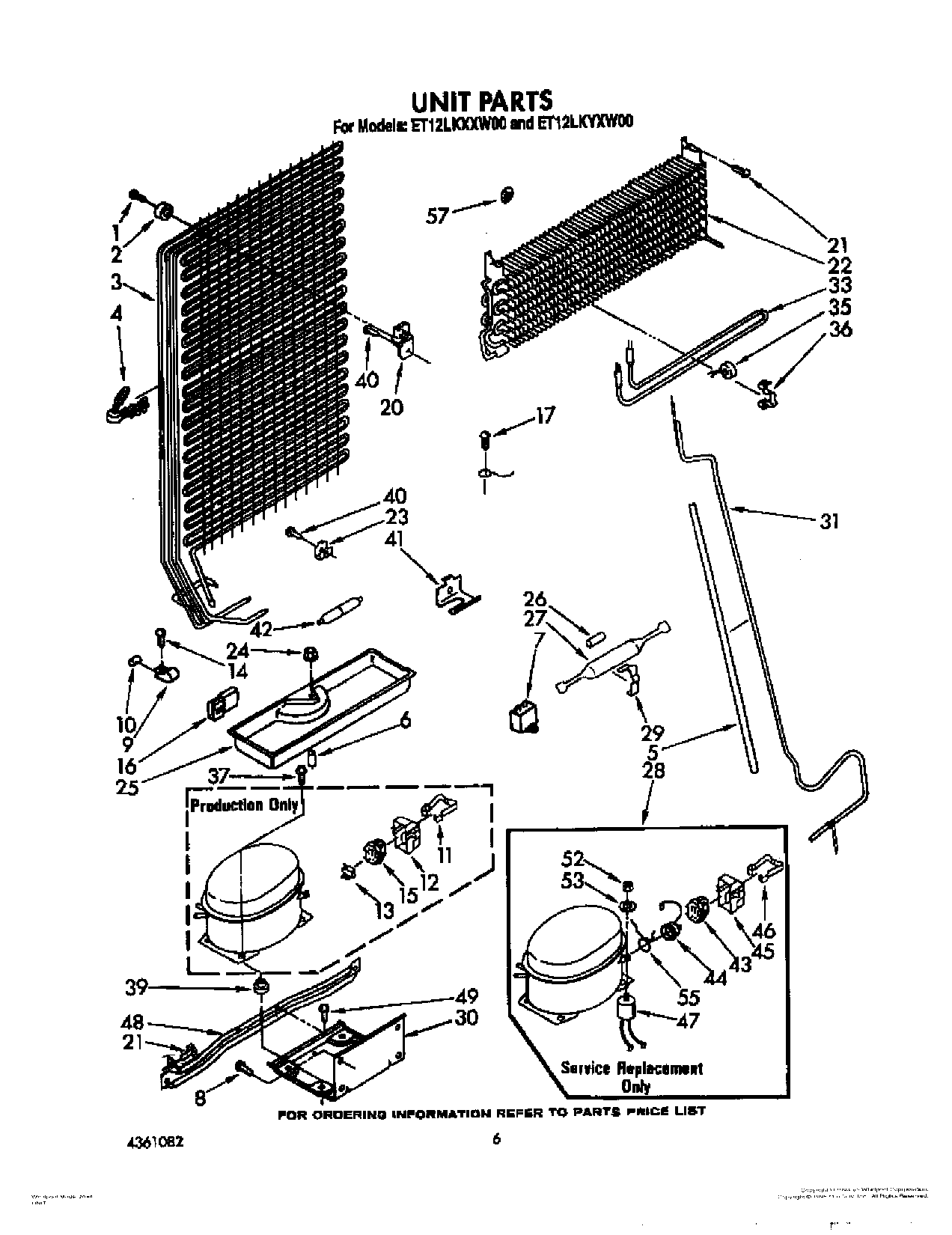

ET12LKYXW00 05 – UNIT

Products

Position	Product
1	Screw, 8 x 7/8
2	Bumper, Rubber
3	Condenser & Precooler Assembly
4	Clip, Tube (2)
5	WP2002171 Whirlpool Refrigerator Sleeve
6	Spacer
7	WPW10662129 Whirlpool Refrigerator Run Capacitor
8	WP250830 Whirlpool Refrigerator Screw
9	Clamp Tube
10	Dampener
12	Cover
13	Overload
14	WPW10141625 Whirlpool Refrigerator Screw Assembly
16	WP717253 Whirlpool Dishwasher Connector
17	303776 Whirlpool Dishwasher Screw
20	Condenser Bracket (Top)
21	WP489478 Whirlpool Refrigerator Screw
22	Evaporator
23	Clip, Condenser Mounting (2)
24	285002 Whirlpool Nut
25	Tray, Evaporator
26	Restrictor Sleeve
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
29	Clamp, Dryer
30	Unit Mounting Plate
31	Exchanger, Heat
33	Heater, Defrost
35	Bi-Metal, Defrost
36	Clamp
39	876811 Whirlpool Grommet
40	WP489069 Whirlpool Compactor Screw
41	Bracket, Wire Receptacles
42	Muffler
43	WP2262181 Whirlpool Refrigerator Start Relay
44	Overload
45	Cover, Terminal
46	Strap
47	Capacitor
48	Unit Mounting Rail
49	WP965173 Whirlpool Dishwasher Screw
52	Nut
53	Washer
55	Overload Spring
57	876764 Whirlpool Refrigerator Primary Valve
57	VALVE, ACCESS (5/8“)
57	VALVE, ACCESS (1/2“)
57	WP978025 Whirlpool Refrigerator Valve
57	978030 Whirlpool Refrigerator Valve
57	Retainer, Evaporator
57	978027 Whirlpool Refrigerator Primary Valve
57	978026 Whirlpool Refrigerator Primary Valve
