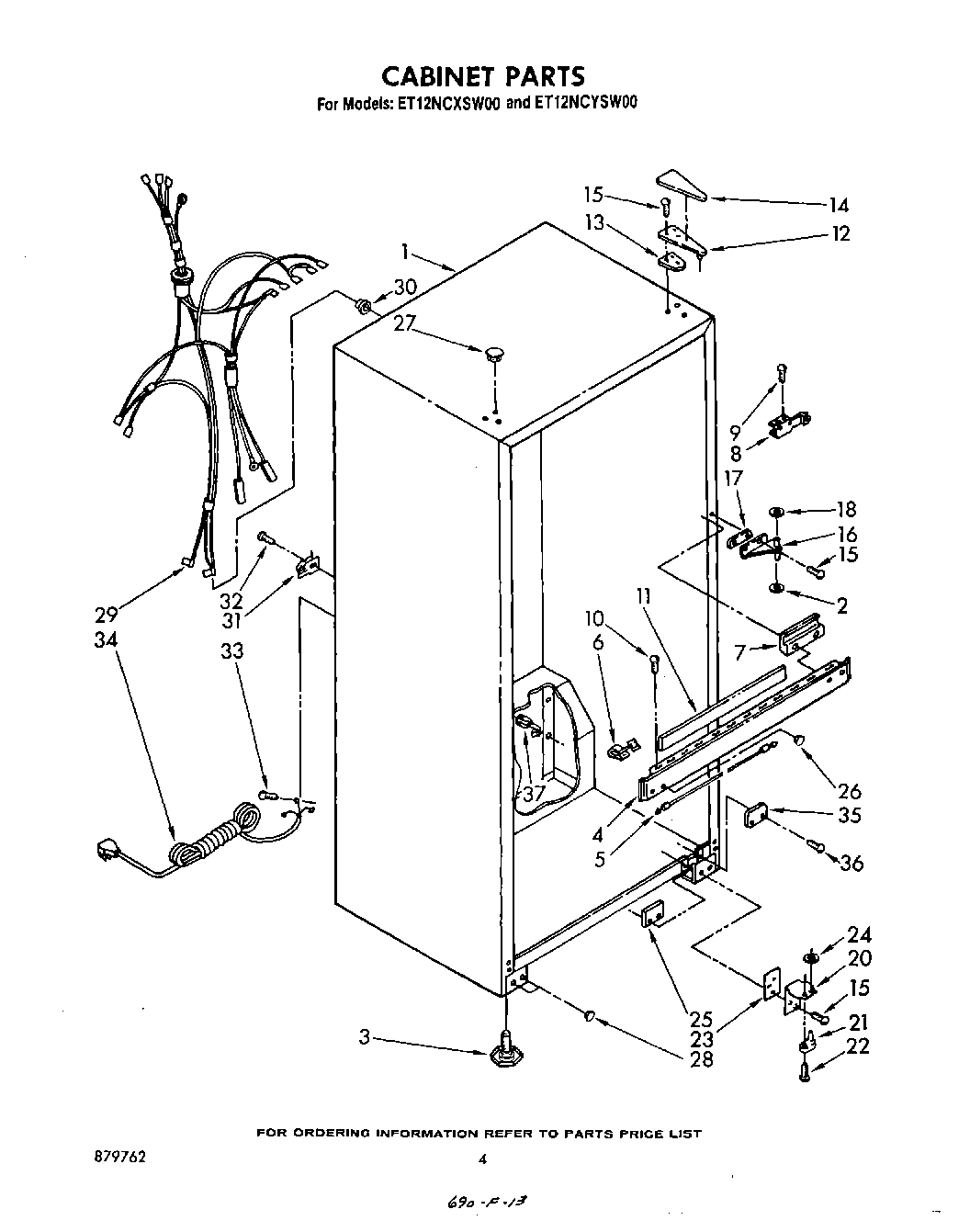

ET12NCXSW00 03 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	WP488296 Whirlpool Washer Refrigerator
3	W11117769 Whirlpool Refrigerator Leveler
4	Center Rail (Golden Harvest)
4	Center Rail (White)
4	Center Rail (Almond)
4	Center Rail (Toast)
4	Center Rail (Platinum)
5	Heater, Mullion
6	Breaker, Trim Clip
7	Center, Rail Shim (2)
8	Bracket, Center Rail (2)
10	WP488729 Whirlpool Refrigerator Door Screw
11	Seal Strip, Center Rail
12	Hinge, Top
13	Shim, Hinge
14	1119787 Whirlpool Refrigerator Hinge Cover
14	Hinge Cover (Toast)
14	Hinge Cover (Golden Harvest)
15	WP999367 Whirlpool Refrigerator Screw
15	Screw (Repair)
16	Hinge, Center
17	Shim, Hinge Center
18	WP487802 Whirlpool Refrigerator Washer
20	Butt Hinge (Bottom)
21	Hinge Pin, Bottom
22	Screw 10-32 x 5/16
23	Shim, Bottom Hinge
24	WP487576 Whirlpool Washer
25	Tap Plate, Bottom
26	Hole Plug (2) (Golden Harvest)
26	Hole Plug (2) (Almond)
26	Hole Plug (2)
26	Hole Plug (2) (Platinum)
26	Hole Plug (2) (Toast)
27	Hole Plug (2) (Almond)
27	Hole Plug (3) (Toast)
27	Hole Plug (3) (Platinum)
27	Hole Plug (2) (White)
27	Hole Plug (2) (Golden Harvest)
28	WPL 941416
28	Hole Plug (2) (Toast)
28	Hole, Plug (2) (Almond)
28	Hole Plug (2) (Golden Harvest)
28	Hole Plug (2) (Platinum)
29	WPL 939913
30	Grommet, Wiring
31	Clamp
32	W11624204 Whirlpool Screw
33	Screw, 8-32 x 3/8
34	Cord, Service
35	Tube, Rail Cover (White)
35	Tube, Rail Cover (Golden Harvest)
35	Tube, Rail Cover (Almond)
35	Tube, Rail Cover (Toast)
35	Tube, Rail Cover (Platinum)
36	Screw
37	Bushing, Strain Relief
