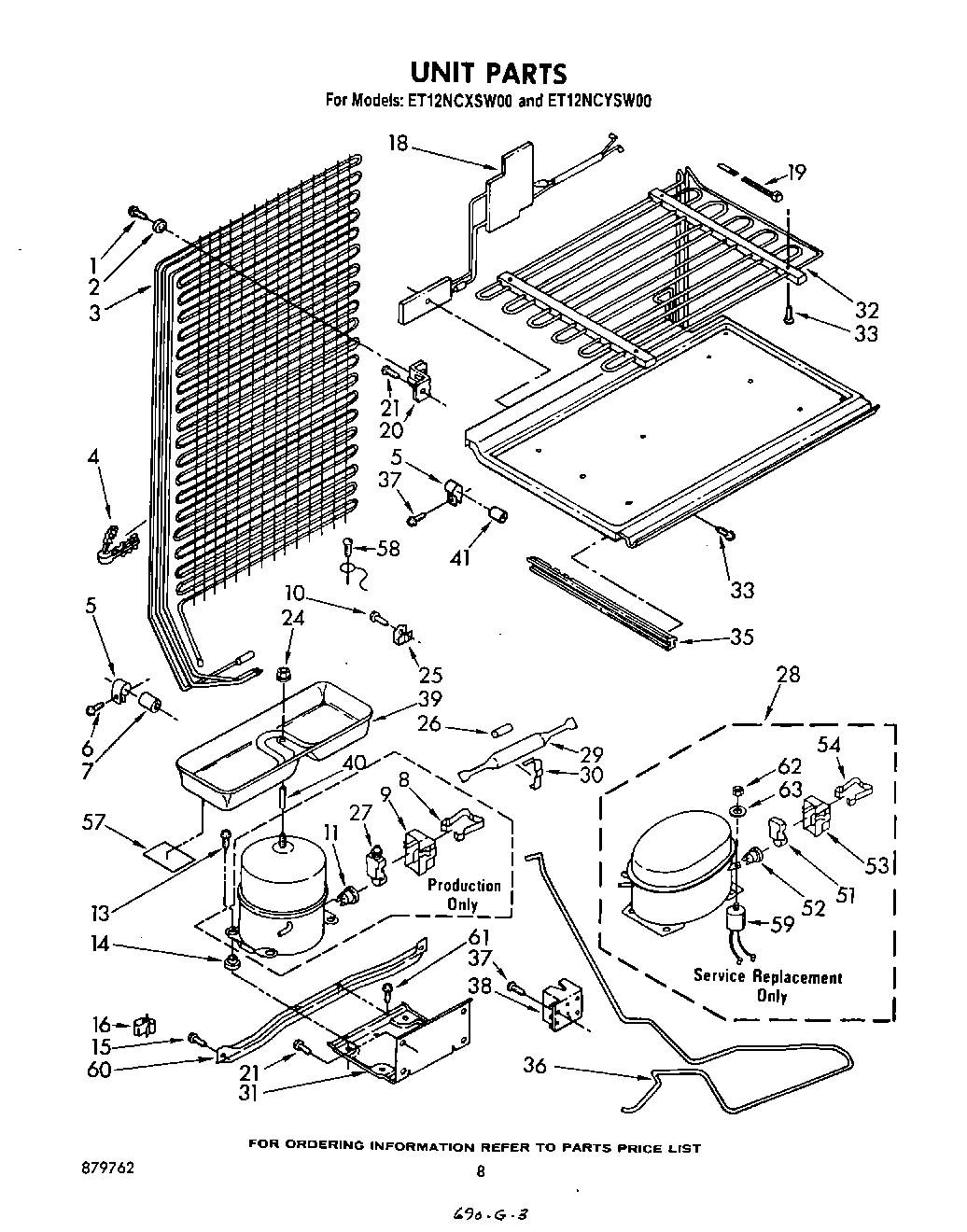

ET12NCYSW00 05 – UNIT

ET12NCYSW00 05 – UNIT

Written by

in

ET12NCYSW00 05 – UNIT

Products

PositionProduct
1Screw, 8 x 7/8
2Bumper, Rubber
3Condenser & Precooler Assembly
4Clip, Tube
5Clamp Tube
6WPW10141625 Whirlpool Refrigerator Screw Assembly
7Dampener
9Terminal Cover
11Overload
14876811 Whirlpool Grommet
15489340 Whirlpool Refrigerator Screw
16W10812038 Whirlpool Refrigerator Clip
18Defrost Heater
19Strap
20Condenser Bracket (Top)
21WP489069 Whirlpool Compactor Screw
24285002 Whirlpool Nut
254386951 Whirlpool Refrigerator Clip
26Restrictor Sleeve
27Relay
28Compressor (Includes Items 32, 33, 34, 35, 36, 43, & 44)
29W10843121 Whirlpool Refrigerator Tube
30Drier Clamp
31Unit Mounting Plate
32Evaporator Assembly
33Screw, 8-15 x 1/2 (4)
35Gasket, Evaporator Lower R.S.
35Gasket, Evaporator Lower L.S.
36Heat Exchanger
37W11624204 Whirlpool Screw
38Box, Junction
39Tray, Evaporator
40Spacer
41Dampener
51Relay
52Overload
53Cover, Terminal
54Strap
57Pad, Sound
58303776 Whirlpool Dishwasher Screw
59Capacitor
60Unit Mounting Rail
61WP965173 Whirlpool Dishwasher Screw
62Nut
63876764 Whirlpool Refrigerator Primary Valve
63978026 Whirlpool Refrigerator Primary Valve
63978027 Whirlpool Refrigerator Primary Valve
63978030 Whirlpool Refrigerator Valve
63WP978025 Whirlpool Refrigerator Valve
63VALVE, ACCESS (1/2“)
63VALVE, ACCESS (5/8“)
63Washer
