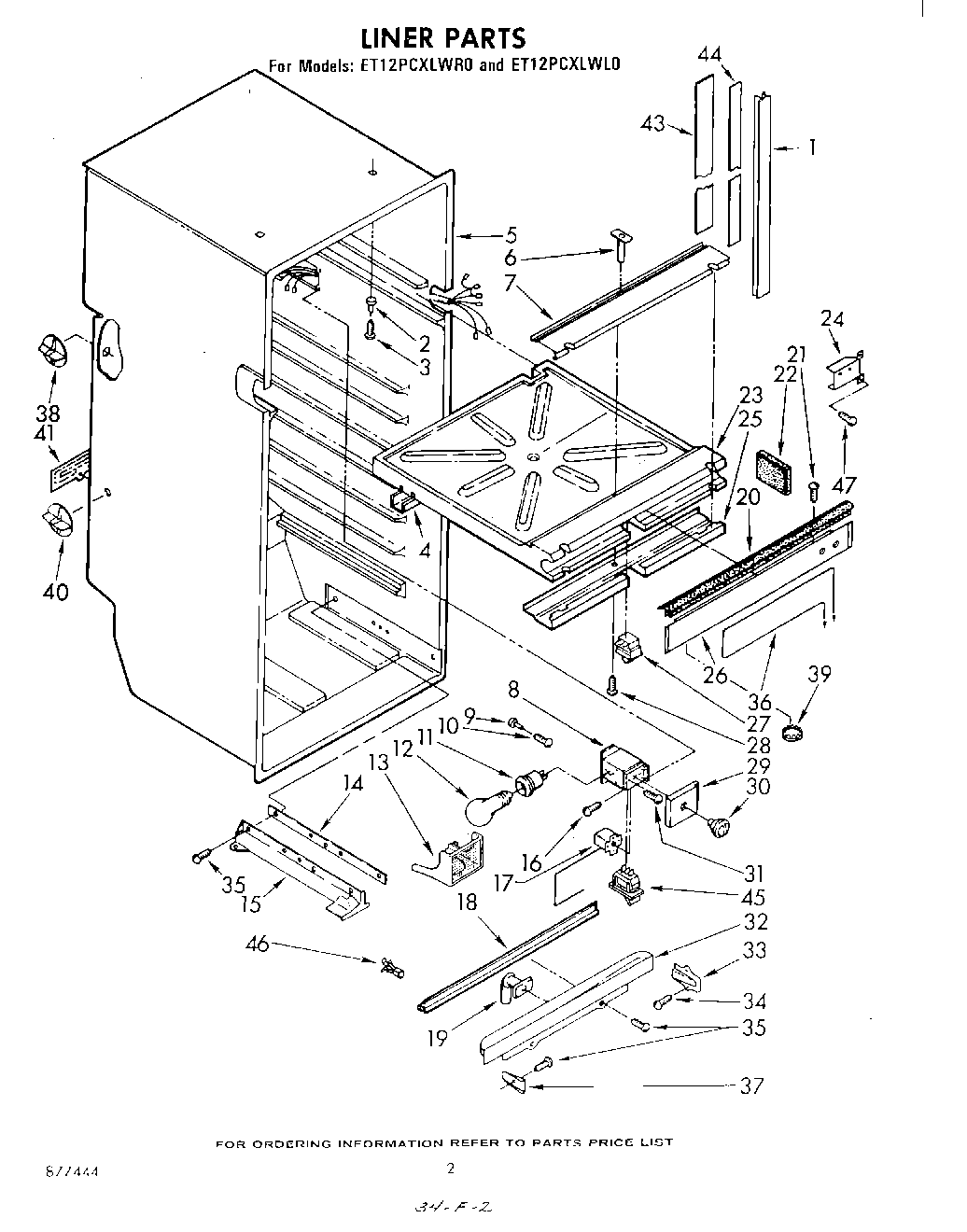

ET12PCXLWR0 02 – LINER , LIT/OPTIONALadmin2025-04-26T11:09:18+00:00ET12PCXLWR0 02 – LINER , LIT/OPTIONAL
Products
| Position | Product |
|---|
| 1 | Cover, Tube Rear |
| 2 | Spacer (2) |
| 3 | screw (repair) |
| 4 | Support, Compartment Separator |
| 5 | Liner (Not A Serviceable Part) |
| 6 | Stud |
| 7 | Trim, Top |
| 8 | Box, Control |
| 9 | Spacer (4) |
| 10 | Screw, 8-15 x 1-1/2 |
| 11 | Socket |
| 12 | RANGE ONLY 40W 120V APPL BULB |
| 13 | Light Lens |
| 14 | Gasket |
| 15 | Cover Tube, Bottom |
| 17 | Thermostat & Barrier Assembly |
| 18 | Gasket, Drip Rail |
| 19 | Fitting, Drain |
| 20 | Gasket |
| 21 | W11624204 Whirlpool Screw |
| 22 | Pad, Filler (2) |
| 23 | Insulation, Compartment Separator |
| 24 | Bracket, Center Rail (2) |
| 25 | Trim, Bottom |
| 26 | Rail, Center (White) |
| 26 | Rail, Center (Almond) |
| 26 | Rail, Center (Golden Harvest) |
| 27 | W11384469 Whirlpool Door Switch |
| 29 | Cover, Control Box |
| 30 | Knob, Control |
| 31 | WP489128 Whirlpool Refrigerator Screw |
| 32 | Rail, Drip |
| 33 | Cover, Splice Box |
| 34 | WP488729 Whirlpool Refrigerator Door Screw |
| 35 | W11693756 Whirlpool Screw Assembly |
| 36 | Heater, Mullion |
| 37 | Retainer, Drip Rail |
| 38 | Anchor, Screw (4) |
| 39 | Plug, Hole (2) |
| 40 | Screw Anchor (Repair) |
| 41 | Heater, Drain |
| 43 | Insulation, Heat Exchanger (1/4`` x 1-1/4`` x 34-1/4``) |
| 44 | Insulation, Heat Exchanger (5/16`` x 3/4`` x 34-1/2``) |
| 45 | WP938213 Whirlpool Refrigerator Power Switch |
| 46 | Clip, Tubular |
| 47 | 606755 Whirlpool Refrigerator Bag |
| 47 | 876370 Whirlpool Refrigerator Insulation |
| 47 | 350942 Whirlpool Spray Paint |
| 47 | 212643 Whirlpool Refrigerator Permagum Sealer |
| 47 | 350930 Whirlpool White Spray Paint |
| 47 | Golden Harvest (Uncut) |
| 47 | 511873 Whirlpool Refrigerator Paint |
| 47 | Golden Harvest |
| 47 | 72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz |
| 47 | Almond (Uncut) |
| 47 | Leveler (Thinner) |
| 47 | WP72107 Whirlpool Touchup |
| 47 | 799344 Whirlpool Refrigerator Paint |
| 47 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 47 | WP505587 Whirlpool Refrigerator Sealer |
| 47 | WP542638 Whirlpool Refrigerator Grease |
| 47 | TAPE, VINYL (3/4 X 108``) |
| 47 | WPL 511881 |
| 47 | Kit, Evaporator Repair (Aluminum Epoxy) |
| 47 | WPL 799351 |
| 47 | WPL 877444 |
| 47 | Screw, 8 x 3/8 |
| 47 | WPL 912555 |
| 47 | WPL 912560 |
| 47 | WPL 912567 |
| 47 | 72032 Whirlpool Touch Up Paint Black |
| 47 | 285006 Whirlpool Spray |
| 47 | WPL 876029 |
| 47 | WPL 799832 |
| 47 | Enamel, Black (1 Qt. Uncut) |
| 47 | CEMENT, ALUMILASTIC (1 1/4 OZ.) |
| 47 | 350956 Whirlpool Spray Assembly |
