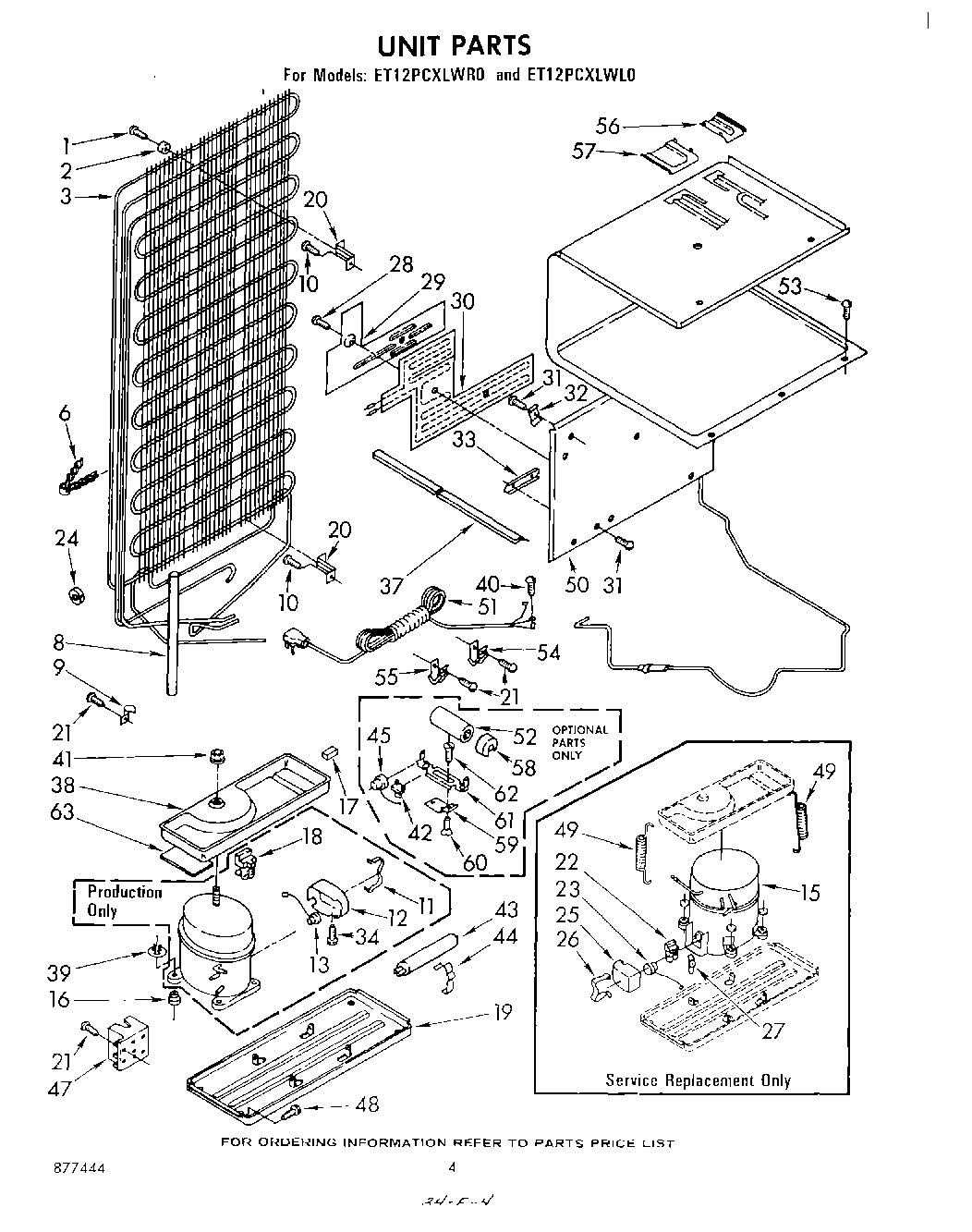

ET12PCXLWR0 03 – UNIT

ET12PCXLWR0 03 – UNIT

ET12PCXLWR0 03 – UNIT

Products

PositionProduct
1Screw (2)
2Bumper, Rubber
3Condenser & Precooler Assembly
6Clip, Tube (2)
88316810 Whirlpool Refrigerator Drain Tube
9WPL 519405
10W11624204 Whirlpool Screw
11Strap
12Terminal Cover
13Overload
15Compressor (Also Order 482727 Installation Kit & 876527 Mounting Kit)
16Grommet (4)
17Insert, Air Baffle (2)
18Relay
19Mounting Plate, Compressor
20Bracket (2)
21Screw, 8-32 x 1/2
22Relay
23Overload
24Spacer (2)
25Cover, Terminal
26Cover, Spring
27Spring, Overload
29Clamp, Heater
30Heater, Storage Plate
31W11693756 Whirlpool Screw Assembly
32Clamp, Heater
33Clip, Thermostat
37Gasket, Evaporator (2)
38Tray
39Clip (4)
40WP489128 Whirlpool Refrigerator Screw
41WP487939 Whirlpool Refrigerator Nut
42Relay (Used On Start Kit 482278)
43Drier
44WPW10339879 Whirlpool Wire Tie
45Overload (Used On Start Kit 482278)
47Box, Junction
48WP489069 Whirlpool Compactor Screw
49Spring, Bale Clip (2) (Service Compressor Only)
50Evaporator & Heat Exchanger
51Cord, Service
52WP482156 Whirlpool Refrigerator Capacitor
53WP488729 Whirlpool Refrigerator Door Screw
54549193 Whirlpool Refrigerator Power Clamp
55Cleat, Cord
56Cover, Evaporator Tube (Single)
57Cover, Evaporator Tube (Double)
58Cap, Capacitor (Used On Start Kit 482278)
59Bracket, Mounting (Used On Start Kit 482278)
60Screw (Used On Start Kit 482278)
61Support, Bracket (Used On Start Kit 482278)
62Screw (2) (Used On Start Kit 482278)
63VALVE, ACCESS (5/8“)
63978027 Whirlpool Refrigerator Primary Valve
63978026 Whirlpool Refrigerator Primary Valve
63Start Kit
63WP978025 Whirlpool Refrigerator Valve
63978030 Whirlpool Refrigerator Valve
63Pad, Sound
63VALVE, ACCESS (1/2“)
