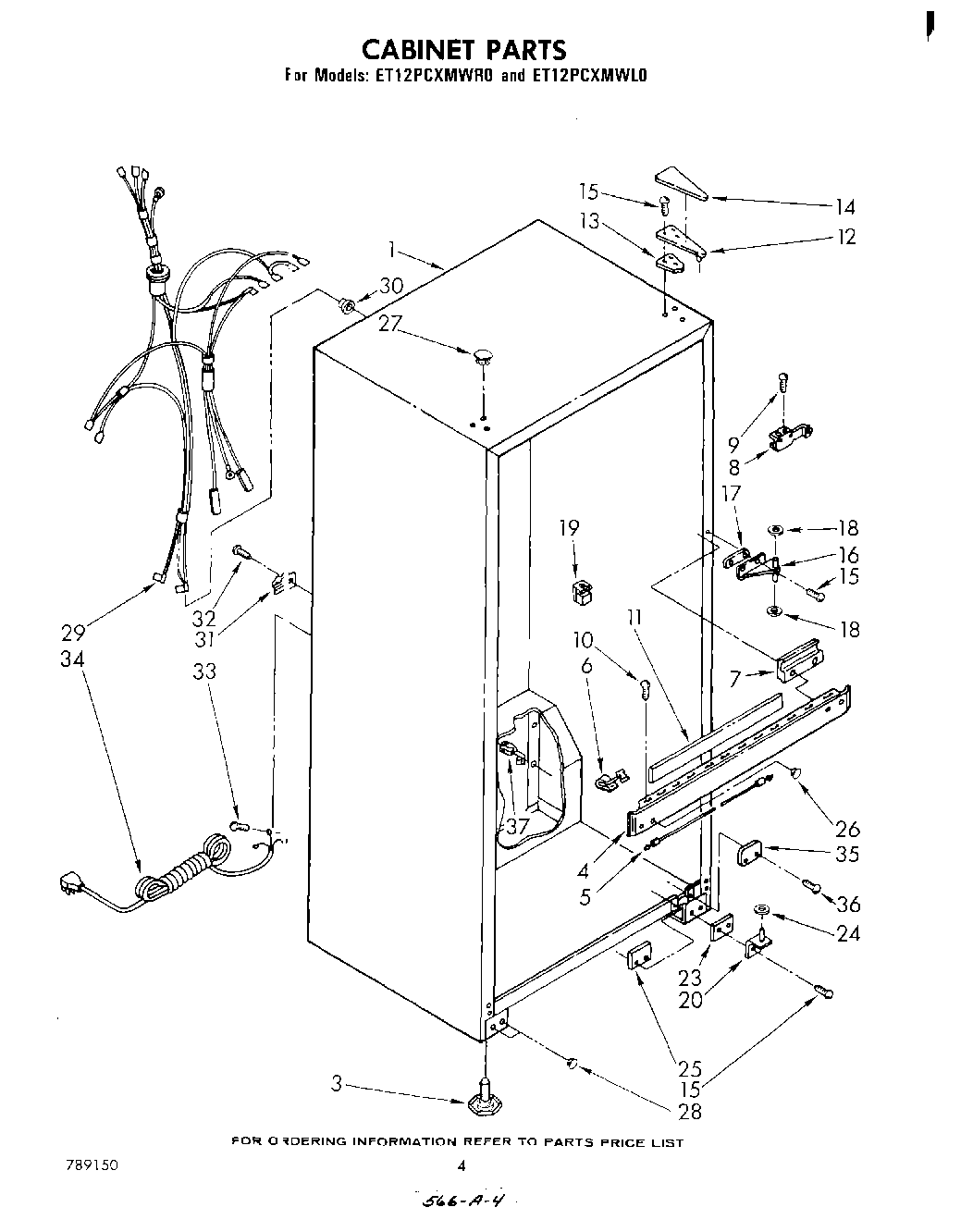

ET12PCXMWR0 03 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
3	W11117769 Whirlpool Refrigerator Leveler
4	Center Rail (Golden Harvest)
4	Center, Rail (White)
4	Center, Rail (New Avocado)
4	Center, Rail (Coffee)
4	Center, Rail (Almond)
5	Heater, Mullion
6	Breaker, Trim Clip
7	Center, Rail Shim (2)
8	Bracket, Center Rail (2)
10	WP488729 Whirlpool Refrigerator Door Screw
11	Seal, Strip
12	Shim, Hinge Top
13	Shim, Hinge
14	Hinge Cover (Golden Harvest)
14	1119787 Whirlpool Refrigerator Hinge Cover
14	Hinge, Cover (Coffee)
14	Hinge Cover (New Avocado)
15	WP999367 Whirlpool Refrigerator Screw
15	Screw (Repair)
16	Hinge, Center
17	Shim, Hinge Center
18	WP488296 Whirlpool Washer Refrigerator
19	Spacer (2)
20	Hinge, Bottom L.H.
20	Hinge, Bottom R.H.
23	Shim, Bottom Hinge
24	WP487576 Whirlpool Washer
25	Tap Plate, Bottom
26	Hole Plug (2)
26	WPL 940090
26	Hole Plug (2) (Golden Harvest)
26	Hole Plug (2) (Coffee)
26	Hole Plug (2) (Almond)
27	Hole Plug (Coffee)
27	Hole Plug (2) (Almond)
27	Hole Plug (3) (White)
27	Hole Plug (New Avocado)
27	Hole Plug (2) (Golden Harvest)
28	WPL 941416
28	Plug Button (2) (New Avocado)
28	Plug Button (2) (Coffee)
28	Hole Plug (2) (Golden Harvest)
28	Hole, Plug (2) (Almond)
29	Cabinet, Wiring Assembly
30	Grommet, Wiring
31	Clamp
32	W11624204 Whirlpool Screw
33	Screw, 8-32 x 3/8
34	Cord, Service
35	Tube, Rail Cover (Almond)
35	Tube, Rail Cover (White)
35	Tube, Rail Cover (Coffee)
35	WPL 935710
35	Tube, Rail Cover (Golden Harvest)
36	Screw
37	Bushing, Strain Relief
