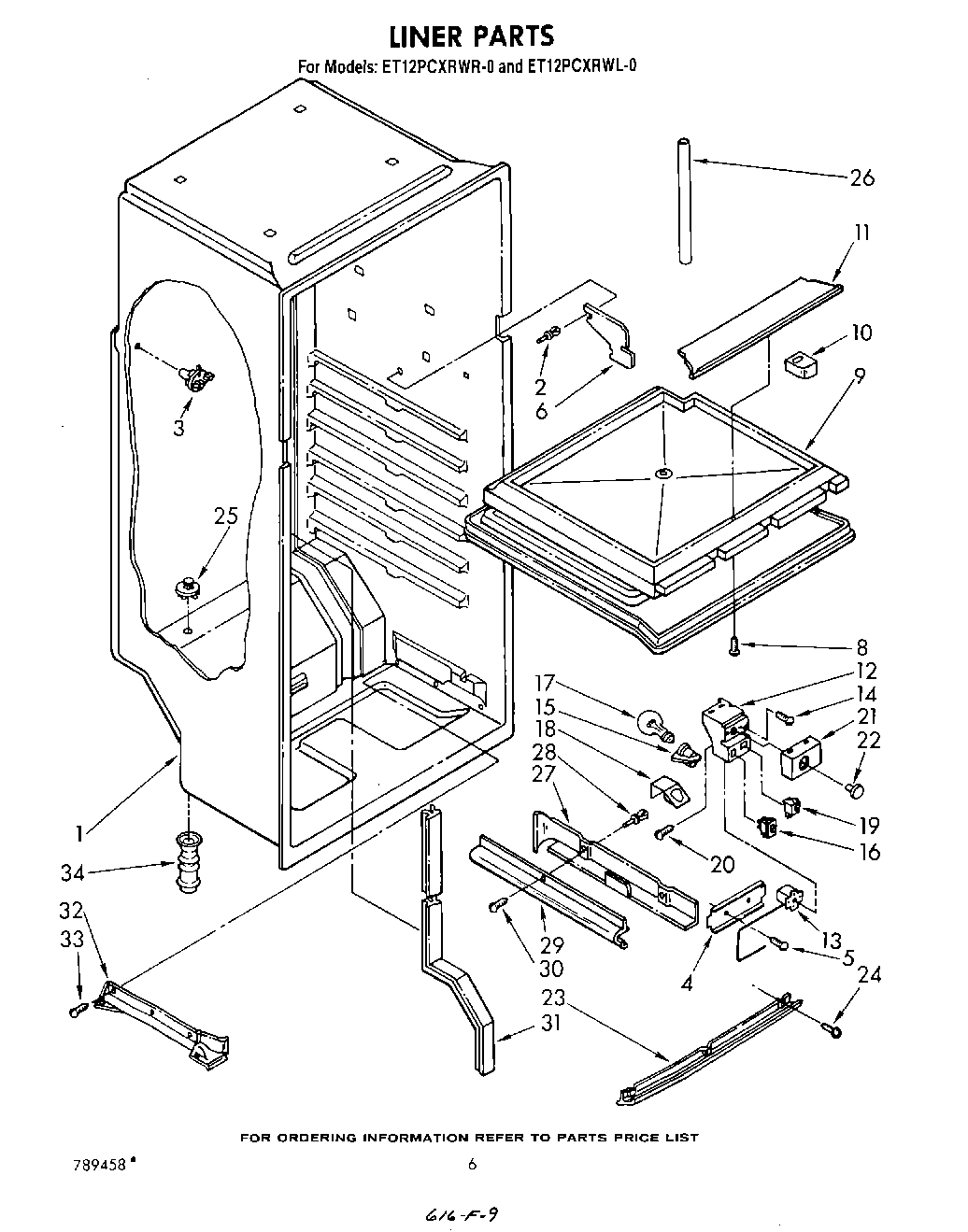

| 1 | Liner (Not A Serviceable Part) |
| 2 | 939962 Whirlpool Refrigerator Rivet |
| 3 | Screw Anchor (4) |
| 4 | Clip, Thermostat |
| 6 | Electric Shield |
| 8 | WP488163 Whirlpool Refrigerator Screw |
| 9 | Insulation, Compartment Separator Assembly |
| 10 | Insulation, Crossover Tube |
| 11 | Breaker Trim, Mullion |
| 12 | Control Box |
| 13 | Thermostat |
| 14 | WP489128 Whirlpool Refrigerator Screw |
| 15 | 4387478 Whirlpool Refrigerator Light Socket |
| 16 | WP938213 Whirlpool Refrigerator Power Switch |
| 17 | W11679940 Whirlpool Refrigerator Light Bulb Assembly |
| 18 | Light Shield |
| 19 | W11384469 Whirlpool Door Switch |
| 20 | WP489069 Whirlpool Compactor Screw |
| 21 | Cover, Control Box |
| 22 | Knob, Control |
| 23 | Drain Trough |
| 24 | WP488729 Whirlpool Refrigerator Door Screw |
| 25 | Drain, Ferrule Cap |
| 26 | Cover, Connecting Lines |
| 27 | Wire Cover (Rear) |
| 28 | Rivet, Plastic (2) |
| 29 | Wire Cover (Front) |
| 30 | Screw, 8-15 x 1/2 (4) |
| 31 | Cover, Tube (Rear) |
| 32 | Cover Tube, Bottom |
| 33 | W11693756 Whirlpool Screw Assembly |
| 34 | Fitting, Drain |
