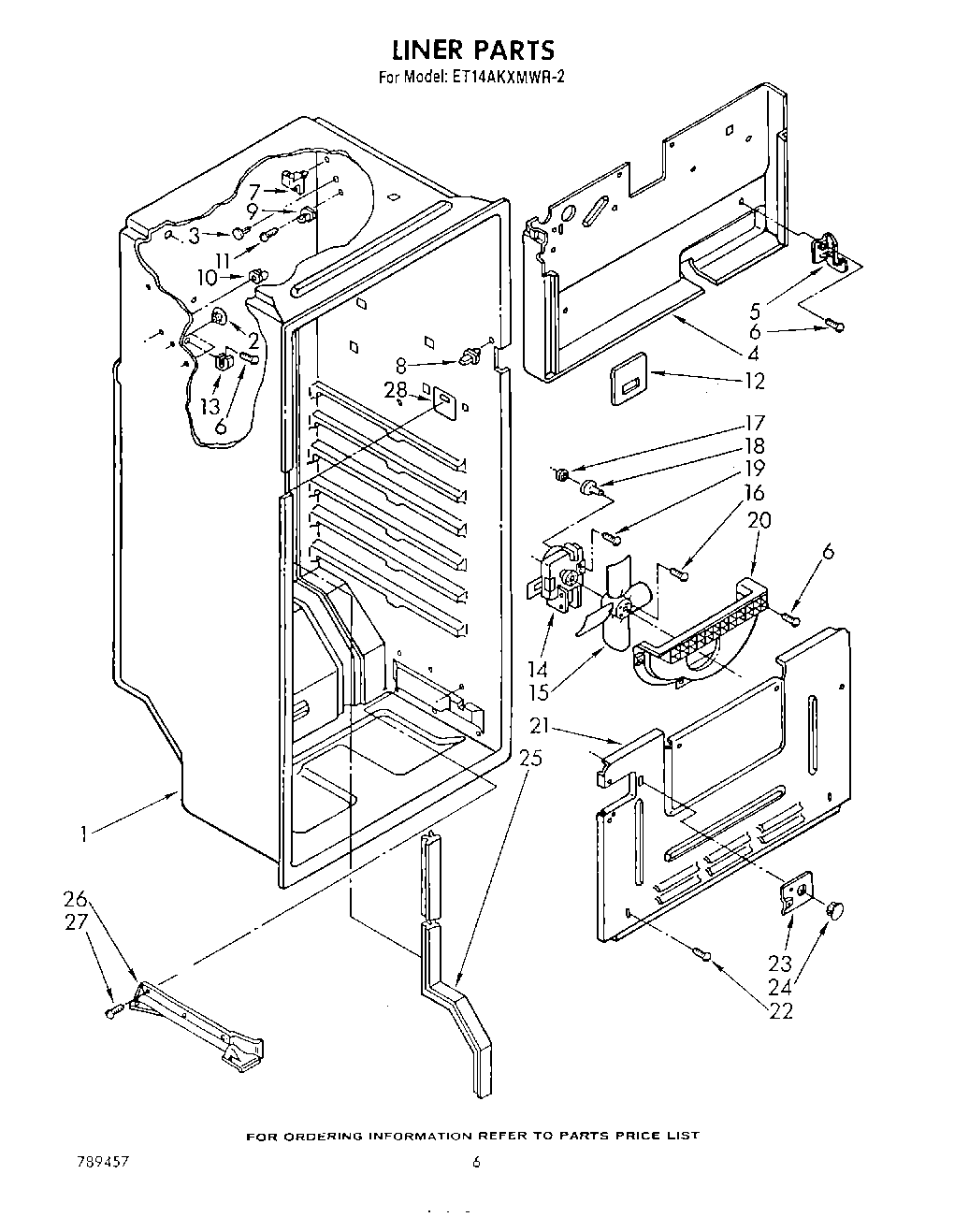

ET14AKXMWR2 04 – LINER , LIT/OPTIONAL

ET14AKXMWR2 04 – LINER , LIT/OPTIONAL

Written by

in

ET14AKXMWR2 04 – LINER , LIT/OPTIONAL

Products

PositionProduct
WPL LIT1100050
WPL LIT946685
WPL LIT942291
WPL LIT789457
1Liner (Not A Serviceable Part)
2Hole Plug (2)
3WP941839 Whirlpool Refrigerator Button Plug
4Heat Shield
5Evaporator Support (2)
6W11624204 Whirlpool Screw
74388405 Whirlpool Refrigerator Shelf Stud
8Shelf, Stud
9Shelf, Stud Saddle
10Shelf Stud, Saddle L.S.
12Cover, Air Duct
13Bracket, Wire Receptacles
14482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
15WP1100938 Whirlpool Refrigerator Fan Blade
16WP487887 Whirlpool Refrigerator Screw
17Grommet
18Spacer, Fan Motor (2)
19Screw (2)
20Fan Scroll
21Evaporator Cover
22WP488729 Whirlpool Refrigerator Door Screw
23WP2217784 Whirlpool Refrigerator Cover
24Hole Plug
25Cover Tube, Rear
26Cover Tube, Bottom
27W11693756 Whirlpool Screw Assembly
28Leveler (Thinner)
2872113 Whirlpool Touch-Up Paint
28Toast
28Golden Harvest
28350956 Whirlpool Spray Assembly
28350930 Whirlpool White Spray Paint
2872017 Whirlpool Appliance Touch-Up Paint White
28799344 Whirlpool Refrigerator Paint
28WPL 799351
28Almond (Uncut)
28WP72107 Whirlpool Touchup
28Kit, Evaporator Repair (Aluminum Epoxy)
28WPL 511881
2872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
28Shield, Wiring
28Golden Harvest (Uncut)
28TAPE, VINYL (3/4 X 108“)
28WP542638 Whirlpool Refrigerator Grease
28WP505587 Whirlpool Refrigerator Sealer
28WPL 72112
28833938 Whirlpool Refrigerator Terminal
28606755 Whirlpool Refrigerator Bag
28511873 Whirlpool Refrigerator Paint
28350942 Whirlpool Spray Paint
28CEMENT, ALUMILASTIC (1 1/4 OZ.)
28Enamel, Black (1 Qt. Uncut)
28WPL 799832
28876370 Whirlpool Refrigerator Insulation
28WP503695 Whirlpool Refrigerator Sealer
28Paint, Spray (13 Oz.) (Platinum)
28Enamal, Toast (1 Qt. Uncut)
2872032 Whirlpool Touch Up Paint Black
28285006 Whirlpool Spray
28Platinum (Uncut)
28WPL 876029
28212643 Whirlpool Refrigerator Permagum Sealer
