ET14AKXRWR0 02 – CABINET

ET14AKXRWR0 02 – CABINET

Written by

in

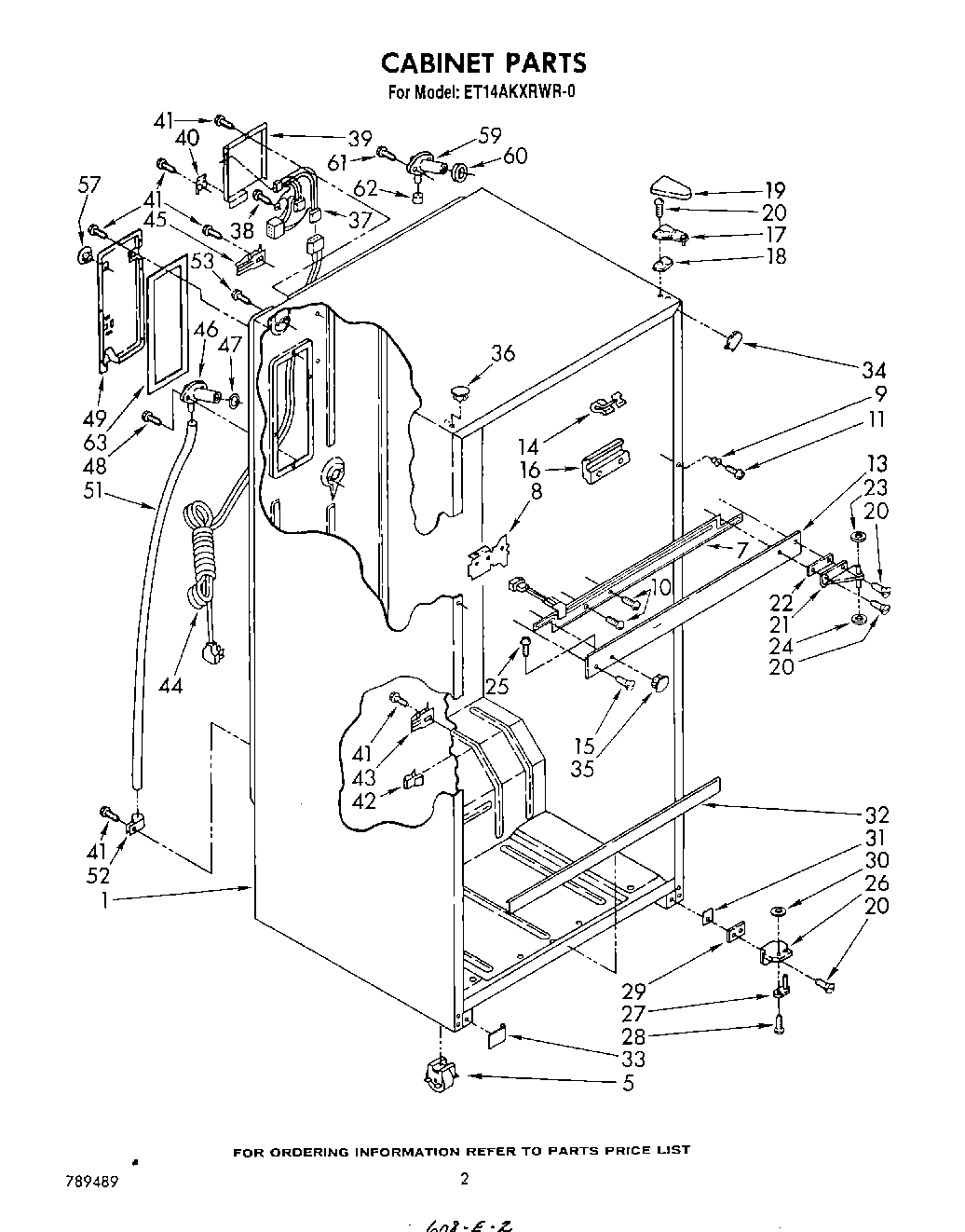

ET14AKXRWR0 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
5	Roller, Front & Rear (4)
7	Heater, Mullion
8	Center Rail, Bracket (2)
9	Ferrule, Center Rail
10	Screw, 8-32 x 1/2
11	WPL 488428
13	Center Rail (Golden Harvest)
13	Center Rail (White)
13	Center Rail (Almond)
13	Center Rail (Toast)
13	Center Rail (Platinum)
14	Breaker, Trim Clip
15	Screw
16	Center, Rail Shim (2)
17	Shim, Hinge Top
18	Shim, Hinge
19	Hinge Cover (Golden Harvest)
19	1119787 Whirlpool Refrigerator Hinge Cover
19	Hinge Cover (Toast)
20	WP999367 Whirlpool Refrigerator Screw
20	Screw (Repair)
21	Hinge, Center
22	Shim, Hinge Center
24	WP488296 Whirlpool Washer Refrigerator
25	WP488729 Whirlpool Refrigerator Door Screw
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom
30	WP487802 Whirlpool Refrigerator Washer
31	Cover, Glider Rail (White)
31	Cover, Glider Rail (Toast)
31	Cover, Glider Rail (Almond)
31	Cover, Glider Rail (Golden Harvest)
31	Cover, Glider Rail (Platinum)
32	Cover, Deck Rail (Platinum)
32	Cover, Deck Rail (White)
32	Cover, Deck Rail (Toast)
32	Cover, Deck Rail (Almond)
32	Cover, Deck Rail (Golden Harvest)
33	WPL 944833
33	WPL 944831
33	WPL 1100682
33	Cover, Gl
33	WPL 943552
34	WPL 1110684
34	WPL 1110687
34	WPL 1110686
34	WPL 1110685
34	WPL 1110688
35	Hole Plug (2)
35	Hole Plug (2) (Toast)
35	Hole Plug (2) (Almond)
35	Hole Plug (2) (Golden Harvest)
35	Hole Plug (2) (Platinum)
36	Hole Plug (3) (Platinum)
36	Hole Plug (2) (Almond)
36	Hole Plug (2) (Golden Harvest)
36	Hole Plug (3) (Toast)
36	Hole Plug (2) (White)
37	WPL 942844
38	WP250830 Whirlpool Refrigerator Screw
39	WPL 942845
40	WPL 944741
41	W11624204 Whirlpool Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	WPL 1106507
48	WP98165 Whirlpool Screw
49	WPL 942854
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
53	WP489069 Whirlpool Compactor Screw
57	WPL 655411
59	WP2196157 Whirlpool Fill Tube
60	WP1106508 Whirlpool Refrigerator Gasket
62	WP487996 Whirlpool Refrigerator Cap Tube
63	WPL 1106510
