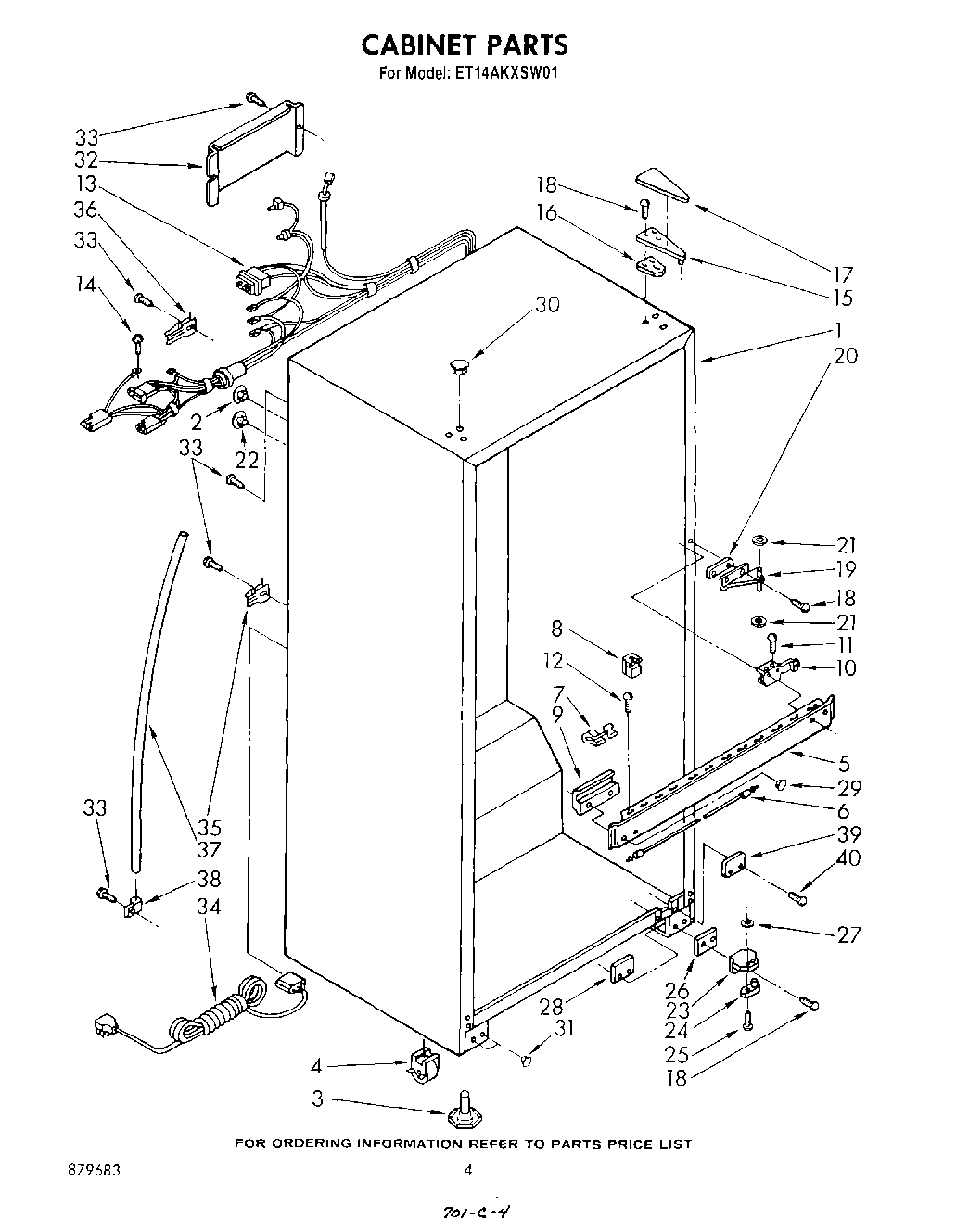

ET14AKXSW01 03 – CABINET

ET14AKXSW01 03 – CABINET

Written by

in

ET14AKXSW01 03 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2940014 Whirlpool Refrigerator Primary Button Plug
3W11117769 Whirlpool Refrigerator Leveler
4Roller, Front & Rear (4)
5Center Rail (Almond)
5Center Rail (Golden Harvest)
5Center Rail (White)
5Center Rail (Toast)
5Center Rail (Platinum)
6WPL 938278
7Breaker, Trim Clip
8Spacer
9Center, Rail Shim (2)
10Bracket, Center Rail (2)
12WP488729 Whirlpool Refrigerator Door Screw
13Cabinet, Wiring Assembly
14WP489128 Whirlpool Refrigerator Screw
15Hinge, Top
16Shim, Hinge
17Hinge Cover (Toast)
17Hinge Cover (Golden Harvest)
171119787 Whirlpool Refrigerator Hinge Cover
18WP999367 Whirlpool Refrigerator Screw
18Screw (Repair)
19Hinge, Center
20Shim, Hinge Center
21WP488296 Whirlpool Washer Refrigerator
22WPL 655411
23Butt Hinge (Bottom)
24Hinge Pin, Bottom
25Screw 10-32 x 5/16
26Shim, Bottom Hinge
27WP487576 Whirlpool Washer
28Tap Plate, Bottom
29Hole Plug (2) (Platinum)
29Hole Plug (2)
29Hole Plug (2) (Toast)
29Hole Plug (2) (Almond)
29Hole Plug (2) (Golden Harvest)
30Hole Plug (2) (Golden Harvest)
30Hole Plug (2) (White)
30Hole Plug (3) (Platinum)
30Hole Plug (2) (Almond)
30Hole Plug (3) (Toast)
31Hole Plug (2) (Platinum)
31Hole Plug (2) (Toast)
31WPL 941416
31Hole, Plug (2) (Almond)
31Hole Plug (2) (Golden Harvest)
32Cover, Wiring
33W11624204 Whirlpool Screw
34Cord, Service
35549193 Whirlpool Refrigerator Power Clamp
36Clamp
378316810 Whirlpool Refrigerator Drain Tube
38488946 Whirlpool Air Conditioner Clamp
39Tube, Rail Cover (White)
39Tube, Rail Cover (Golden Harvest)
39Tube, Rail Cover (Almond)
39Tube, Rail Cover (Platinum)
39Tube, Rail Cover (Toast)
40Screw
