ET14AKXSW01 05 – COMPARTMENT SEPARATOR AND CONTROL

ET14AKXSW01 05 – COMPARTMENT SEPARATOR AND CONTROL

Written by

in

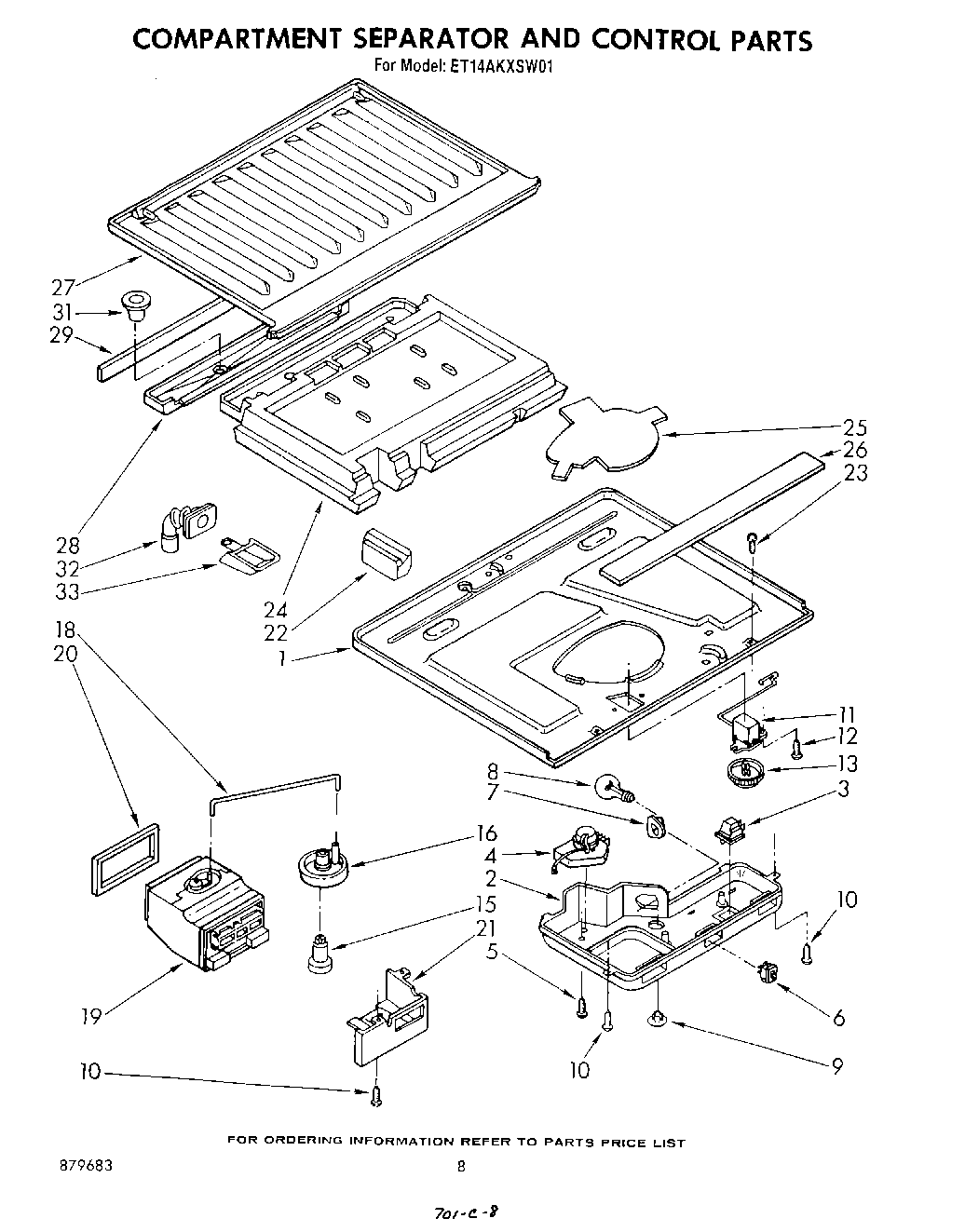

ET14AKXSW01 05 – COMPARTMENT SEPARATOR AND CONTROL

Products

PositionProduct
1Bottom, Compartment Separator
2Box, Control
3W11384469 Whirlpool Door Switch
4Defrost Timer
5WP487353 Whirlpool Refrigerator Screw
6WP938213 Whirlpool Refrigerator Power Switch
74387478 Whirlpool Refrigerator Light Socket
8W11679940 Whirlpool Refrigerator Light Bulb Assembly
9940014 Whirlpool Refrigerator Primary Button Plug
10W11624204 Whirlpool Screw
11WP819470 Whirlpool Refrigerator Thermostat
12Screw, 8 x 3/8
13Knob, Thermostat
15Retainer, Knob
16Knob, Air Control
18Rod, Connecting
19Air Diffuser
20Gasket, Air Diffuser
21Cover, Air Diffuser
22Rear Corner Block (2)
23WP488163 Whirlpool Refrigerator Screw
24Insulation, Compartment Separator
25Heat Shield
26Center Rail, Seal Strip
27Top, Compartment Separator
28Drain Pan
29Gasket, Drain Pan
31Drain Insert
32Fitting, Drain
33Cup, Drain
