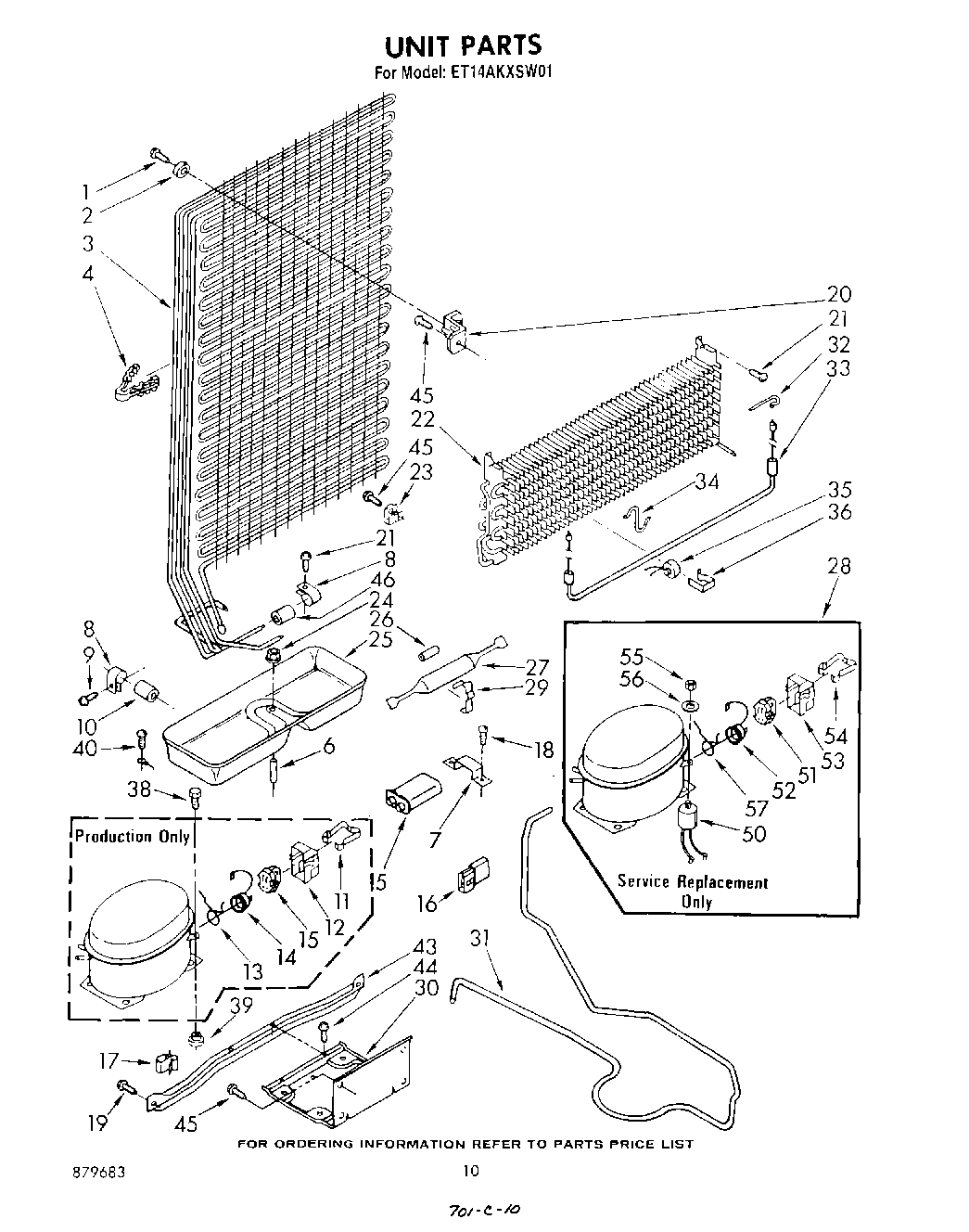

ET14AKXSW01 06 – UNIT

Products

Position	Product
1	Screw, 8 x 7/8
2	Bumper, Rubber
3	Condenser & Precooler Assembly
4	Clip, Tube
5	Running Capacitor
6	Spacer
7	WP43449 Whirlpool Bracket
8	Clamp Tube
9	WPW10141625 Whirlpool Refrigerator Screw Assembly
10	Dampener
12	Terminal Cover
13	Overload
16	WP717253 Whirlpool Dishwasher Connector
17	W10812038 Whirlpool Refrigerator Clip
18	WP489128 Whirlpool Refrigerator Screw
19	489340 Whirlpool Refrigerator Screw
20	Condenser Bracket (Top)
21	W11624204 Whirlpool Screw
22	Evaporator
23	4386951 Whirlpool Refrigerator Clip
24	285002 Whirlpool Nut
25	Tray, Evaporator
26	Restrictor Sleeve
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
29	Drier Clamp
30	Unit Mounting Plate
31	Exchanger, Heat
32	Clip, Heater (2)
33	Heater, Defrost
34	Support, Heater
35	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
36	Clamp
39	876811 Whirlpool Grommet
40	303776 Whirlpool Dishwasher Screw
43	Unit Mounting Rail
44	WP965173 Whirlpool Dishwasher Screw
45	WP489069 Whirlpool Compactor Screw
46	Dampener
50	Capacitor
51	WP2262181 Whirlpool Refrigerator Start Relay
52	Overload
53	Cover, Terminal
54	Strap
55	Nut
56	Washer
57	978030 Whirlpool Refrigerator Valve
57	WP978025 Whirlpool Refrigerator Valve
57	VALVE, ACCESS (5/8“)
57	VALVE, ACCESS (1/2“)
57	978026 Whirlpool Refrigerator Primary Valve
57	876764 Whirlpool Refrigerator Primary Valve
57	Overload Spring
57	978027 Whirlpool Refrigerator Primary Valve
