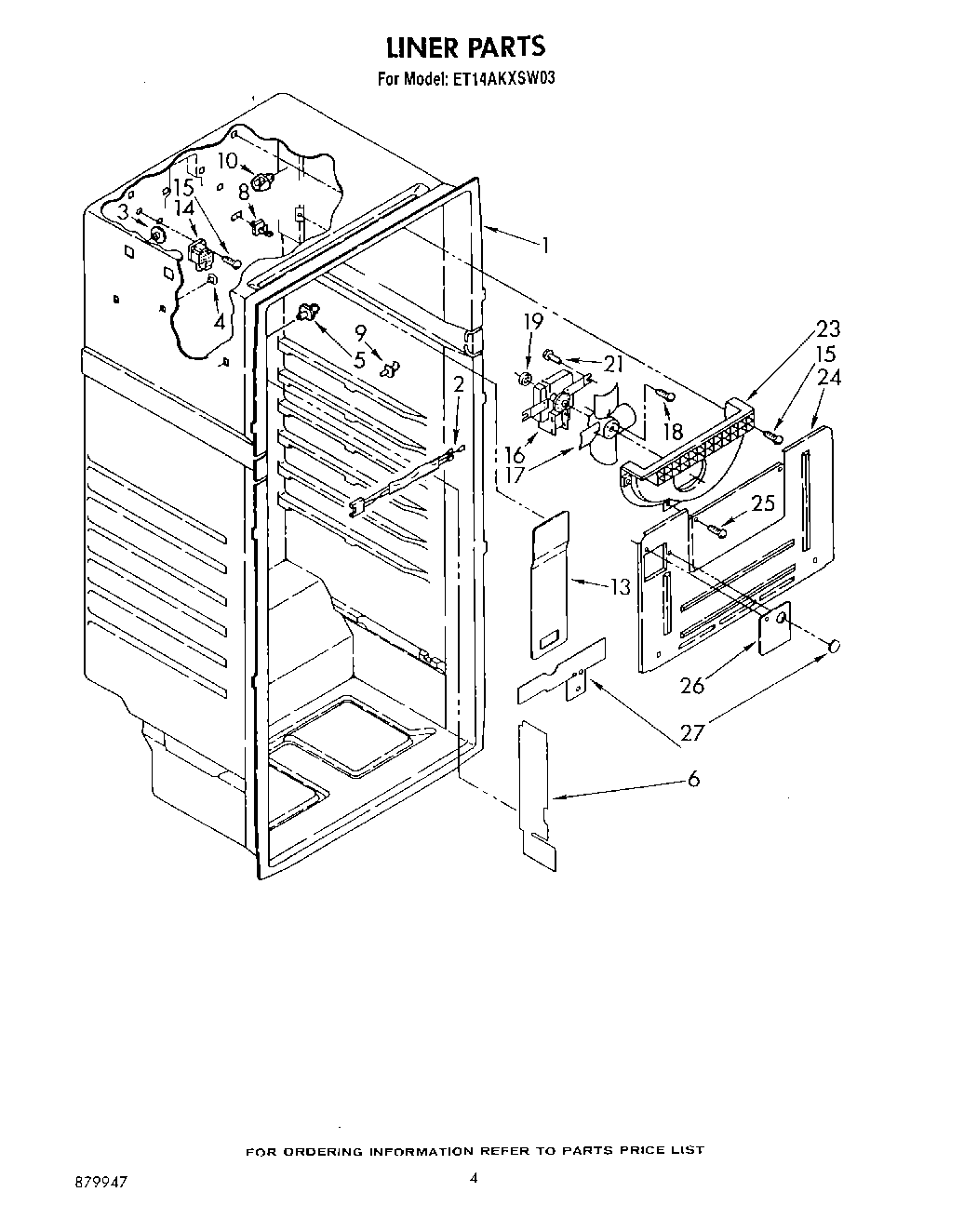

ET14AKXSW03 03 – LINER

ET14AKXSW03 03 – LINER

Written by

in

ET14AKXSW03 03 – LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Wiring, Fan Motor
3Hole Plug (2)
4WP941839 Whirlpool Refrigerator Button Plug
5Stud, Front R.S.
6Side, Electric Shield
7Top, Electric Shield
8Stud, Evaporator (2)
9Stud, Support
10819091 Whirlpool Refrigerator Shelf Stud
13Cover, Air Duct
14Terminal Block, Multiple
15WP489478 Whirlpool Refrigerator Screw
15SCREW
16482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
17WP1100938 Whirlpool Refrigerator Fan Blade
18WP487887 Whirlpool Refrigerator Screw
19Fan Grommet (2)
20Spacer, Fan Motor (2)
21Screw (2)
23Scroll, Fan
24Evaporator Cover
25WP488729 Whirlpool Refrigerator Door Screw
26WP2217784 Whirlpool Refrigerator Cover
27Hole Plug
