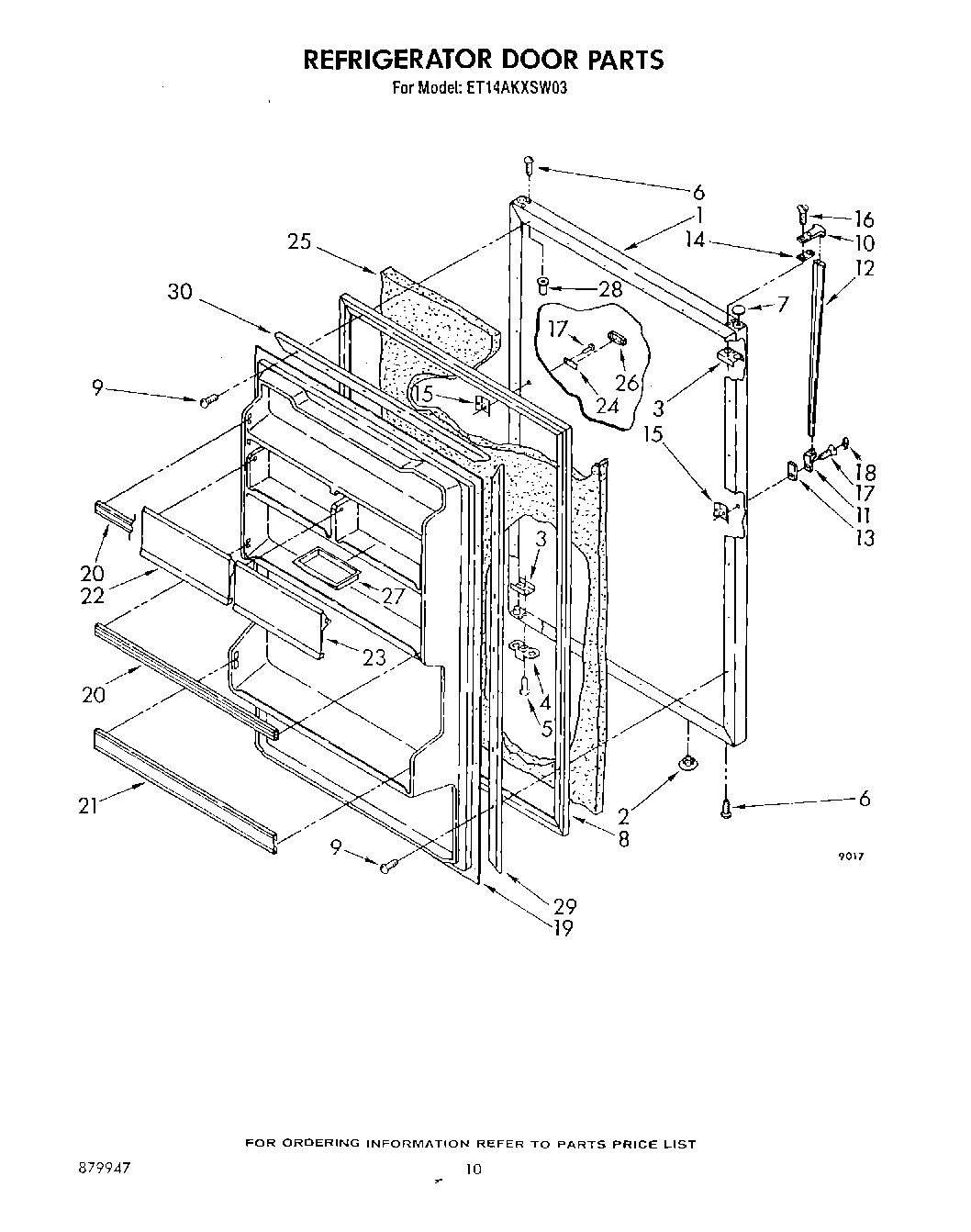

ET14AKXSW03 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

ET14AKXSW03 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

ET14AKXSW03 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

PositionProduct
WPL LIT1120599
WPL LIT1118724
WPL LIT879947
Torx Key
WPL LIT1111915
1Panel, Refrigerator Door (Toast)
1Panel, Refrigerator Door (Platinum) (Also Order Item 21)
1Panel, Refrigerator Door (Also Order Item 27) (Almond)
1Panel, Refrigerator Door (Also Order Item 27) (White)
1Panel, Refrigerator Door (Also Order Item 27) (Golden Harvest)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6Screw (Repair)
7Hole Plug (Toast)
7Hole Plug (Almond)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Platinum)
82188445A Whirlpool Refrigerator Door Gasket Seal
9WP489069 Whirlpool Compactor Screw
10WP2191883 Whirlpool Refrigerator Handle Endcap
11WP2183139 Whirlpool Refrigerator Handle End Cap
12Handle, Center
12Handle, Center (Golden Harvest)
13Shim, Handle End
14Spa
15WP939101 Whirlpool Refrigerator Plate
16WP488920 Whirlpool Refrigerator Screw
17WP488729 Whirlpool Refrigerator Door Screw
18WP1101634 Whirlpool Refrigerator Cover
19Interior Door Panel
20Trim, Door (Top) (2)
21Trim, Door
22Compartment, Utility Door
23Compartment, Butter Door
24Clip, Medallion
26Medallion
28Cap, Hinge Sleeve (2)
29Gasket Retainer, Side (2)
3072110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
30350956 Whirlpool Spray Assembly
30350930 Whirlpool White Spray Paint
30WP72107 Whirlpool Touchup
3072017 Whirlpool Appliance Touch-Up Paint White
30799344 Whirlpool Refrigerator Paint
30Retainer, Gasket
3072113 Whirlpool Touch-Up Paint
30Leveler (Thinner)
30Almond (Uncut)
30Silicone (Spray)
30WP503695 Whirlpool Refrigerator Sealer
30876370 Whirlpool Refrigerator Insulation
30833938 Whirlpool Refrigerator Terminal
30606755 Whirlpool Refrigerator Bag
30511873 Whirlpool Refrigerator Paint
30350942 Whirlpool Spray Paint
30212643 Whirlpool Refrigerator Permagum Sealer
30WPL 72112
30Platinum (Uncut)
30Enamal, Toast (1 Qt. Uncut)
30WP505587 Whirlpool Refrigerator Sealer
30WP542638 Whirlpool Refrigerator Grease
30Toast
30Golden Harvest
3072032 Whirlpool Touch Up Paint Black
30285006 Whirlpool Spray
30Golden Harvest (Uncut)
30WPL 876029
30WPL 799833
30WPL 799832
30Enamel, Black (1 Qt. Uncut)
30CEMENT, ALUMILASTIC (1 1/4 OZ.)
30TAPE, VINYL (3/4 X 108“)
30Paint, Spray (13 Oz.) (Platinum)
