ET14AKXSW04 02 – CABINET

ET14AKXSW04 02 – CABINET

Written by

in

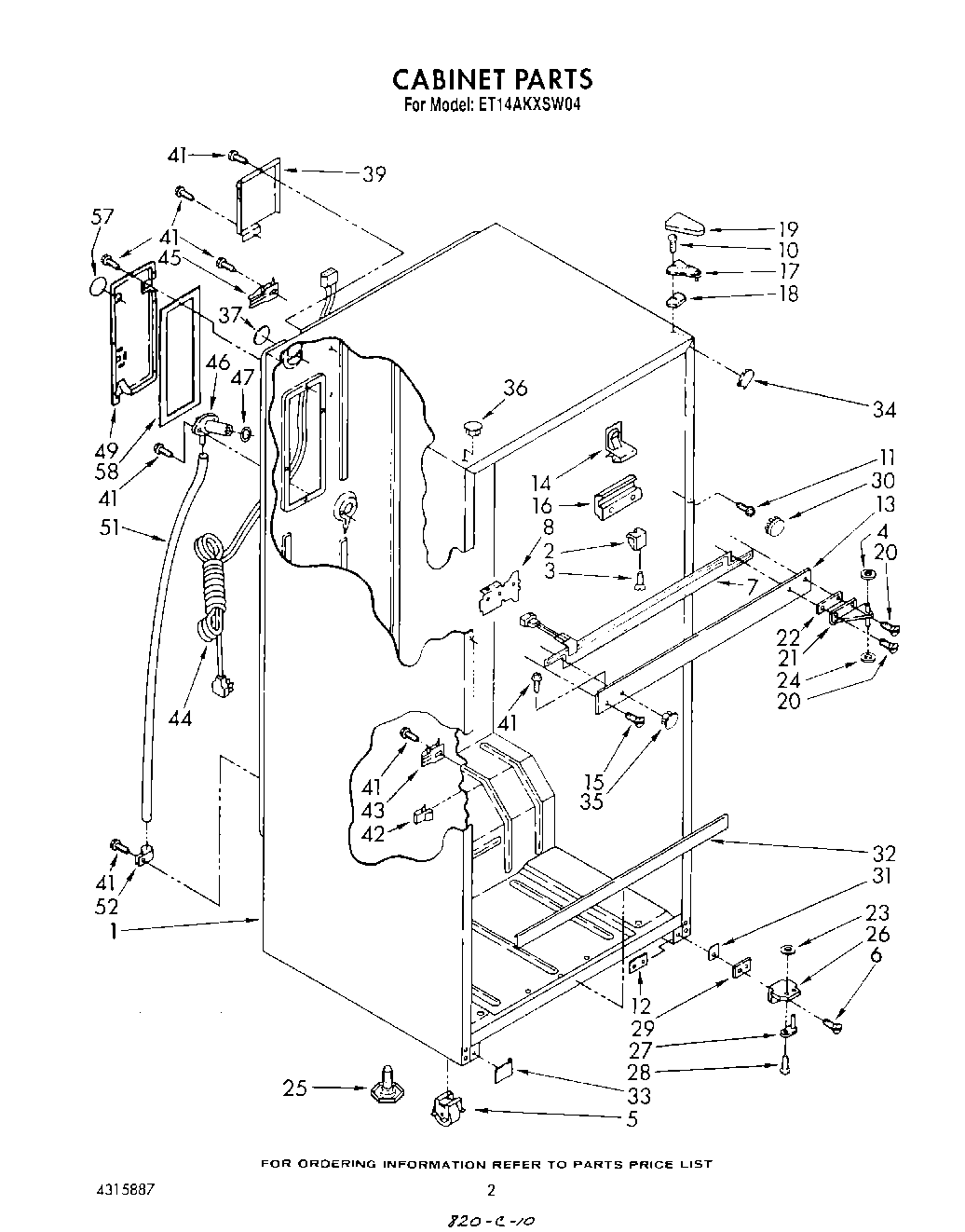

ET14AKXSW04 02 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Spacer (2)
3WP489174 Whirlpool Refrigerator Screw
4WP487802 Whirlpool Refrigerator Washer
5Roller, Front & Rear (4)
7Heater, Mullion
8Center Rail, Bracket (2)
10WP999367 Whirlpool Refrigerator Screw
11WPL 488844
12WPL 944813
13Center Rail (White)
13Center Rail (Almond)
13Center Rail (Toast)
13Center Rail (Platinum)
13Center Rail (Golden Harvest)
14Clip, Center Rail (4)
15Screw
16Center, Rail Shim (2)
17Shim, Hinge Top
18Shim, Hinge
19Hinge Cover (Golden Harvest)
191119787 Whirlpool Refrigerator Hinge Cover
19Hinge Cover (Toast)
20Screw (Repair)
20Screw
21Hinge, Center
22Shim, Hinge Center
23Washer, 7/64
24WP488296 Whirlpool Washer Refrigerator
25Leveler (2)
26Hinge Butt, Bottom
27Hinge Pin, Bottom
28Screw
29Shim, Bottom
30Hole Plug (2) (Platinum)
30Hole Plug (2) (White)
30Hole Plug (2) (Almond)
30Hole Plug (2) (Golden Harvest)
30Hole Plug (2) (Toast)
31Cover, Glider Rail (Almond)
31Cover, Glider Rail (Golden Harvest)
31Cover, Glider Rail (White)
31Cover, Glider Rail (Toast)
31Cover, Glider Rail (Platinum)
32Cover, Deck Rail (Golden Harvest)
32Cover, Deck Rail (Almond)
32Cover, Deck Rail (Toast)
32Cover, Deck Rail (Platinum)
32Cover, Deck Rail (White)
33WPL 943552
33WPL 944831
33WPL 944833
33Cover, Gl
33WPL 1100682
34WPL 1110684
34WPL 1110685
34WPL 1110686
34WPL 1110687
34WPL 1110688
35WPL 1119708
35WPL 1119710
35WPL 1119711
35Hole Plug (Almond)
35Hole Plug (White)
36Hole Plug (4) (White)
36Hole Plug (4) (Platinum)
36Hole Plug (4) (Toast)
36Hole Plug (4) (Golden Harvest)
36Hole Plug (4) (Almond)
37Hole Seal
39WPL 942845
41WP489478 Whirlpool Refrigerator Screw
41SCREW
42W10812038 Whirlpool Refrigerator Clip
43549193 Whirlpool Refrigerator Power Clamp
44Cord, Service
45Clamp
46WPL 942813
47WPL 1106507
49WPL 1106511
518316810 Whirlpool Refrigerator Drain Tube
52WPL 519405
57WPL 1120224
58WPL 1106510
