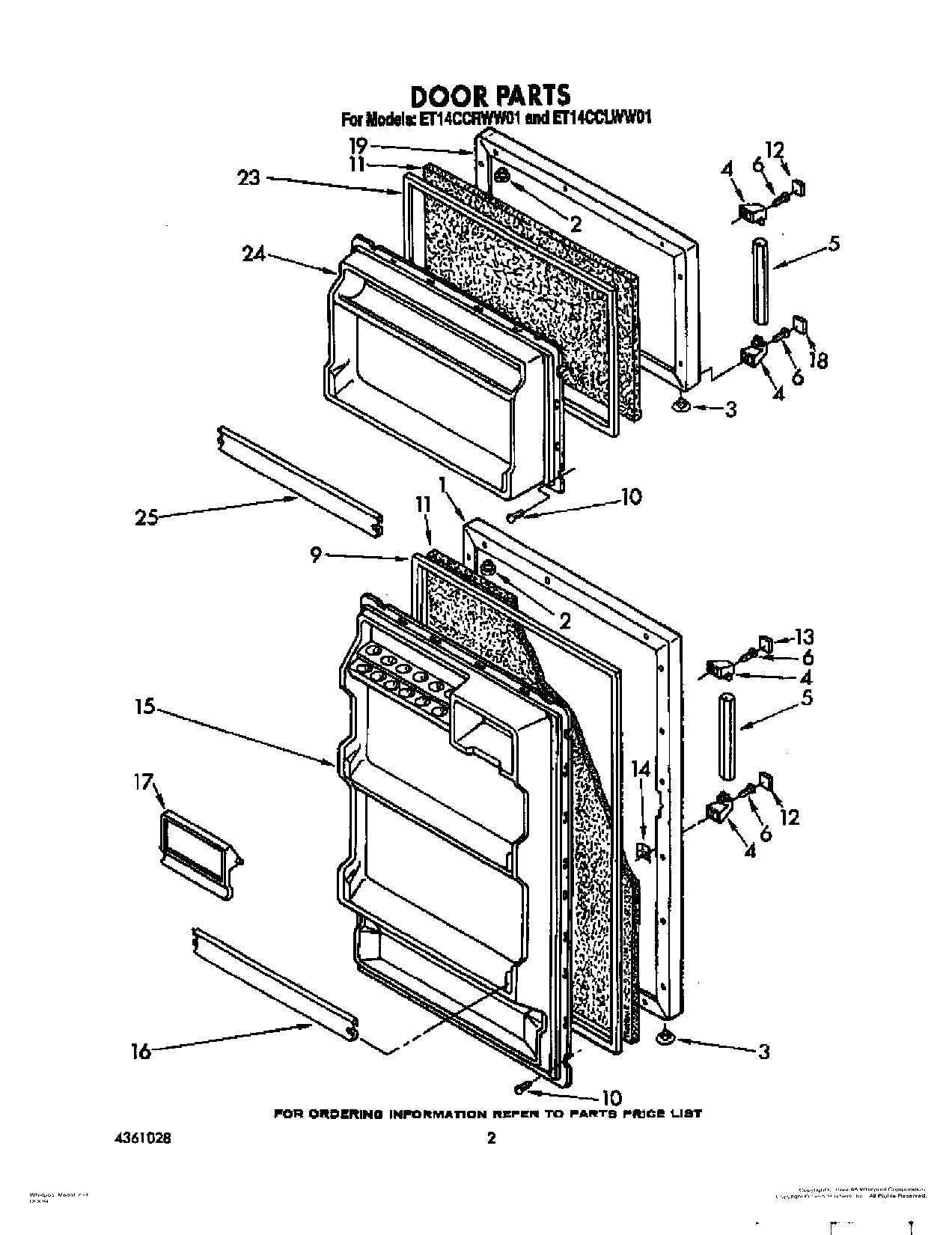

ET14CCLWN01 02 – DOOR

ET14CCLWN01 02 – DOOR

Written by

in

ET14CCLWN01 02 – DOOR

Products

PositionProduct
1Refrigerator Door Panel (Also Order Item 11) (White (R.H.))
1Refrigerator Door Panel (Also Order Item 11) (Almond (R.H.))
1Refrigerator Door Panel (Also Order Item 11) (Almond (L.H.))
1Refrigerator Door Panel (Also Order Item 11) (White (L.H.))
2Cap, Hinge Sleeve (2)
3Hole Plug (2)
3Hole Plug (2) (Almond)
4End Cap, Handle (2)
5Handle, Center
6Screw
92188445A Whirlpool Refrigerator Door Gasket Seal
10SCREW
10WP489069 Whirlpool Compactor Screw
11WPL 876029
13Cover, Screw
14WP939101 Whirlpool Refrigerator Plate
15Interior Door Panel (Refrigerator)
16Trim, Door Shelf
17Butter Door
18Insert, Screw Cover
19Freezer Door Panel (Also Order Item 11) (White (L.H.))
19Freezer Door Panel (Also Order Item 11) (Almond (R.H.))
19Freezer Door Panel (Also Order Item 11) (White (R.H.))
19Freezer Door Panel (Also Order Item 11) (Almond (L.H.))
23GASKET-DOR
24Interior Door Panel (Freezer)
25Trim, Door Shelf
