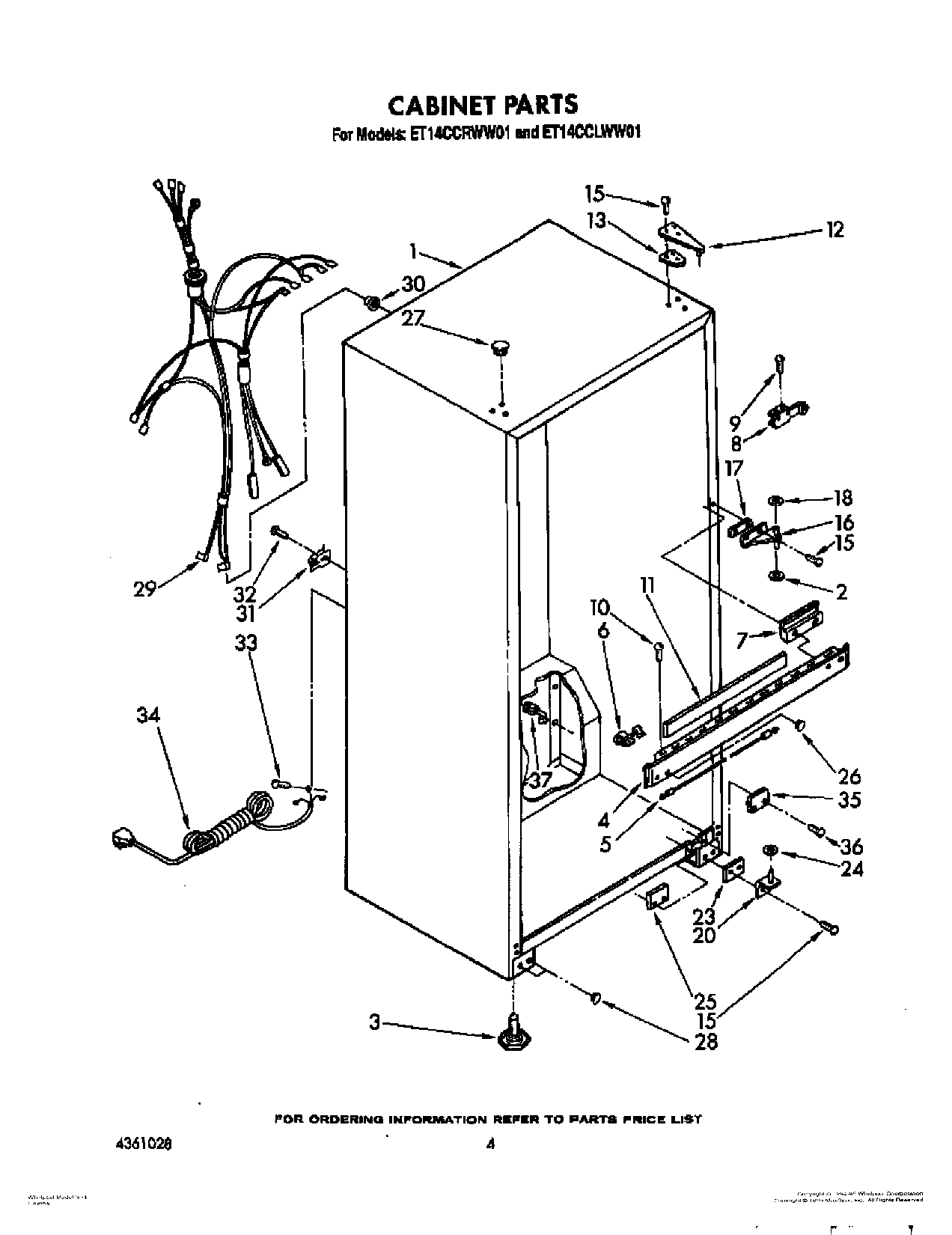

ET14CCLWN01 03 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2WP488296 Whirlpool Washer Refrigerator
3W11117769 Whirlpool Refrigerator Leveler
4Center Rail (Almond)
4Center Rail (White)
5Heater, Mullion
6Breaker, Trim Clip
7Center, Rail Shim (2)
8Bracket, Center Rail (2)
10WP488729 Whirlpool Refrigerator Door Screw
11Seal Strip, Center Rail
12Shim, Hinge Top
13Shim, Hinge
15Screw
16Hinge, Center
17Shim, Hinge Center
18WP487802 Whirlpool Refrigerator Washer
20Hinge, Bottom L.H.
20Hinge, Bottom R.H.
23Shim, Bottom Hinge
24WP487576 Whirlpool Washer
25Tap Plate, Bottom
26Hole Plug (Almond)
26Hole Plug (White)
27Hole Plug (2) (White)
27Hole Plug (2) (Almond)
28Hole, Plug (2) (Almond)
28WPL 941416
29Cabinet, Wiring Assembly
30Grommet, Wiring
31Clamp
32WP489478 Whirlpool Refrigerator Screw
33Screw, 8-32 x 3/8
34Cord, Service
35Tube, Rail Cover (Almond)
35Tube, Rail Cover (White)
36Screw
37Bushing, Strain Relief
