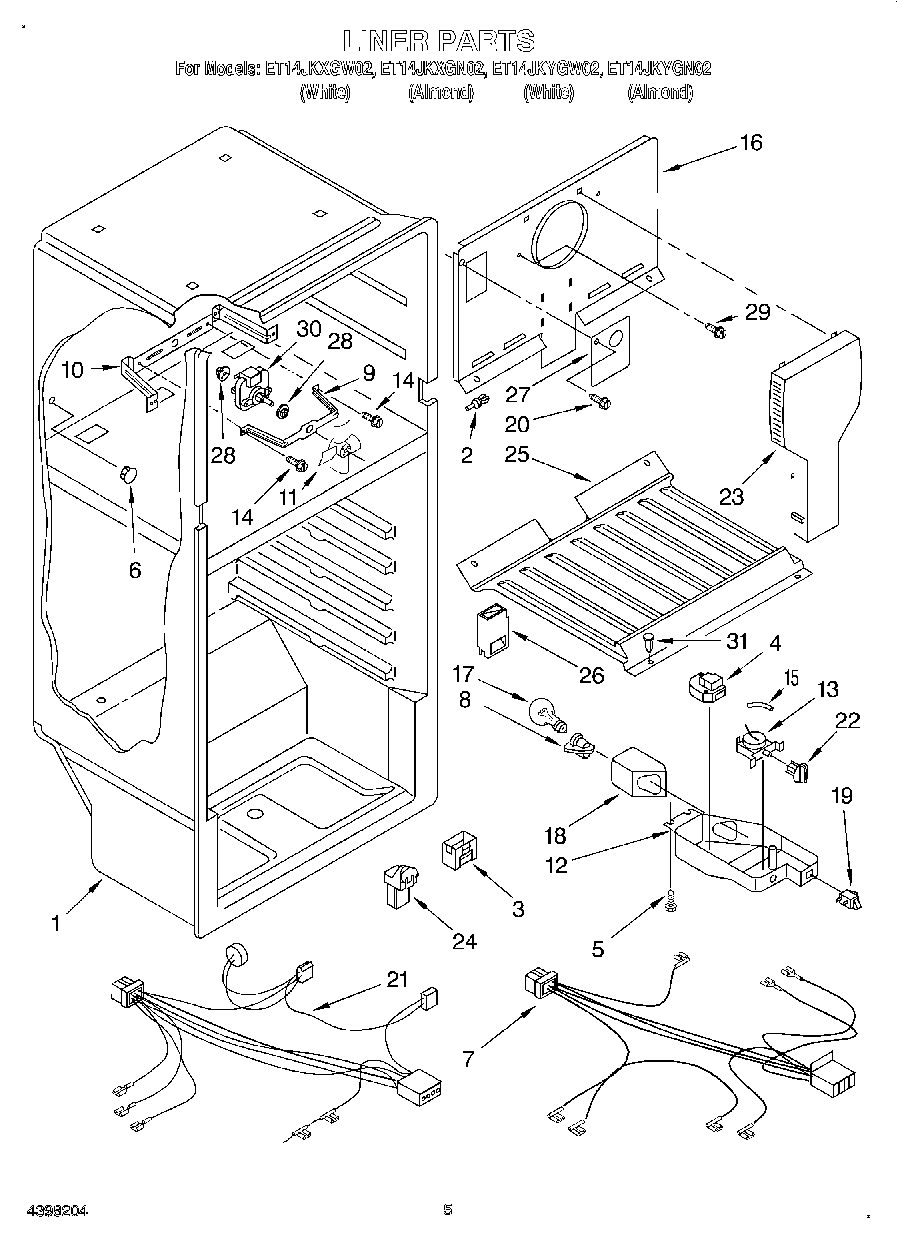

ET14JKXGW02 03 – LINER, LIT/OPTIONAL

ET14JKXGW02 03 – LINER, LIT/OPTIONAL

Written by

in

ET14JKXGW02 03 – LINER, LIT/OPTIONAL

Products

Position	Product
	Torx Key
	W11729596 Whirlpool Ice Maker Field Install Kit
	WPL LIT2192184
	Service & Wiring Sheet
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	WPL LIT2196755
	WPL LIT677971
1	Liner (Not A Serviceable Part)
2	939962 Whirlpool Refrigerator Rivet
3	Cover, Air Diffuser
4	WP2183400 Whirlpool Defrost Timer
5	WP489174 Whirlpool Refrigerator Screw
6	WP941839 Whirlpool Refrigerator Button Plug
7	2176927 Whirlpool Refrigerator Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	WPW10180172 Whirlpool Refrigerator Bracket
10	Fan Mounting Bracket
11	Fan Blade
12	2215213 Whirlpool Refrigerator Control Box
13	WPW10567140 Whirlpool Refrigerator Thermostat
14	303776 Whirlpool Dishwasher Screw
15	WP2196003 Whirlpool Refrigerator Bar Riser
16	Cover, Evaporator
17	RANGE ONLY 40W 120V APPL BULB
18	W11034434 Whirlpool Refrigerator Light Lens
19	W11384469 Whirlpool Door Switch
20	WP489478 Whirlpool Refrigerator Screw
21	WP2192096 Whirlpool Refrigerator Wire Harness
22	WP2202885 Whirlpool Refrigerator Thermal Knob
23	Air Tower
24	Hood And Foil Assembly
25	Freezer Floor
26	Air Diffuser
27	WP2217784 Whirlpool Refrigerator Cover
28	WP2264462 Whirlpool Refrigerator Grommet
29	WP489474 Whirlpool Refrigerator Screw
30	WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
31	350942 Whirlpool Spray Paint
31	212643 Whirlpool Refrigerator Permagum Sealer
31	WPL 876029
31	Almond (Uncut)
31	Door Reversal Instructions
31	WP72107 Whirlpool Touchup
31	799344 Whirlpool Refrigerator Paint
31	72017 Whirlpool Appliance Touch-Up Paint White
31	511873 Whirlpool Refrigerator Paint
31	606755 Whirlpool Refrigerator Bag
31	WPL 799833
31	WPL 799832
31	285006 Whirlpool Spray
31	72032 Whirlpool Touch Up Paint Black
31	TAPE, VINYL (3/4 X 108“)
31	CEMENT, ALUMILASTIC (1 1/4 OZ.)
31	WP542638 Whirlpool Refrigerator Grease
31	WP505587 Whirlpool Refrigerator Sealer
31	WP489115 Whirlpool Refrigerator Rivet
31	WP503695 Whirlpool Refrigerator Sealer
31	876370 Whirlpool Refrigerator Insulation
31	833938 Whirlpool Refrigerator Terminal
31	350930 Whirlpool White Spray Paint
31	350956 Whirlpool Spray Assembly
