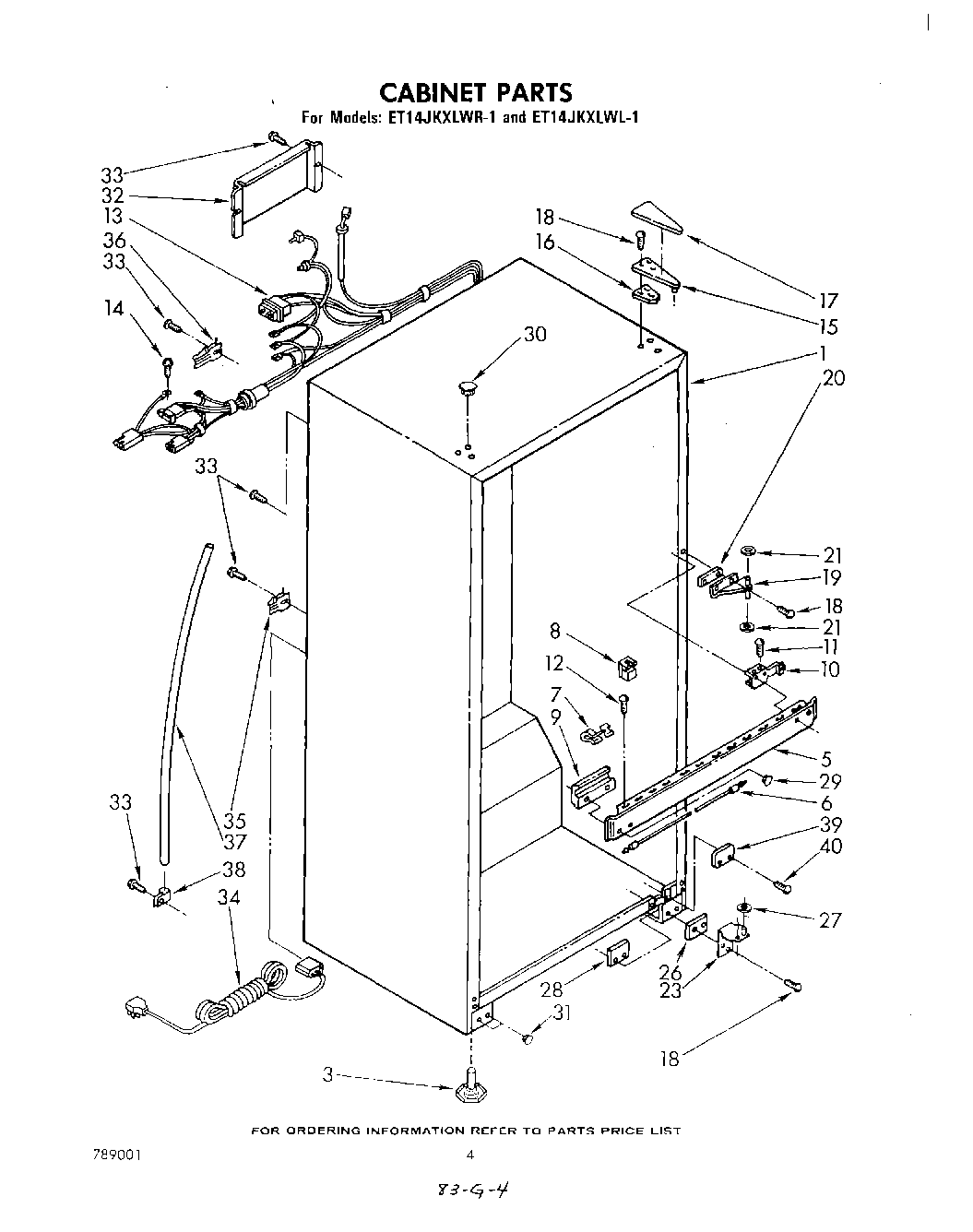

ET14JKXLWL1 03 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
3	W11117769 Whirlpool Refrigerator Leveler
4	Roller, Front & Rear (4)
5	Center Rail (New Avocado)
5	Center Rail (Coffee)
5	Center Rail (Golden Harvest)
5	Center Rail (Almond)
5	Center Rail (White)
6	WPL 938278
7	Breaker, Trim Clip
8	Spacer (2)
9	Center, Rail Shim (2)
10	Bracket, Center Rail (2)
12	WP488729 Whirlpool Refrigerator Door Screw
13	Cabinet, Wiring Assembly
14	WP489128 Whirlpool Refrigerator Screw
15	Hinge, Top
16	Shim, Hinge
17	Hinge Cover (New Avocado)
17	Hinge, Cover (Coffee)
17	1119787 Whirlpool Refrigerator Hinge Cover
17	Hinge Cover (Golden Harvest)
18	Screw (Repair)
18	WP999367 Whirlpool Refrigerator Screw
19	Hinge, Center
20	Shim, Hinge Center
21	WP487802 Whirlpool Refrigerator Washer
23	Hinge, Bottom L.H.
23	Hinge, Bottom R.H.
26	Shim, Bottom Hinge
27	WP487576 Whirlpool Washer
28	Tap Plate, Bottom
29	Hole Plug (2)
29	Hole Plug (2) (Golden Harvest)
29	Hole Plug (2) (Coffee)
29	Hole Plug (2) (Almond)
29	WPL 940090
30	Hole Plug (2) (Almond)
30	Hole Plug (Coffee)
30	Hole Plug (New Avocado)
30	Hole Plug (2) (White)
30	Hole Plug (2) (Golden Harvest)
31	Plug Button (2) (Coffee)
31	Plug Button (2) (New Avocado)
31	WPL 941416
31	Hole Plug (2) (Golden Harvest)
31	Hole, Plug (2) (Almond)
32	Cover, Wiring
33	W11624204 Whirlpool Screw
34	Cord, Service
35	549193 Whirlpool Refrigerator Power Clamp
36	Clamp
37	8316810 Whirlpool Refrigerator Drain Tube
38	488946 Whirlpool Air Conditioner Clamp
39	Tube, Rail Cover (White)
39	Tube, Rail Cover (Golden Harvest)
39	Tube, Rail Cover (Almond)
39	WPL 935710
39	Tube, Rail Cover (Coffee)
40	Screw
