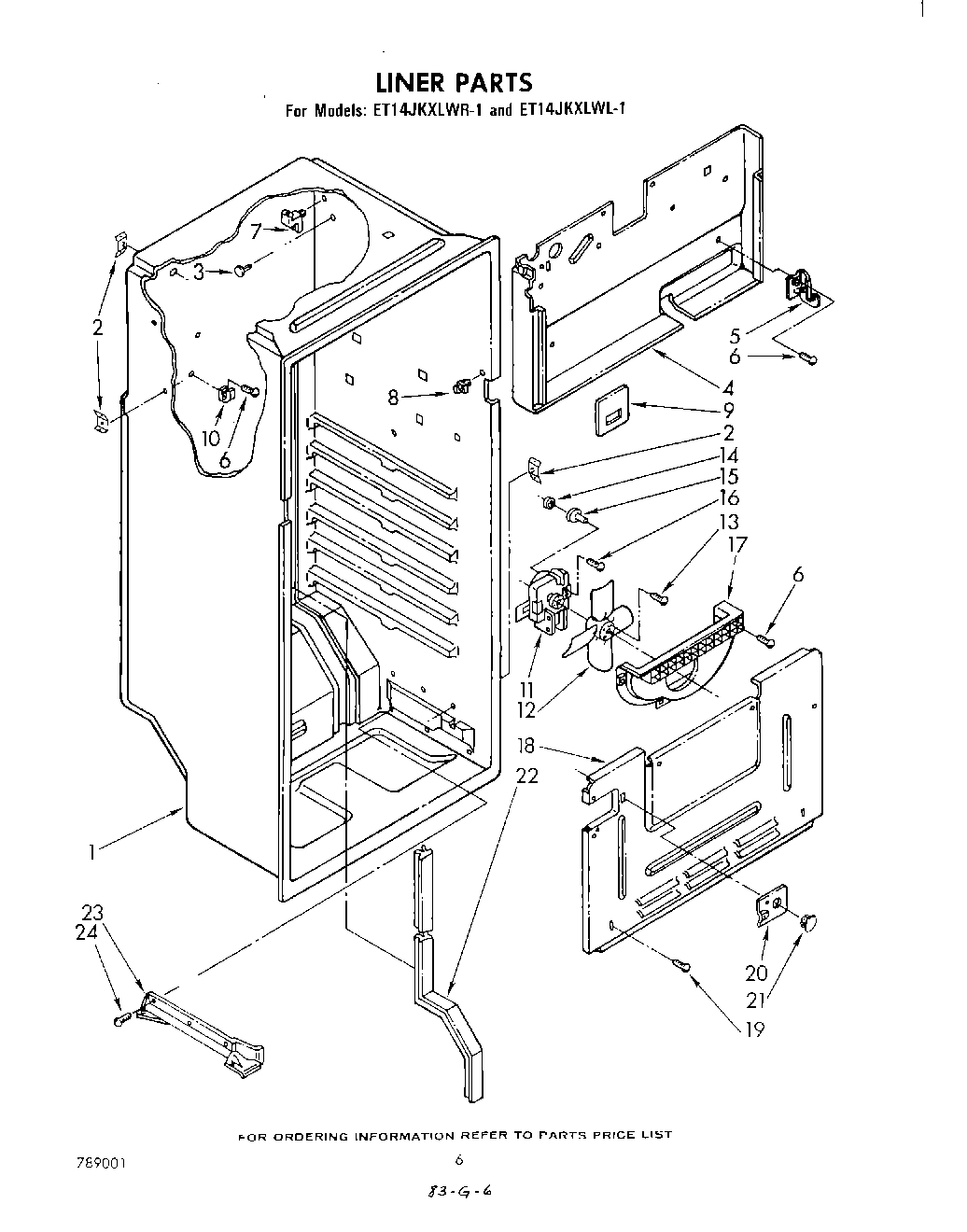

ET14JKXLWL1 04 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP939101 Whirlpool Refrigerator Plate
3	WP941839 Whirlpool Refrigerator Button Plug
4	Heat Shield
5	Evaporator Support (2)
6	W11624204 Whirlpool Screw
7	4388405 Whirlpool Refrigerator Shelf Stud
8	Stud Hook (2)
9	Cover, Air Duct
10	Bracket, Wire Receptacles
11	482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
12	WP1100938 Whirlpool Refrigerator Fan Blade
13	WP487887 Whirlpool Refrigerator Screw
14	Grommet
15	Spacer, Fan Motor (2)
16	Screw (2)
17	Fan Scroll
18	Evaporator Cover
19	WP488729 Whirlpool Refrigerator Door Screw
20	Hole Cover
21	Hole Plug
22	Cover Tube, Rear
23	Cover Tube, Bottom
24	W11693756 Whirlpool Screw Assembly
