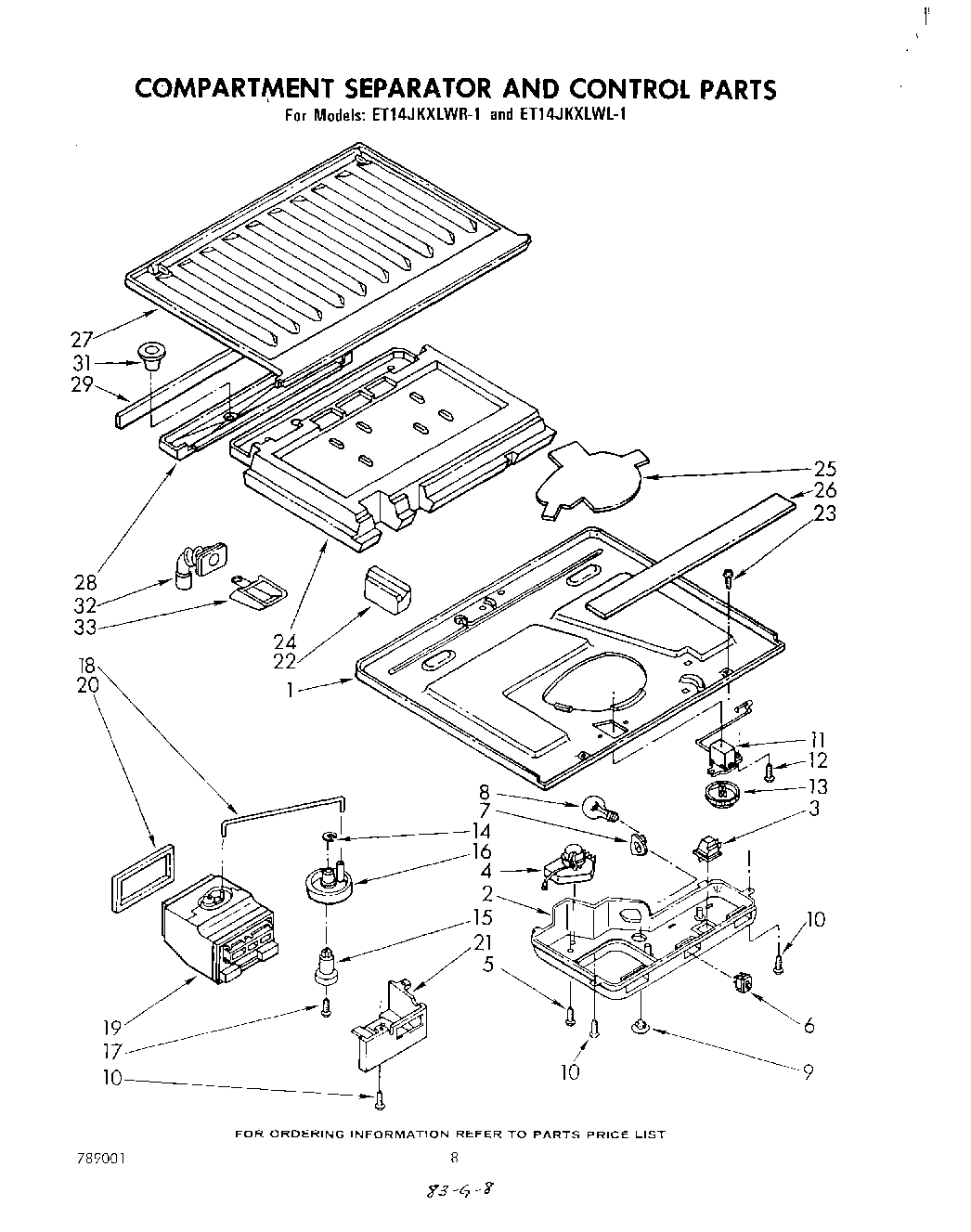

ET14JKXLWL1 05 – COMPARTMENT SEPARATOR AND CONTROLadmin2025-04-26T11:00:15+00:00ET14JKXLWL1 05 – COMPARTMENT SEPARATOR AND CONTROL
Products
| Position | Product |
|---|
| 1 | Bottom, Compartment Separator |
| 2 | Box, Control |
| 3 | W11384469 Whirlpool Door Switch |
| 4 | Defrost Timer |
| 5 | WP487353 Whirlpool Refrigerator Screw |
| 6 | WP938213 Whirlpool Refrigerator Power Switch |
| 7 | 4387478 Whirlpool Refrigerator Light Socket |
| 8 | RANGE ONLY 40W 120V APPL BULB |
| 9 | 940014 Whirlpool Refrigerator Primary Button Plug |
| 10 | W11624204 Whirlpool Screw |
| 11 | WP819470 Whirlpool Refrigerator Thermostat |
| 12 | Screw, 8 x 3/8 |
| 13 | Knob, Thermostat |
| 14 | Lockwasher |
| 15 | Spacer, Knob |
| 16 | Knob, Air Control |
| 17 | WP488163 Whirlpool Refrigerator Screw |
| 18 | Connecting Rod |
| 19 | Air Diffuser |
| 20 | Gasket, Air Diffuser |
| 21 | Cover, Air Diffuser |
| 22 | Rear Corner Block (2) |
| 24 | Insulation, Compartment Separator |
| 25 | Heat Shield |
| 26 | Center Rail, Seal Strip |
| 27 | Top, Compartment Separator |
| 28 | Drain Pan |
| 29 | Gasket, Drain Pan |
| 31 | Drain Insert |
| 32 | Fitting, Drain |
| 33 | Cup, Drain |
