ET14NKYEW00 05 – DOOR, LIT/OPTIONAL

ET14NKYEW00 05 – DOOR, LIT/OPTIONAL

Written by

in

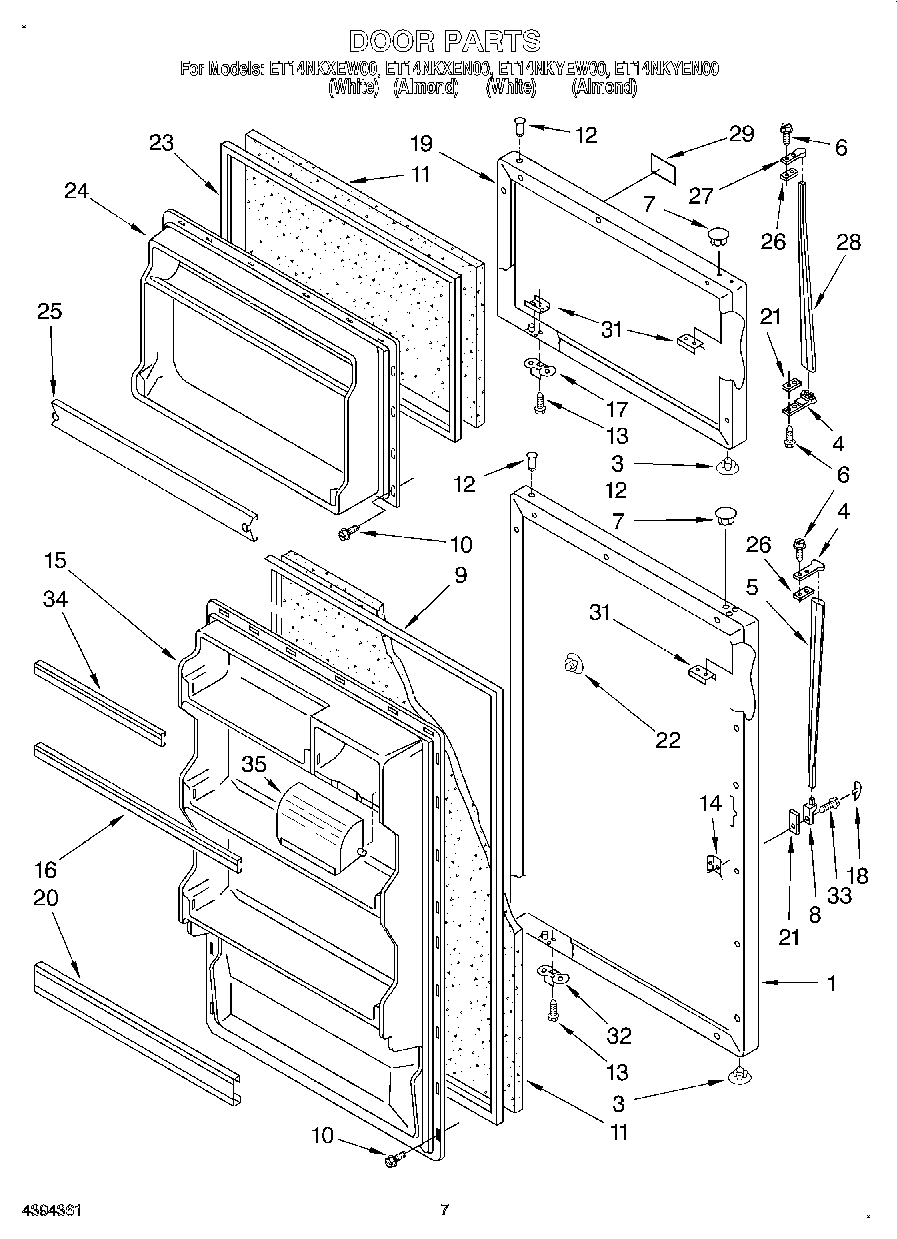

ET14NKYEW00 05 – DOOR, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2190788
WPL LIT2191081
WPL LIT2178980
1Refrigerator Door Panel (Also Order Item 11) (Almond)
1Refrigerator Door Panel (Also Order Item 11) (White)
3Hole Plug (2)
3Hole Plug (2) (Almond)
5Handle, Center (Almond)
5WP2162555 Whirlpool Refrigerator White Door Handle
6WP488920 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
8819342 Whirlpool Refrigerator Endcap Kit
92188445A Whirlpool Refrigerator Door Gasket Seal
10Screw
12WP2183003 Whirlpool Thimble
13WP488921 Whirlpool Refrigerator Screw
14WP939101 Whirlpool Refrigerator Plate
15Interior Door Panel (Refrigerator)
16Trim, Door Shelf
17Bracket, Door Stop
18Cover, Screw (White)
18Cover, Screw (Almond)
19Freezer Door Panel (Also Order Item 11) (Almond)
19Freezer Door Panel (Also Order Item 11) (White)
20Trim, Door Shelf
21Spa
22Hole Plug, Handle (Almond)
22WP2189000 Whirlpool Refrigerator Handle Plug
23GASKET-DOR
24Interior Door Panel (Freezer)
25Trim, Door Shelf
26Shim, Handle
28Handle, Center (Almond)
29Nameplate (White Model)
31W10833053 Whirlpool Refrigerator Plate
32Bracket, Door Stop
33WP488729 Whirlpool Refrigerator Door Screw
34Trim, Door
35511873 Whirlpool Refrigerator Paint
35350942 Whirlpool Spray Paint
35212643 Whirlpool Refrigerator Permagum Sealer
35Almond (Uncut)
35WP72107 Whirlpool Touchup
35799344 Whirlpool Refrigerator Paint
3572017 Whirlpool Appliance Touch-Up Paint White
35350956 Whirlpool Spray Assembly
35WPL 2190748
3572032 Whirlpool Touch Up Paint Black
35606755 Whirlpool Refrigerator Bag
35Door Reversal Instructions
35285006 Whirlpool Spray
35WPL 876029
35WPL 799833
35Enamel, Black (1 Qt. Uncut)
35CEMENT, ALUMILASTIC (1 1/4 OZ.)
35TAPE, VINYL (3/4 X 108“)
35WP542638 Whirlpool Refrigerator Grease
35WP505587 Whirlpool Refrigerator Sealer
35WP503695 Whirlpool Refrigerator Sealer
35876370 Whirlpool Refrigerator Insulation
35833938 Whirlpool Refrigerator Terminal
35350930 Whirlpool White Spray Paint
