ET14UKXAW00 04 – UNIT

ET14UKXAW00 04 – UNIT

Written by

in

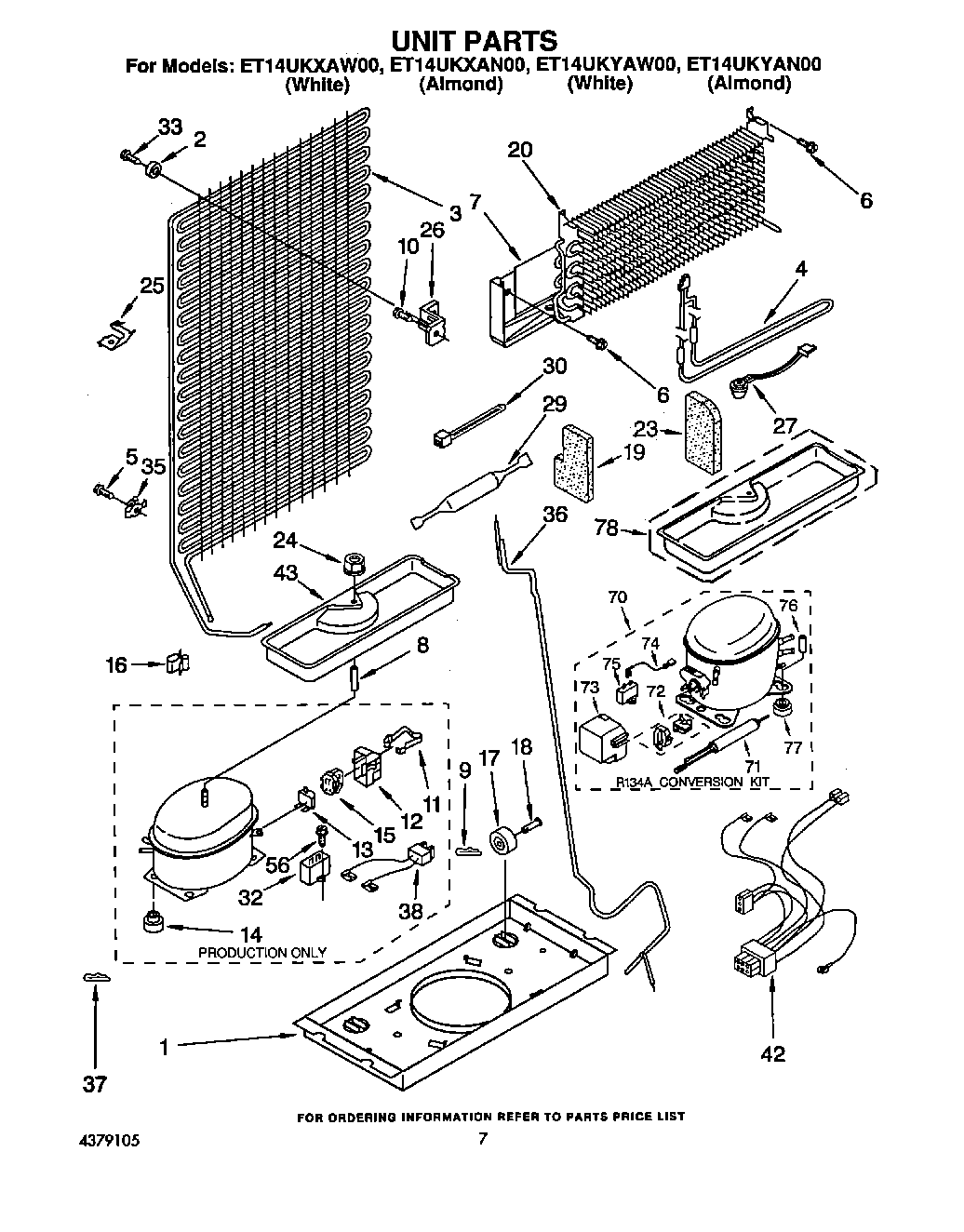

ET14UKXAW00 04 – UNIT

Products

Position	Product
1	WPW10222451 Whirlpool Refrigerator Support
2	Bumper
3	Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
5	WP965173 Whirlpool Dishwasher Screw
7	Heat Shield
8	Spacer
9	Clip-Pin
10	WP488163 Whirlpool Refrigerator Screw
11	Strap
12	Cover
13	Overload (Includes Relay)
13	Overload
14	WP2163786 Whirlpool Refrigerator Grommet
14	876811 Whirlpool Grommet
15	Start Relay (See Overload)
16	W10812038 Whirlpool Refrigerator Clip
17	4388239 Whirlpool Refrigerator Primary Cabinet Roller
18	Pin-Roller
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263919 Whirlpool Refrigerator Evaporator
24	285002 Whirlpool Nut
25	4386951 Whirlpool Refrigerator Clip
26	Bracket, Condenser
27	WP4387490 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
29	W10843121 Whirlpool Refrigerator Tube
30	Strap
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	WP489174 Whirlpool Refrigerator Screw
35	Clip, Tube
36	Heat Exchanger (Not Serviced)
37	Clip, Compressor
38	WP2172890 Whirlpool Refrigerator Wire
42	Wire Assy. Unit
56	W11693756 Whirlpool Screw Assembly
70	Compressor (Includes Items 71, 72, 73, 74, 75, 76, & 77) Also Order
70	Installation Kit
70	876765 Whirlpool Primary Mounting Kit Refrigerator
72	4387913 Whirlpool Refrigerator Primary Overload Relay
73	WP2162358 Whirlpool Refrigerator Terminal Cover
75	WP4387764 Whirlpool Run Capacitor
76	Sleeve (4) (Service Only)
77	WP4387558 Whirlpool Refrigerator Compressor Grommet
78	Evaporator Tray
78	Start Kit
78	978026 Whirlpool Refrigerator Primary Valve
78	978027 Whirlpool Refrigerator Primary Valve
78	876764 Whirlpool Refrigerator Primary Valve
78	978030 Whirlpool Refrigerator Valve
78	WP978025 Whirlpool Refrigerator Valve
78	VALVE, ACCESS (1/2“)
78	VALVE, ACCESS (5/8“)
