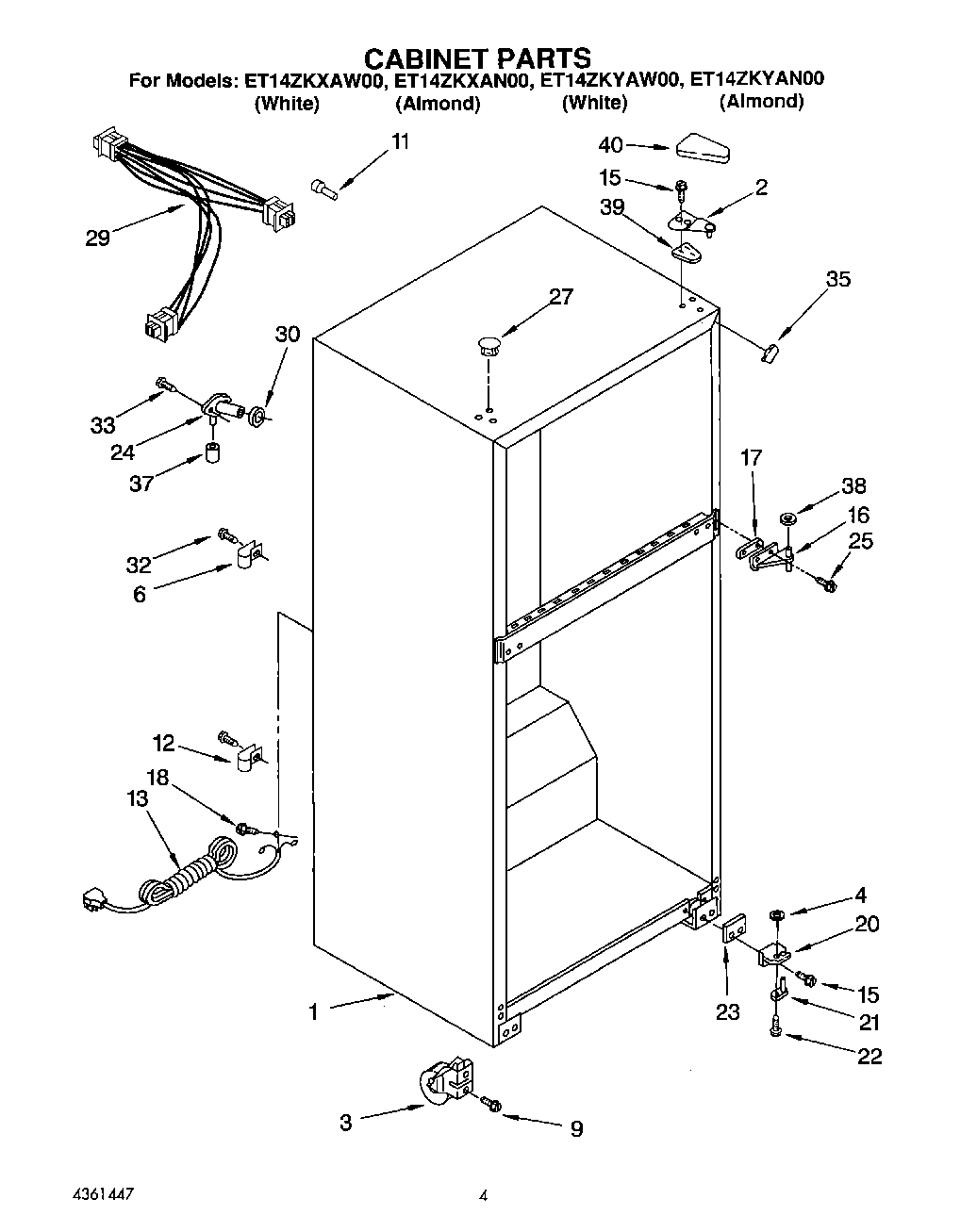

| 1 | Cabinet (Not A Serviceable Part) |
| 2 | WP2189412 Whirlpool Refrigerator Door Hinge |
| 3 | Roller-Front |
| 4 | Washer |
| 6 | WP488366 Whirlpool Refrigerator Clamp |
| 9 | Screw |
| 11 | Tube, Water Inlet |
| 12 | 549193 Whirlpool Refrigerator Power Clamp |
| 13 | Cord, Service |
| 15 | Screw |
| 16 | WP2166037 Whirlpool Refrigerator Door Hinge |
| 17 | Shim, Hinge Center |
| 20 | WP2325482 Whirlpool Bottom Hinge |
| 21 | Hinge-Pin Bott. |
| 22 | Screw 10-32 x 5/16 |
| 23 | Shim, Bottom Hinge |
| 24 | WP2196157 Whirlpool Fill Tube |
| 25 | WP999367 Whirlpool Refrigerator Screw |
| 27 | WP2151652 Whirlpool Refrigerator Button Plug |
| 27 | Hole Plug (6) (Almond) |
| 29 | Cabinet, Wiring Assembly |
| 30 | WP1106508 Whirlpool Refrigerator Gasket |
| 32 | WP489478 Whirlpool Refrigerator Screw |
| 35 | Corner Filler (Almond) |
| 35 | W10859322 Whirlpool Refrigerator Filler |
| 37 | WP487996 Whirlpool Refrigerator Cap Tube |
| 38 | WP489235 Whirlpool Refrigerator Washer |
| 39 | Shim |
| 40 | WP2213360 Whirlpool Refrigerator Cover |
| 40 | Cover, Hinge (Almond) |
