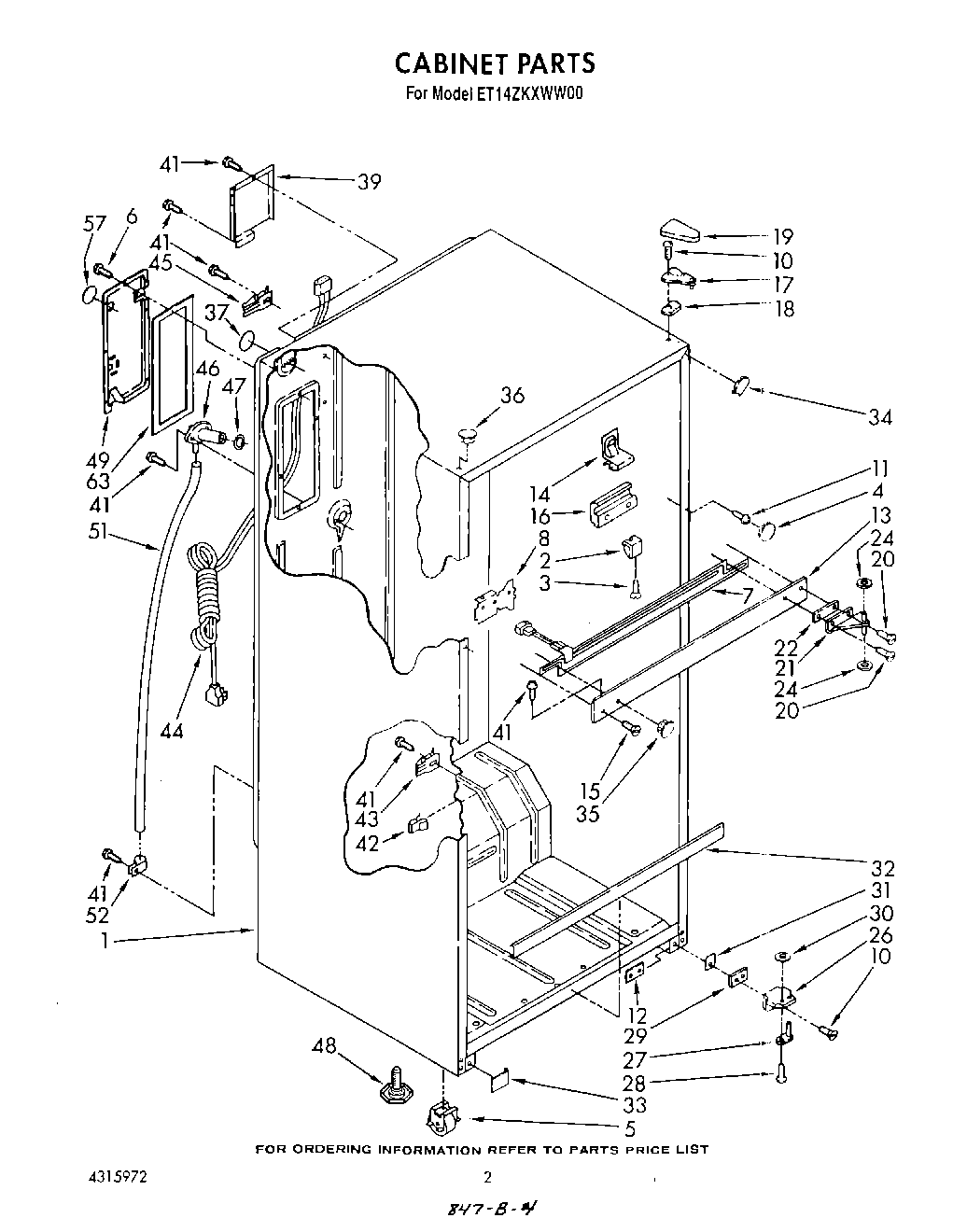

ET14ZKXWG00 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Spacer (2)
3	WP489174 Whirlpool Refrigerator Screw
4	Hole Plug (2) (Golden Harvest)
4	Hole Plug (2) (White)
4	Hole Plug (2) (Almond)
5	Roller, Front & Rear (4)
6	WP489464 Whirlpool Refrigerator Screw
7	Heater, Mullion
8	Center Rail, Bracket (2)
10	Screw
11	WPL 488844
12	Tap Plate (2)
13	Center Rail (Golden Harvest)
13	Center Rail (Almond)
13	Center Rail (White)
14	Clip, Center Rail (4)
15	Screw
16	Center, Rail Shim (2)
17	Hinge, Top
18	Shim, Hinge
19	Hinge Cover (Golden Harvest)
19	1119787 Whirlpool Refrigerator Hinge Cover
20	Screw
20	Screw (Repair)
21	Hinge, Center
22	Shim, Hinge Center
24	WP488296 Whirlpool Washer Refrigerator
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom
30	Washer, 7/64
31	Cover, Glider Rail (Golden Harvest)
31	Cover, Glider Rail (Almond)
31	Cover, Glider Rail (White)
32	Cover, Deck Rail (White)
32	Cover, Deck Rail (Golden Harvest)
32	Cover, Deck Rail (Almond)
33	WPL 944831
33	WPL 943552
33	WPL 944833
34	WPL 1110686
34	WPL 1110685
34	WPL 1110684
35	WPL 1119708
35	Hole Plug (White)
35	Hole Plug (Almond)
36	Hole Plug (4) (White)
36	Hole Plug (4) (Almond)
36	Hole Plug (4) (Golden Harvest)
37	Hole Seal
39	WPL 942845
41	SCREW
41	WP489478 Whirlpool Refrigerator Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	WPL 1106507
48	Leveler (2)
49	WPL 1106511
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
57	WPL 1120224
63	WPL 1106510
