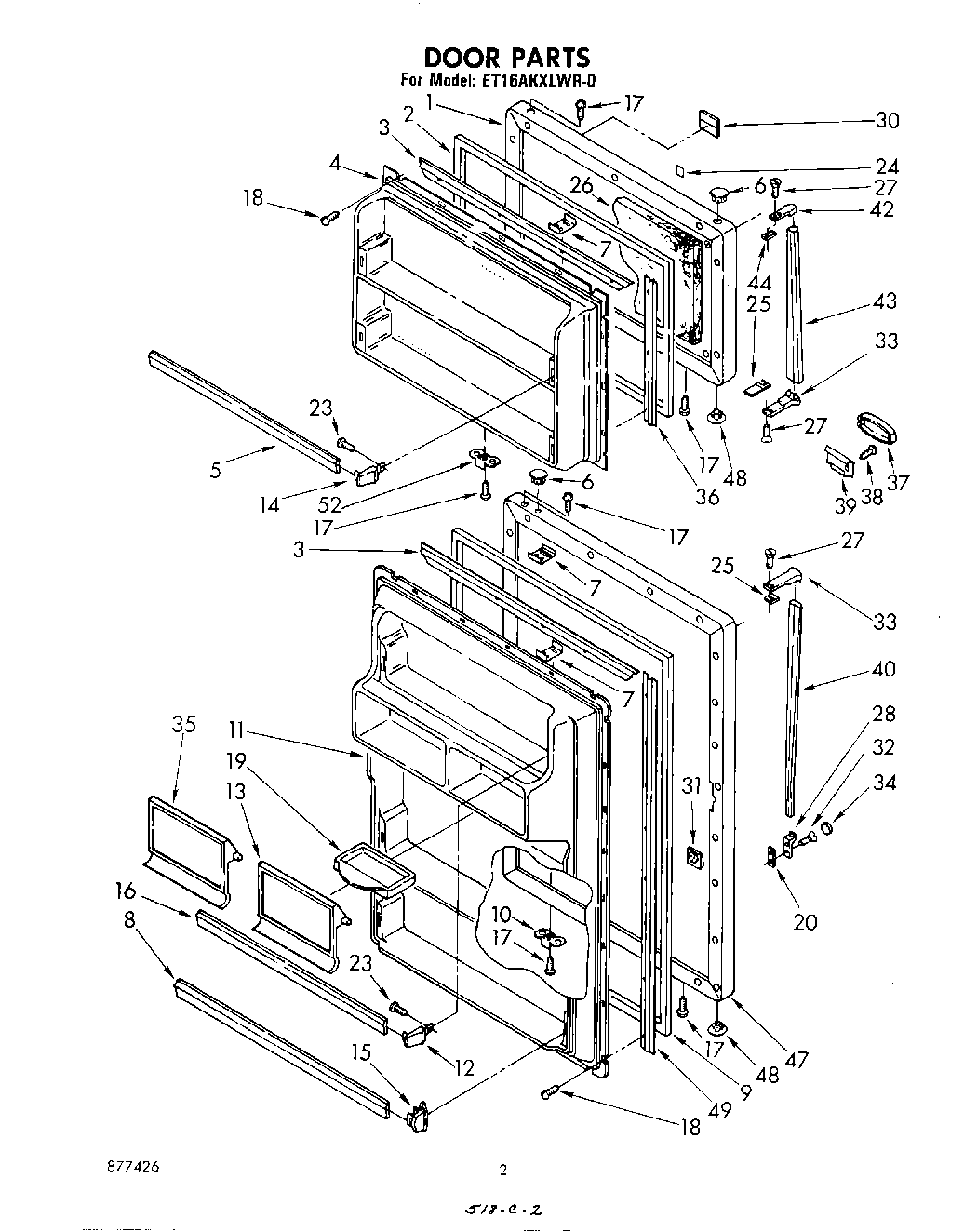

ET16AKXLWR0 02 – DOOR

Products

Position	Product
1	Door, Freezer (White)
1	Door, Freezer (New Avocado)
1	Door, Freezer (Almond)
1	Door, Freezer (Golden Harvest)
1	Door, Freezer (Coffee)
2	Gasket, Freezer Door
3	Retainer, Top & Bottom (2)
4	Panel, Interior
5	Trim, Shelf (2)
6	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
6	Hole Plug (Almond)
6	Hole Plug (Coffee)
6	Hole Plug (New Avocado)
7	W10833053 Whirlpool Refrigerator Plate
8	Trim Shelf
9	Gasket, Refrigerator Door
10	Bracket, Door Stop
11	Panel, Interior
12	Support, Door Trim (2)
13	Door, Butter
14	WPL 943135
15	Retainer, Trim (8)
16	Trim, Shelf (2)
17	Screw (Repair)
17	WP488921 Whirlpool Refrigerator Screw
18	W11624204 Whirlpool Screw
18	SCREW
20	Shim, Handle End
24	Tape Strip
25	Spa
26	WPL 876029
27	Screw (Repair)
27	WP488920 Whirlpool Refrigerator Screw
28	WP2183139 Whirlpool Refrigerator Handle End Cap
30	Nameplate
31	WP939101 Whirlpool Refrigerator Plate
32	WP488729 Whirlpool Refrigerator Door Screw
33	WP2191883 Whirlpool Refrigerator Handle Endcap
34	WP1101634 Whirlpool Refrigerator Cover
35	Door, Utility
36	Retainer Gasket Side
37	Medallion (White)
37	Medallion (Coffee)
37	Medallion (New Avocado)
37	Medallion (Almond)
37	Medallion (Golden Harvest)
39	Clip, Medallion
40	Handle, Center
42	WP2191882 Whirlpool Refrigerator Handle End Cap
43	WPL 982944
44	Shim, Handle
47	Door, Refrigerator (Almond)
47	Door, Refrigerator (New Avocado)
47	Door, Refrigerator (Golden Harvest)
47	Door, Refrigerator (Coffee)
47	Door, Refrigerator (White)
48	Hole Plug (2) (New Avocado)
48	Hole Plug (2)
48	Hole Plug (2) (Coffee)
48	Hole Plug (2) (Almond)
48	Hole Plug (2) (Golden Harvest)
49	Retainer, Gasket Side
52	Bracket, Door Stop
