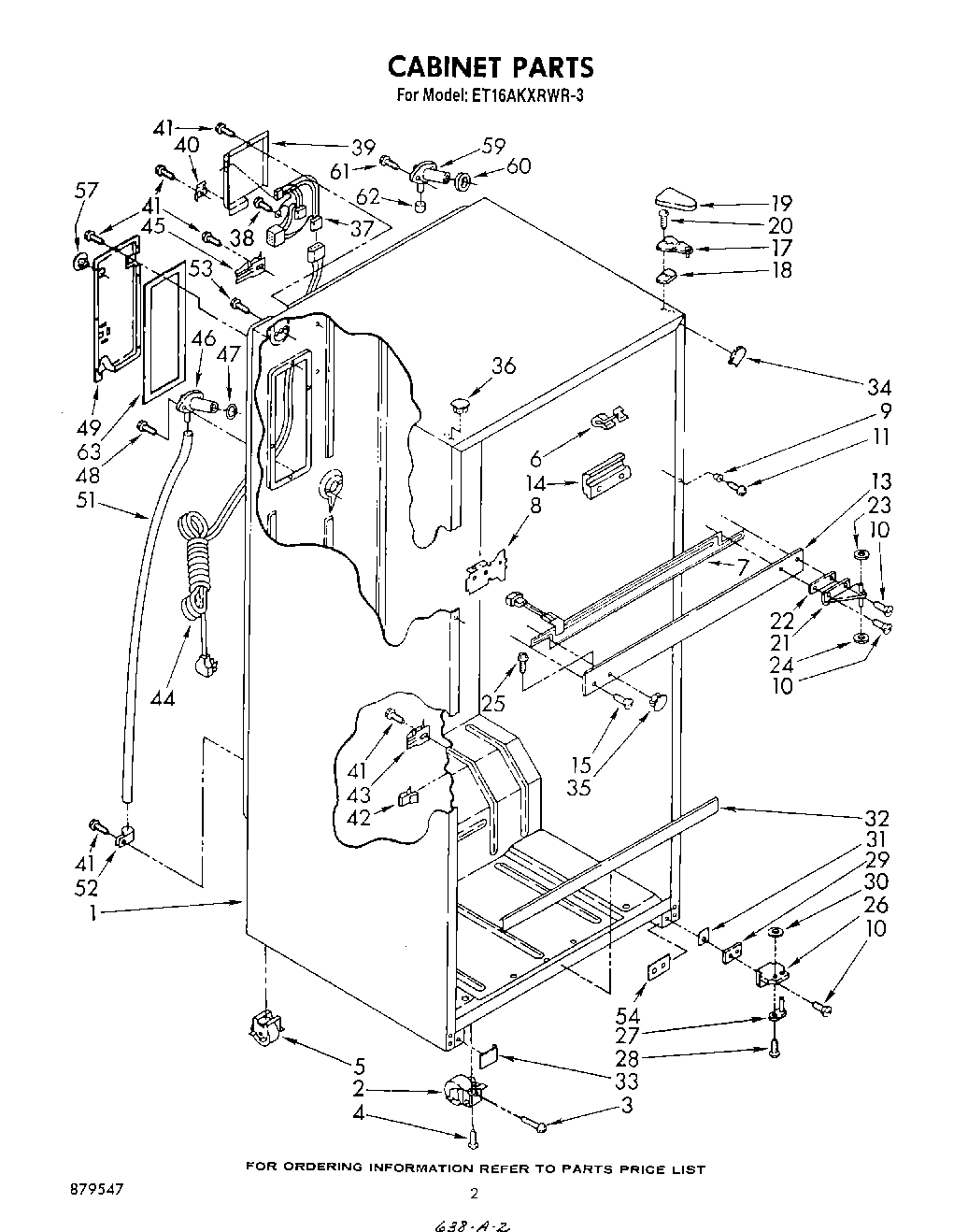

ET16AKXRWR3 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw, 5/16-24 x 1
4	Screw, 10-32 x 1/2
5	Roller, Front & Rear (4)
6	Breaker, Trim Clip
7	Heater, Mullion
8	Center Rail, Bracket (2)
9	Ferrule, Center Rail
10	Screw
11	Screw, 8-32 x 1/2
13	Center Rail (Toast)
13	Center Rail (Golden Harvest)
13	Center Rail (Almond)
13	Center Rail (Platinum)
13	Center Rail (White)
14	Center, Rail Shim (2)
15	Screw
17	Shim, Hinge Top
18	Shim, Hinge
19	1119787 Whirlpool Refrigerator Hinge Cover
19	Hinge Cover (Golden Harvest)
19	Hinge Cover (Toast)
20	Screw (Repair)
20	WP999367 Whirlpool Refrigerator Screw
21	Hinge, Center
22	Shim, Hinge Center
24	WP488296 Whirlpool Washer Refrigerator
25	WP488729 Whirlpool Refrigerator Door Screw
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom
30	WP487802 Whirlpool Refrigerator Washer
31	Cover, Glider Rail (Platinum)
31	Cover, Glider Rail (White)
31	Cover, Glider Rail (Golden Harvest)
31	Cover, Glider Rail (Almond)
31	Cover, Glider Rail (Toast)
32	Cover, Deck Rail (Golden Harvest)
32	Cover, Deck Rail (Toast)
32	Cover, Deck Rail (White)
32	Cover, Deck Rail (Platinum)
32	Cover, Deck Rail (Almond)
33	WPL 1100682
33	WPL 944833
33	WPL 944831
33	WPL 943552
33	Cover, Gl
34	WPL 1110685
34	WPL 1110688
34	WPL 1110684
34	WPL 1110686
34	WPL 1110687
35	Hole Plug (2)
35	Hole Plug (2) (Platinum)
35	Hole Plug (2) (Toast)
35	Hole Plug (2) (Almond)
35	Hole Plug (2) (Golden Harvest)
36	Hole Plug (3) (Platinum)
36	Hole Plug (2) (White)
36	Hole Plug (2) (Almond)
36	Hole Plug (2) (Golden Harvest)
36	Hole Plug (3) (Toast)
37	WPL 942844
38	WP250830 Whirlpool Refrigerator Screw
39	WPL 942845
40	WPL 944741
41	W11624204 Whirlpool Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	WPL 1106507
48	WP98165 Whirlpool Screw
49	WPL 942854
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
53	WP489069 Whirlpool Compactor Screw
54	WPL 944813
57	WPL 655411
59	WP2196157 Whirlpool Fill Tube
60	WP1106508 Whirlpool Refrigerator Gasket
62	WP487996 Whirlpool Refrigerator Cap Tube
63	WPL 1106510
