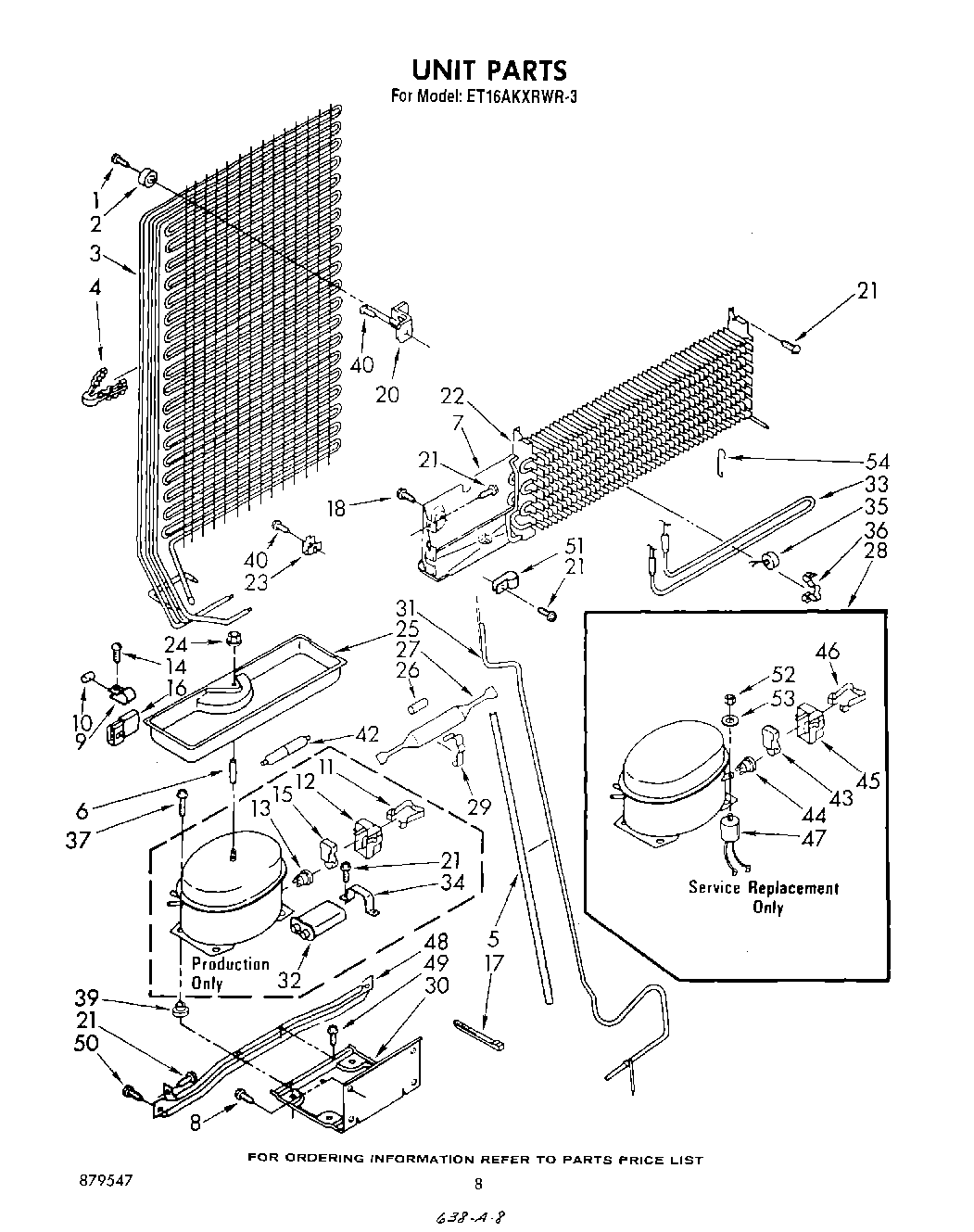

ET16AKXRWR3 07 – UNIT

Products

Position	Product
1	WP488163 Whirlpool Refrigerator Screw
2	Bumper
3	Condenser & Precooler Assembly
4	Clip, Tube (2)
5	WP2002171 Whirlpool Refrigerator Sleeve
6	Spacer
7	Heat Shield Evaporator
8	WP250830 Whirlpool Refrigerator Screw
9	Clamp Tube
10	Dampener
13	Overload
14	Screw, 8-32 x 1/2
16	WP717253 Whirlpool Dishwasher Connector
17	Strap
20	Bracket, Condenser
21	W11624204 Whirlpool Screw
22	Evaporator
23	4386951 Whirlpool Refrigerator Clip
24	285002 Whirlpool Nut
25	Evaporator Tray
26	Restrictor Sleeve
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
29	Drier Clamp
30	Unit Mounting Plate
31	Exchanger, Heat
32	Running Capacitor
33	Heater, Defrost
34	WP43449 Whirlpool Bracket
35	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
36	Clamp
39	876811 Whirlpool Grommet
40	WP489069 Whirlpool Compactor Screw
42	Muffler
43	Relay
44	Overload
45	Cover, Terminal
46	Strap
47	Capacitor
48	Unit Mounting Rail
49	WP965173 Whirlpool Dishwasher Screw
50	Screw, 1/4-28 x 1
51	Tube, Clamp
52	Nut
53	Washer
54	WP978025 Whirlpool Refrigerator Valve
54	978030 Whirlpool Refrigerator Valve
54	VALVE, ACCESS (5/8“)
54	978027 Whirlpool Refrigerator Primary Valve
54	978026 Whirlpool Refrigerator Primary Valve
54	876764 Whirlpool Refrigerator Primary Valve
54	Support, Heater
54	VALVE, ACCESS (1/2“)
