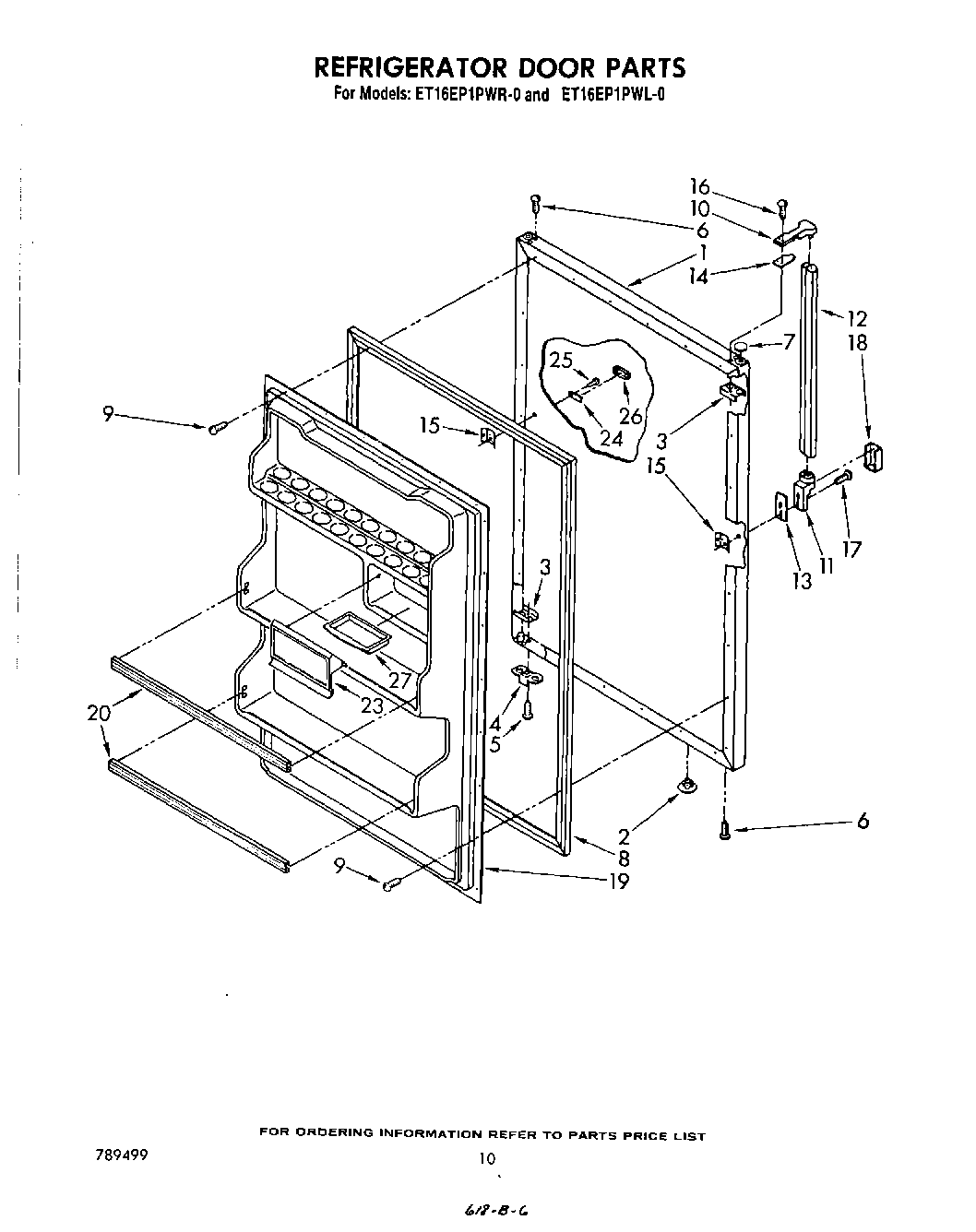

ET16EP1PWR0 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

ET16EP1PWR0 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Written by

in

ET16EP1PWR0 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Products

PositionProduct
350930 Whirlpool White Spray Paint
Paint, Spray (13 Oz.) (Platinum)
Toast
Golden Harvest
350942 Whirlpool Spray Paint
WPL LIT1105320
WPL LIT789499
WPL LIT1105709
Leveler (Thinner)
350956 Whirlpool Spray Assembly
WPL LIT1111517
285006 Whirlpool Spray
1Panel, Refrigerator Door (Also Order Item 27) (Almond)
1Panel, Refrigerator Door (Also Order Item 27) (White)
1Panel, Refrigerator Door (Also Order Item 27) (Golden Harvest)
1Panel, Refrigerator Door (Toast)
1Panel, Refrigerator Door (Platinum) (Also Order Item 21)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6Screw (Repair)
6WP8281206 Whirlpool Refrigerator Screw
7Hole Plug (Almond)
7Hole Plug (Platinum)
7Hole Plug (Toast)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82188445A Whirlpool Refrigerator Door Gasket Seal
9WP489069 Whirlpool Compactor Screw
9SCREW
10Handle End
11Handle End,
12Handle, Center
13Shim, Handle
14Spa
15WP939101 Whirlpool Refrigerator Plate
16WP488920 Whirlpool Refrigerator Screw
18Cover, End Cap
19Interior Door Panel
20Trim, Door (Top) (2)
23Butter Door
24Clip, Medallion
25WP488729 Whirlpool Refrigerator Door Screw
26Medallion (Platinum)
26Medallion (Toast)
26Medallion (Almond)
26Medallion (Golden Harvest)
26Medallion (White)
27799344 Whirlpool Refrigerator Paint
2772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
27WPL 72112
27Platinum (Uncut)
27WP72107 Whirlpool Touchup
27Enamal, Toast (1 Qt. Uncut)
27Golden Harvest (Uncut)
27Almond (Uncut)
2772113 Whirlpool Touch-Up Paint
27212643 Whirlpool Refrigerator Permagum Sealer
27WPL 876029
27WPL 799833
27WPL 799832
27Enamel, Black (1 Qt. Uncut)
27CEMENT, ALUMILASTIC (1 1/4 OZ.)
2772032 Whirlpool Touch Up Paint Black
27WP542638 Whirlpool Refrigerator Grease
27TAPE, VINYL (3/4 X 108“)
27WP505587 Whirlpool Refrigerator Sealer
27WP503695 Whirlpool Refrigerator Sealer
27876370 Whirlpool Refrigerator Insulation
27833938 Whirlpool Refrigerator Terminal
27Silicone (Spray)
27606755 Whirlpool Refrigerator Bag
27511873 Whirlpool Refrigerator Paint
2772017 Whirlpool Appliance Touch-Up Paint White
