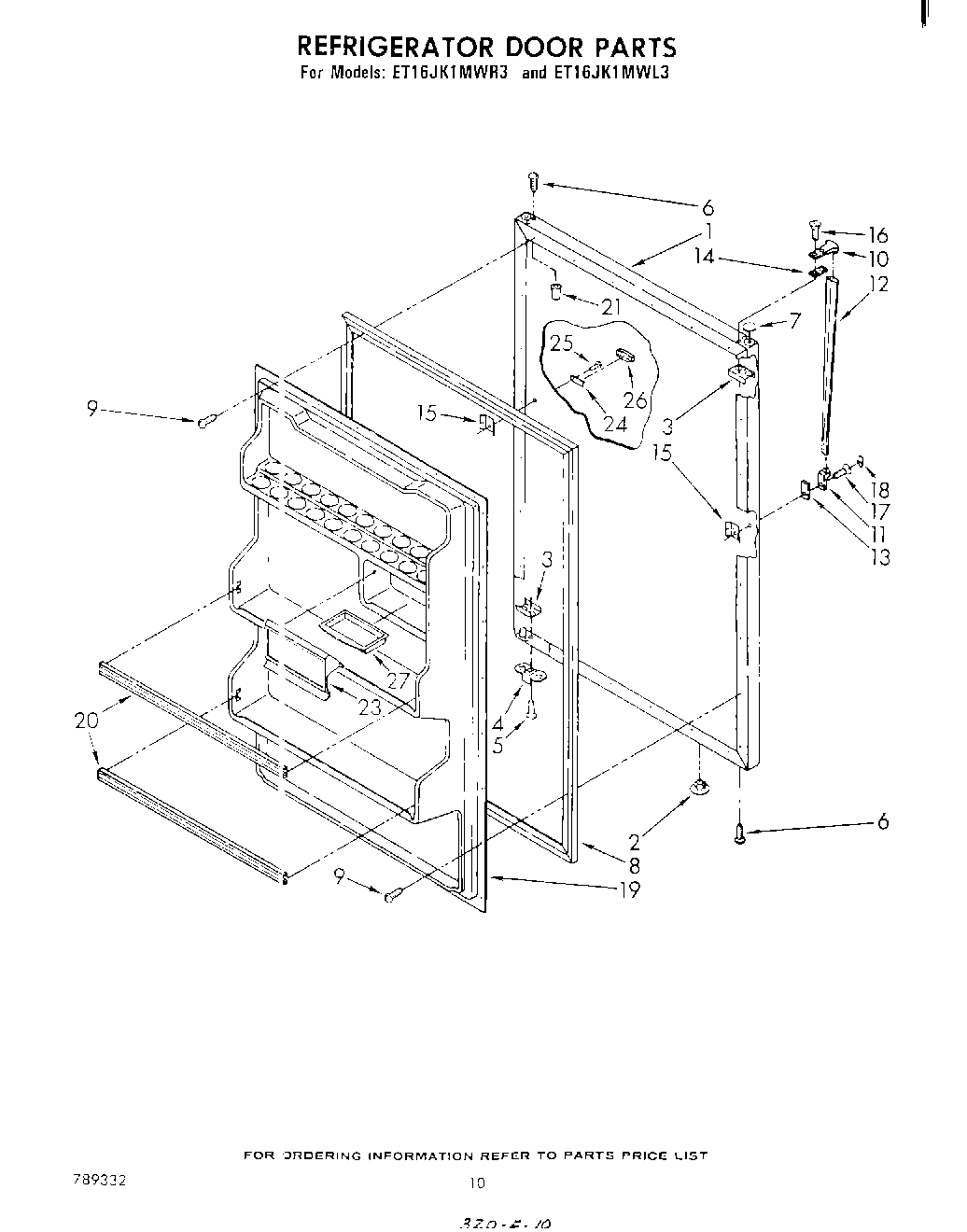

ET16JK1MWR3 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

ET16JK1MWR3 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Written by

in

ET16JK1MWR3 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Products

PositionProduct
350930 Whirlpool White Spray Paint
Paint, Spray (13 Oz.) (Platinum)
Toast
285006 Whirlpool Spray
Golden Harvest
WPL 677813
350942 Whirlpool Spray Paint
WPL 677818
WPL LIT789332
WPL 677821
WPL 677967
Leveler (Thinner)
WPL 677971
WPL LIT1104655
WPL LIT944988
350956 Whirlpool Spray Assembly
WPL LIT1103949
1Panel, Refrigerator Door (Toast)
1Panel, Refrigerator Door (Platinum) (Use 978941 Fiberglass Insulation)
1Panel, Refrigerator Door (White)
1Panel, Refrigerator Door (Golden Harvest)
1Panel, Refrigerator Door (Almond)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6Screw (Repair)
6WP8281206 Whirlpool Refrigerator Screw
7Hole Plug (Almond)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Toast)
7Hole Plug (Platinum)
82188445A Whirlpool Refrigerator Door Gasket Seal
9SCREW
9WP489069 Whirlpool Compactor Screw
10WP2191883 Whirlpool Refrigerator Handle Endcap
10819342 Whirlpool Refrigerator Endcap Kit
11WP2183139 Whirlpool Refrigerator Handle End Cap
12Handle, Center
12Handle, Center (For Platinum Model Only)
13Shim, Handle End
14Spa
15WP939101 Whirlpool Refrigerator Plate
16WP488920 Whirlpool Refrigerator Screw
17WP488729 Whirlpool Refrigerator Door Screw
18WP1101634 Whirlpool Refrigerator Cover
19Interior Door Panel
19Interior Door Panel
20Trim, Door (Top) (2)
21Cap, Hinge Sleeve (2)
23WPL 946998
24Clip, Medallion
26Medallion (Toast)
26Medallion (Golden Harvest)
26Medallion (White)
26Medallion (Almond)
26Medallion (Platinum)
2772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
2772032 Whirlpool Touch Up Paint Black
2772017 Whirlpool Appliance Touch-Up Paint White
27799344 Whirlpool Refrigerator Paint
27Enamal, Toast (1 Qt. Uncut)
27WP72107 Whirlpool Touchup
27Almond (Uncut)
27Golden Harvest (Uncut)
2772113 Whirlpool Touch-Up Paint
27Platinum (Uncut)
27WPL 72112
27WPL 799833
27WPL 799832
27CEMENT, ALUMILASTIC (1 1/4 OZ.)
27TAPE, VINYL (3/4 X 108“)
27WP542638 Whirlpool Refrigerator Grease
27WP505587 Whirlpool Refrigerator Sealer
27Enamel, Black (1 Qt. Uncut)
27WP503695 Whirlpool Refrigerator Sealer
27876370 Whirlpool Refrigerator Insulation
27833938 Whirlpool Refrigerator Terminal
27606755 Whirlpool Refrigerator Bag
27511873 Whirlpool Refrigerator Paint
27Silicone (Spray)
27212643 Whirlpool Refrigerator Permagum Sealer
27WPL 876029
