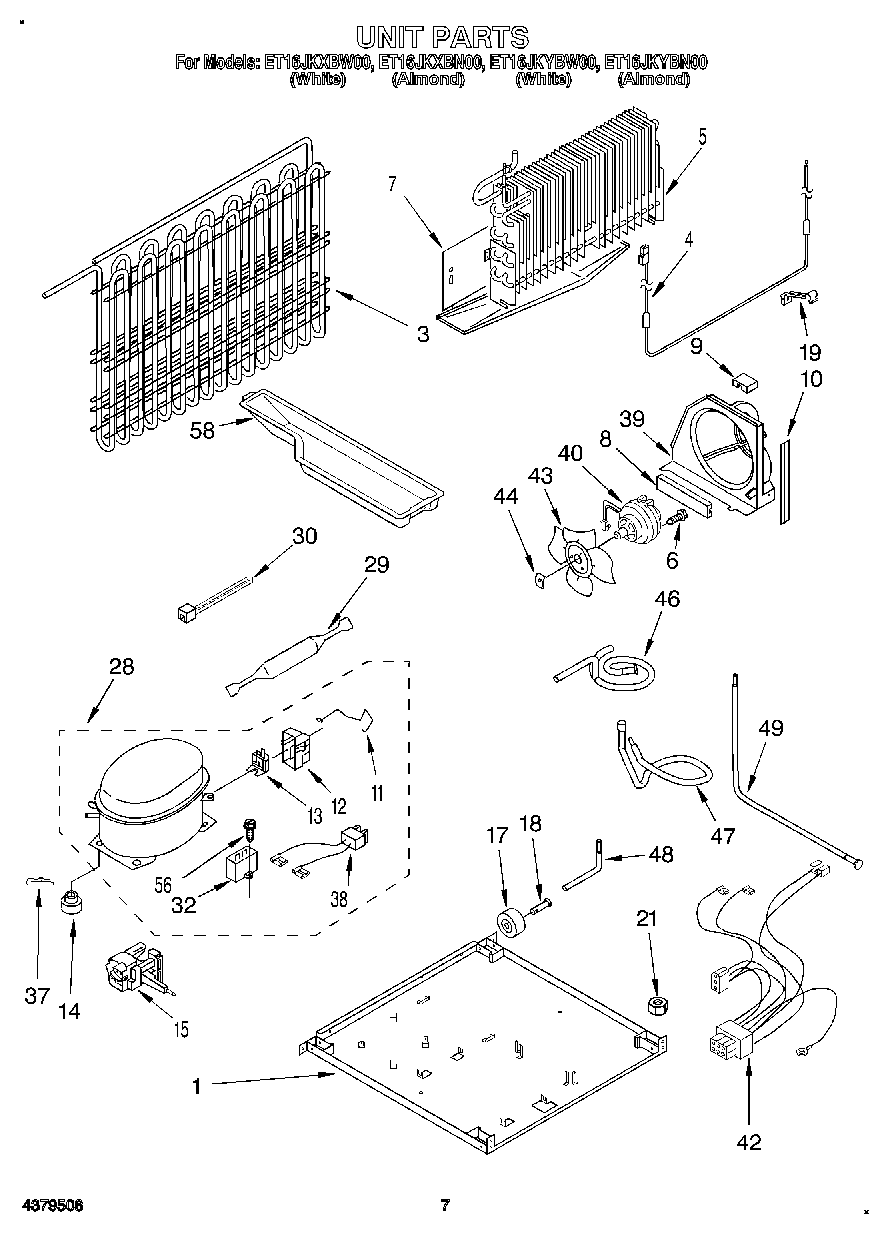

ET16JKXBN00 04 – UNIT

ET16JKXBN00 04 – UNIT

Written by

in

ET16JKXBN00 04 – UNIT

Products

PositionProduct
1Support Plate, Compressor
3Condenser
4WP2315531 Whirlpool Refrigerator Heater
5Evaporator Assy.
6Screw
7Heat Shield and Drain Pan
8Support, Air Baffle (Bottom)
9Support, Air Baffle (Top)
10Extension, Air Baffle
11Strap
11Clamp (Production Only)
12Cover
13Overload (Includes Relay)
14WP2163786 Whirlpool Refrigerator Grommet
14876811 Whirlpool Grommet
15Module
17Roller (2)
18W11594405 Whirlpool Axle
19Clip, Heater
21Nut (Not Serviced)
28Installation Kit
28876765 Whirlpool Primary Mounting Kit Refrigerator
28Compressor (Also Order)
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
32WPW10662129 Whirlpool Refrigerator Run Capacitor
37Clip, Compressor (4)
38WP2172890 Whirlpool Refrigerator Wire
39Air Baffle
40W10822259 Whirlpool Refrigerator Condenser Fan Motor
42Wire Assy., Unit
43Fan, Blade
44WP486692 Whirlpool Refrigerator Nut
46Tube, Discharge
47Tube, Suction
482154109 Whirlpool Refrigerator Tube
49Tube, Condenser To Heat Loop
56W11693756 Whirlpool Screw Assembly
58VALVE, ACCESS (5/8“)
58978026 Whirlpool Refrigerator Primary Valve
58876764 Whirlpool Refrigerator Primary Valve
58978027 Whirlpool Refrigerator Primary Valve
58978030 Whirlpool Refrigerator Valve
58WP978025 Whirlpool Refrigerator Valve
58VALVE, ACCESS (1/2“)
58Start Kit
58Evap. Tray
