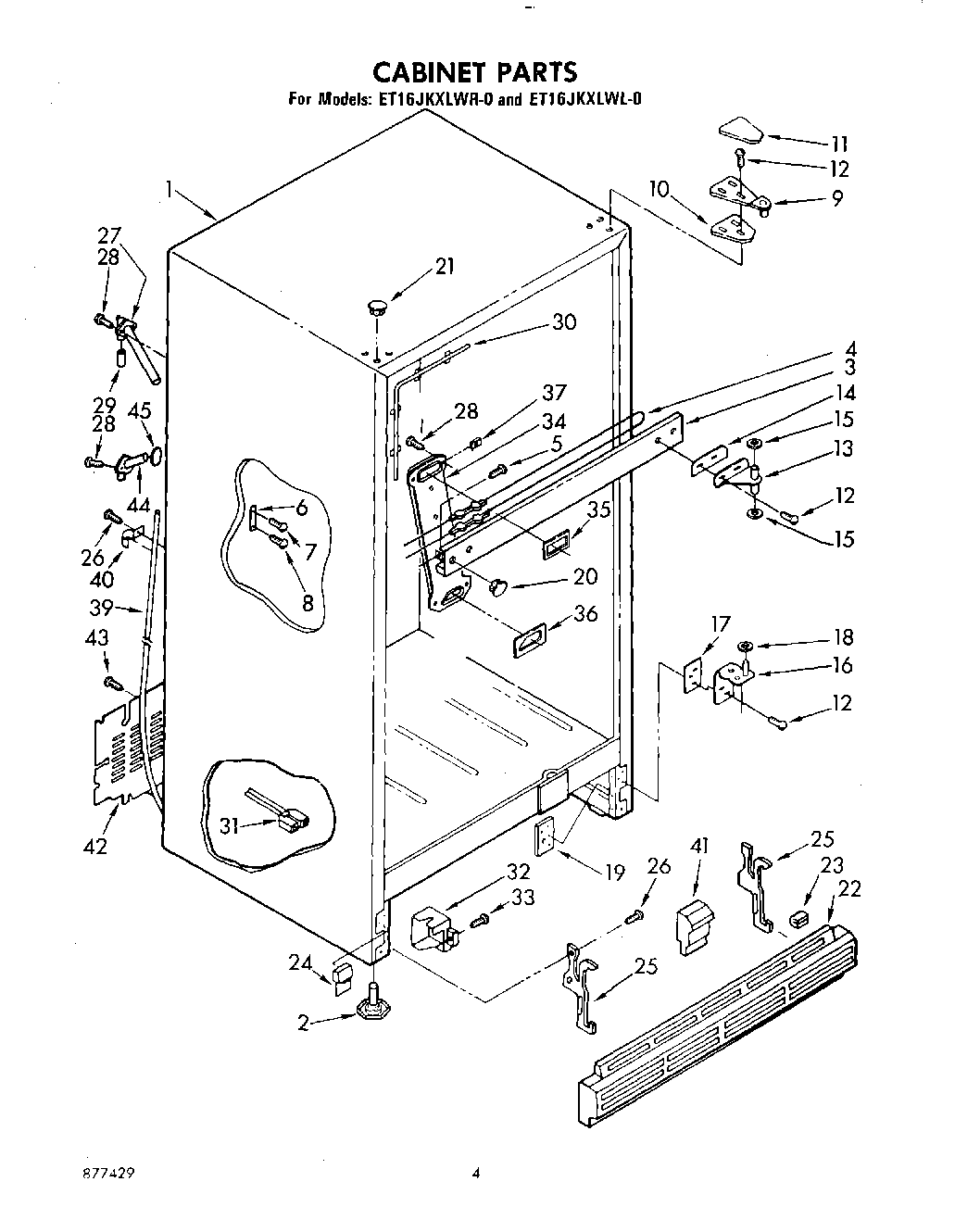

ET16JKXLWL0 03 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Leveler (2)
3	WPL 989907
3	WPL 989191
3	WPL 836066
3	WPL 989906
3	WPL 989905
4	WPL 989254
5	Screw (Repair)
5	Screw, 8 x 3/8
6	Strap, Ground
7	WP489128 Whirlpool Refrigerator Screw
8	Screw, 8-32 x 1-1/2
9	Hinge, Top
10	WPL 836151
11	Hinge Cover (Golden Harvest)
11	1119787 Whirlpool Refrigerator Hinge Cover
11	Hinge, Cover (Coffee)
11	Hinge Cover (New Avocado)
12	Screw (Repair)
12	WP999367 Whirlpool Refrigerator Screw
13	Hinge, Center
14	Shim, Hinge Center
15	WP488296 Whirlpool Washer Refrigerator
16	Hinge (Bottom)
16	WPL 836687
17	Shim, Bottom Hinge
18	WP487802 Whirlpool Refrigerator Washer
19	Tap Plate
20	Hole Plug (New Avocado)
20	Hole Plug (Golden Harvest)
20	Hole Plug (Coffee)
20	Hole, Plug (Almond)
20	Hole, Plug (White)
21	Hole Plug (2) (White)
21	Hole Plug (2) (Golden Harvest)
21	Hole Plug (2) (Almond)
21	Hole Plug (Coffee)
21	Hole Plug (New Avocado)
22	Grille
23	Bumper, Grille
24	Fill, Grille
25	WPL 844614
26	W11624204 Whirlpool Screw
27	WP2196157 Whirlpool Fill Tube
28	WP98165 Whirlpool Screw
29	WP487996 Whirlpool Refrigerator Cap Tube
30	Stile, Heater
31	WPL 548734
32	WPL 549947
33	WP488729 Whirlpool Refrigerator Door Screw
34	Duct, Air
35	Gasket Inlet
36	Gasket Outlet
37	Nut, Speed (4)
39	8316810 Whirlpool Refrigerator Drain Tube
40	WPL 836077
41	WPL 836372
42	Cover
44	WPL 942546
45	Gasket, Seal
