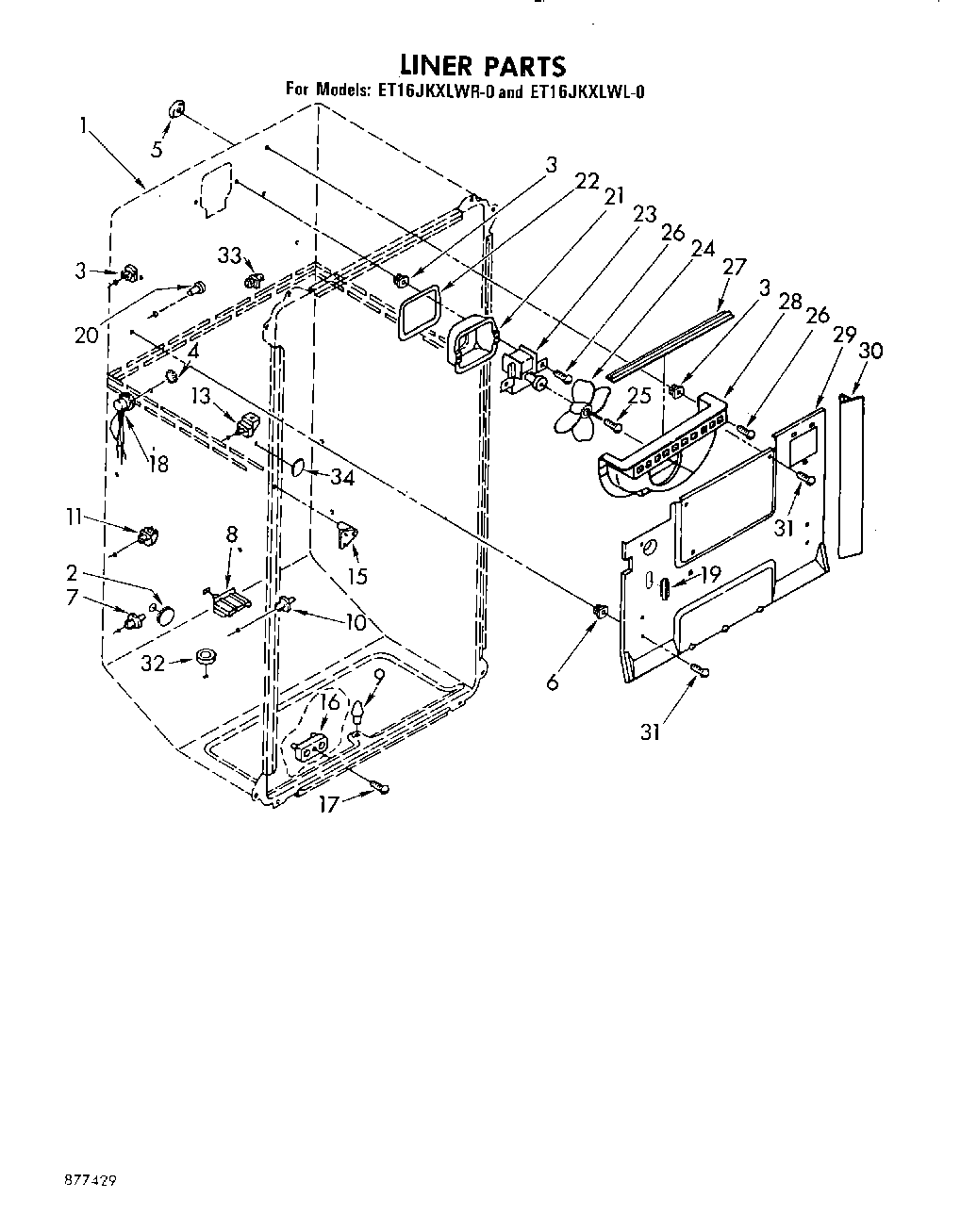

ET16JKXLWL0 04 – LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Hole, Plug
3Grommet
4Hole, Plug
5Grommet, Water Inlet
6Grommet
7Shelf, Stud
8Stud, Support Rear
9Grommet, Crisper Cover
10Stud, Shelf (2)
11Shelf Stud, Saddle
11Shelf Stud Saddle (R.S.)
13Retainer, Stud (4)
15Spacer, Liner (2)
16Spacer, Liner (8)
17WP488163 Whirlpool Refrigerator Screw
18Wiring, Ice Maker
19Hole Plug, Evaporator
20Receptacle Cap
21Cover, Motor
22Gasket, Motor Cover
23482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
24WP1100938 Whirlpool Refrigerator Fan Blade
25WP487887 Whirlpool Refrigerator Screw
26W11624204 Whirlpool Screw
27Gasket, Sealing
28Scroll, Fan
29Cover, Evaporator
30Gasket, Cover (2) (15-3/4“)
31WP488729 Whirlpool Refrigerator Door Screw
32Drain Cover
33Stud, Hook (2)
34Grommet Drain Fitting
