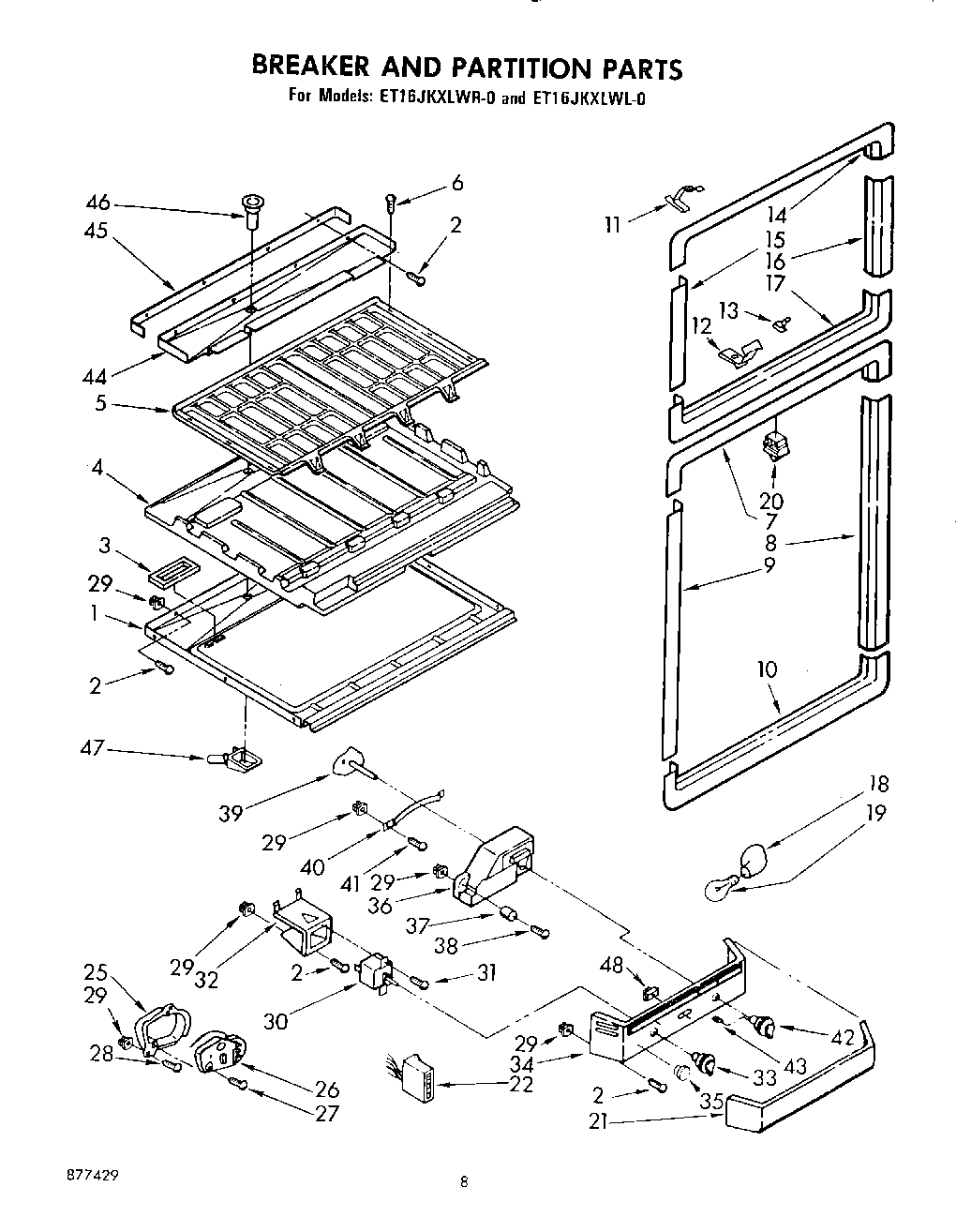

ET16JKXLWL0 06 – BREAKER AND PARTITION

Products

Position	Product
1	Separator (Bottom)
2	W11624204 Whirlpool Screw
3	Gasket, Air Return
4	Insulation, Separator
5	Separator (Top)
6	WP488729 Whirlpool Refrigerator Door Screw
7	Breaker, Mullion (Bottom)
8	Breaker, Refrigerator R.S.
9	Breaker, Refrigerator L.S.
10	Breaker, Refrigerator (Bottom)
11	Clip, Wrapper (23)
12	Breaker, Clip
13	Breaker, Trim Clip
14	Breaker, Freezer (Top)
15	Breaker, Freezer (R.S.)
16	Breaker, Freezer (L.S.)
17	Breaker, Mullion (Top)
18	4387478 Whirlpool Refrigerator Light Socket
19	RANGE ONLY 40W 120V APPL BULB
20	W11384469 Whirlpool Door Switch
21	Light Lens
22	Liner Wiring (Defrost Timer)
25	Timer, Container
26	Defrost, Timer
27	Screw, 8 x 3/8 (2)
28	WP489069 Whirlpool Compactor Screw
29	Grommet
30	WP819470 Whirlpool Refrigerator Thermostat
31	WP965173 Whirlpool Dishwasher Screw
32	Bracket, Thermostat
33	Knob, Temperature Control
34	Panel, Control
35	Hole Plug (2)
36	Air Diffuser
37	836667 Whirlpool Refrigerator Spacer
38	Screw, 8 x 1-1/4 (3)
39	Damper, Air
40	Retrainer, Air Dampener
41	Screw, 8 x 3/8
42	Control Knob
43	Knob, Retainer
44	Pan, Evaporator Drain
45	Gasket, Drain Pan
46	Fitting, Drain Pan
47	Cup, Drain
48	WP938213 Whirlpool Refrigerator Power Switch
