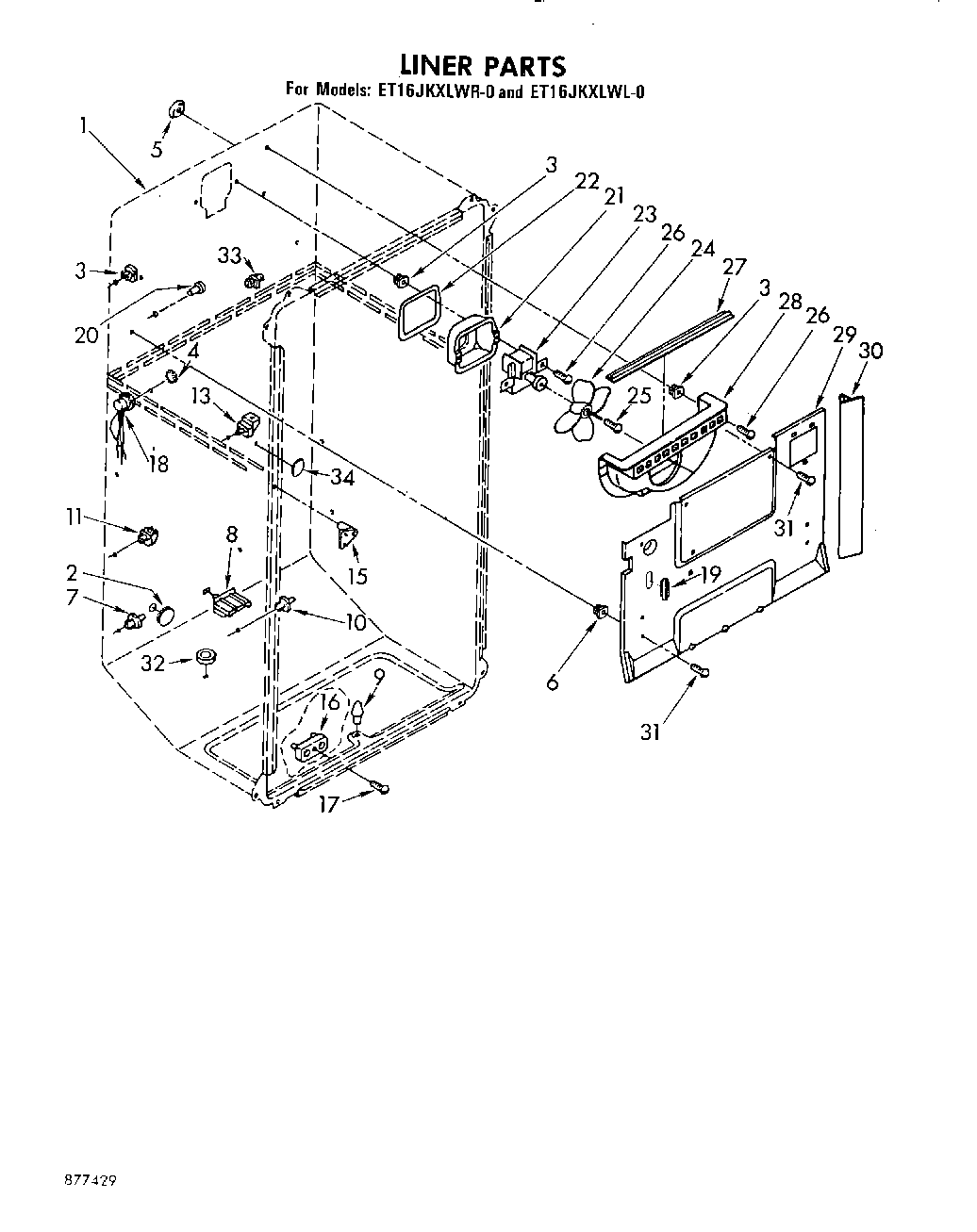

| 1 | Liner (Not A Serviceable Part) |
| 2 | Hole, Plug |
| 3 | Grommet |
| 4 | Hole, Plug |
| 5 | Grommet, Water Inlet |
| 6 | Grommet |
| 7 | Shelf, Stud |
| 8 | Stud, Support Rear |
| 9 | Grommet, Crisper Cover |
| 10 | Stud, Shelf (2) |
| 11 | Shelf Stud, Saddle |
| 11 | Shelf Stud Saddle (R.S.) |
| 13 | Retainer, Stud (4) |
| 15 | Spacer, Liner (2) |
| 16 | Spacer, Liner (8) |
| 17 | WP488163 Whirlpool Refrigerator Screw |
| 18 | Wiring, Ice Maker |
| 19 | Hole Plug, Evaporator |
| 20 | Receptacle Cap |
| 21 | Cover, Motor |
| 22 | Gasket, Motor Cover |
| 23 | 482731 Whirlpool Refrigerator Evaporator Fan Motor Kit |
| 24 | WP1100938 Whirlpool Refrigerator Fan Blade |
| 25 | WP487887 Whirlpool Refrigerator Screw |
| 26 | W11624204 Whirlpool Screw |
| 27 | Gasket, Sealing |
| 28 | Scroll, Fan |
| 29 | Cover, Evaporator |
| 30 | Gasket, Cover (2) (15-3/4``) |
| 31 | WP488729 Whirlpool Refrigerator Door Screw |
| 32 | Drain Cover |
| 33 | Stud, Hook (2) |
| 34 | Grommet Drain Fitting |
