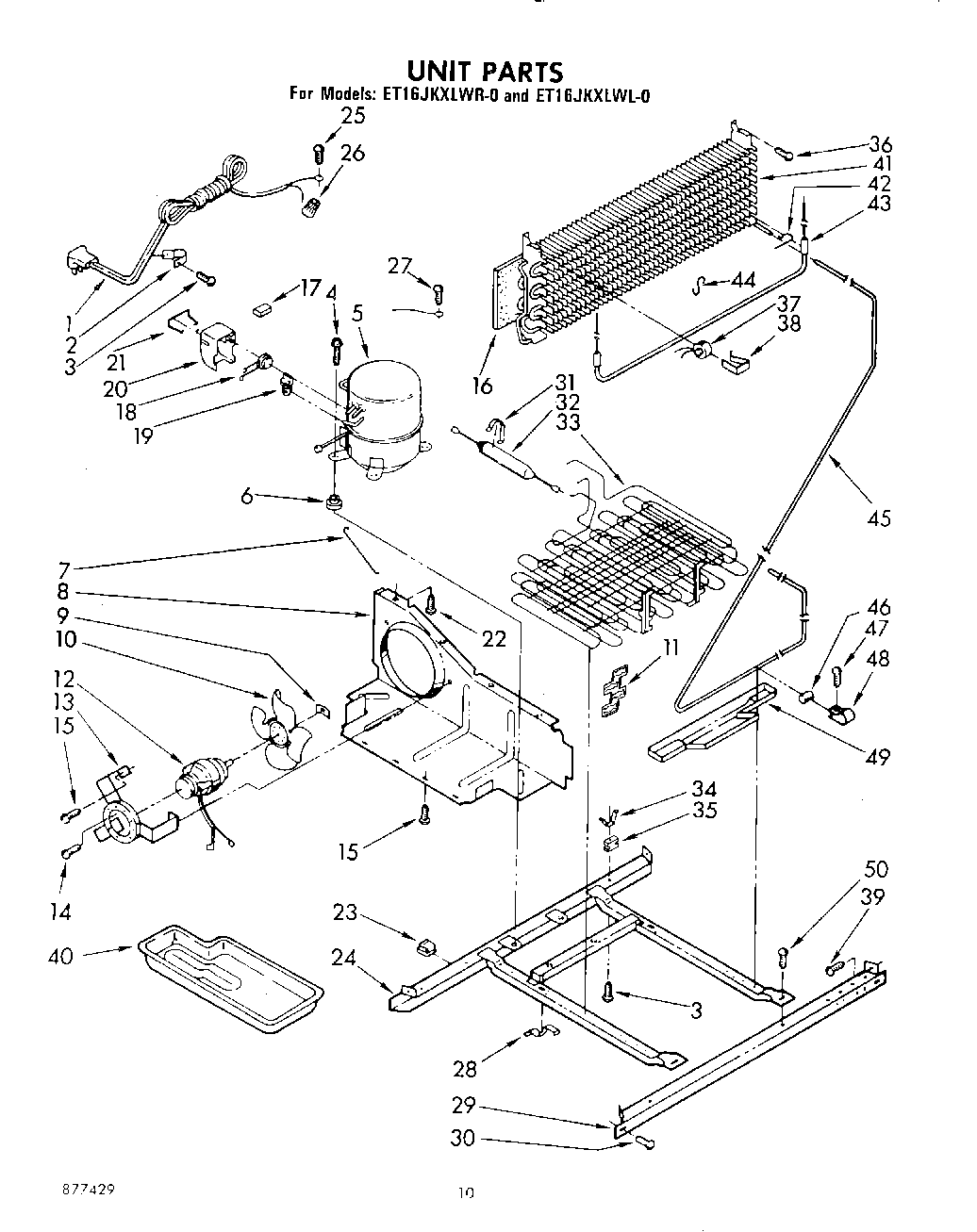

ET16JKXLWR0 07 – UNIT, LIT/OPTIONAL

ET16JKXLWR0 07 – UNIT, LIT/OPTIONAL

Written by

in

ET16JKXLWR0 07 – UNIT, LIT/OPTIONAL

Products

Position	Product
1	Cord, Service
2	549193 Whirlpool Refrigerator Power Clamp
3	W11624204 Whirlpool Screw
4	Screw, 1/4-28 x 1“ (4)
5	Compressor
6	Grommet (4)
7	Guard, Fan
8	Baffle
9	WP486692 Whirlpool Refrigerator Nut
10	Fan, Blade
11	Spacer Condenser (4)
12	833697 Whirlpool Condenser Fan Motor
13	Bracket, Motor
14	Screw, 8-36 x 3/8 (3)
15	Screw, 8 x 3/8
16	Baffle, Evaporator
17	Bumper
18	Overload
19	Relay
20	Case, Relay
21	Spring
22	Screw, 8-32 x 1/2
23	Clip, Wire (2)
24	Frame
25	Screw, 8-32 x 3/8
26	Wire Connector
27	303776 Whirlpool Dishwasher Screw
28	Clip (2)
29	Rail, Front
30	489340 Whirlpool Refrigerator Screw
31	Clamp
32	W10843121 Whirlpool Refrigerator Tube
33	Condenser & Precooler Assembly
34	Clamp (4)
35	Grommet (4)
36	W11693756 Whirlpool Screw Assembly
37	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
38	Clamp
39	WP488729 Whirlpool Refrigerator Door Screw
40	WPL 842041
41	Evaporator
42	Clip, Heater (2)
43	Heater, Defrost
44	Support, Heater
45	Exchanger, Heat
46	Dampener (2)
47	WPW10141625 Whirlpool Refrigerator Screw Assembly
48	Clamp Tube
49	Pan, Drip
50	WPL 877429
50	WPL 942905
50	WPL 942906
50	WPL 97802
50	Enamel, White (1 Qt. Uncut)
50	Leveler (Thinner)
50	Screw, 1/4-28 x 1/2 (2)
50	Transformer (115-230 Volt)
50	WPL 943003
50	WPL 941676
50	WPL 799351
50	Enamel, New Avocado (1 Qt. Uncut)
50	WP503695 Whirlpool Refrigerator Sealer
50	876370 Whirlpool Refrigerator Insulation
50	833938 Whirlpool Refrigerator Terminal
50	606755 Whirlpool Refrigerator Bag
50	511873 Whirlpool Refrigerator Paint
50	212643 Whirlpool Refrigerator Permagum Sealer
50	Golden Harvest (Uncut)
50	Golden Harvest
50	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
50	VALVE, ACCESS (5/8“)
50	Almond (Uncut)
50	Leveler (Thinner)
50	WP72107 Whirlpool Touchup
50	799344 Whirlpool Refrigerator Paint
50	72017 Whirlpool Appliance Touch-Up Paint White
50	350956 Whirlpool Spray Assembly
50	978026 Whirlpool Refrigerator Primary Valve
50	WP505587 Whirlpool Refrigerator Sealer
50	Enamel, Coffee (1 Qt. Uncut)
50	Paint, Spray 13 Oz. (Avocado)
50	paint, spray 13 oz. (coffee)
50	Paint, Touch-Up 1/2 Oz. (Coffee)
50	72109 Whirlpool Dacor Avocado Touch-Up Paint
50	72032 Whirlpool Touch Up Paint Black
50	285006 Whirlpool Spray
50	WPL 876029
50	WPL 799833
50	WPL 799832
50	CEMENT, ALUMILASTIC (1 1/4 OZ.)
50	TAPE, VINYL (3/4 X 108“)
50	VALVE, ACCESS (1/2“)
50	978030 Whirlpool Refrigerator Valve
50	WP542638 Whirlpool Refrigerator Grease
50	978027 Whirlpool Refrigerator Primary Valve
50	350930 Whirlpool White Spray Paint
