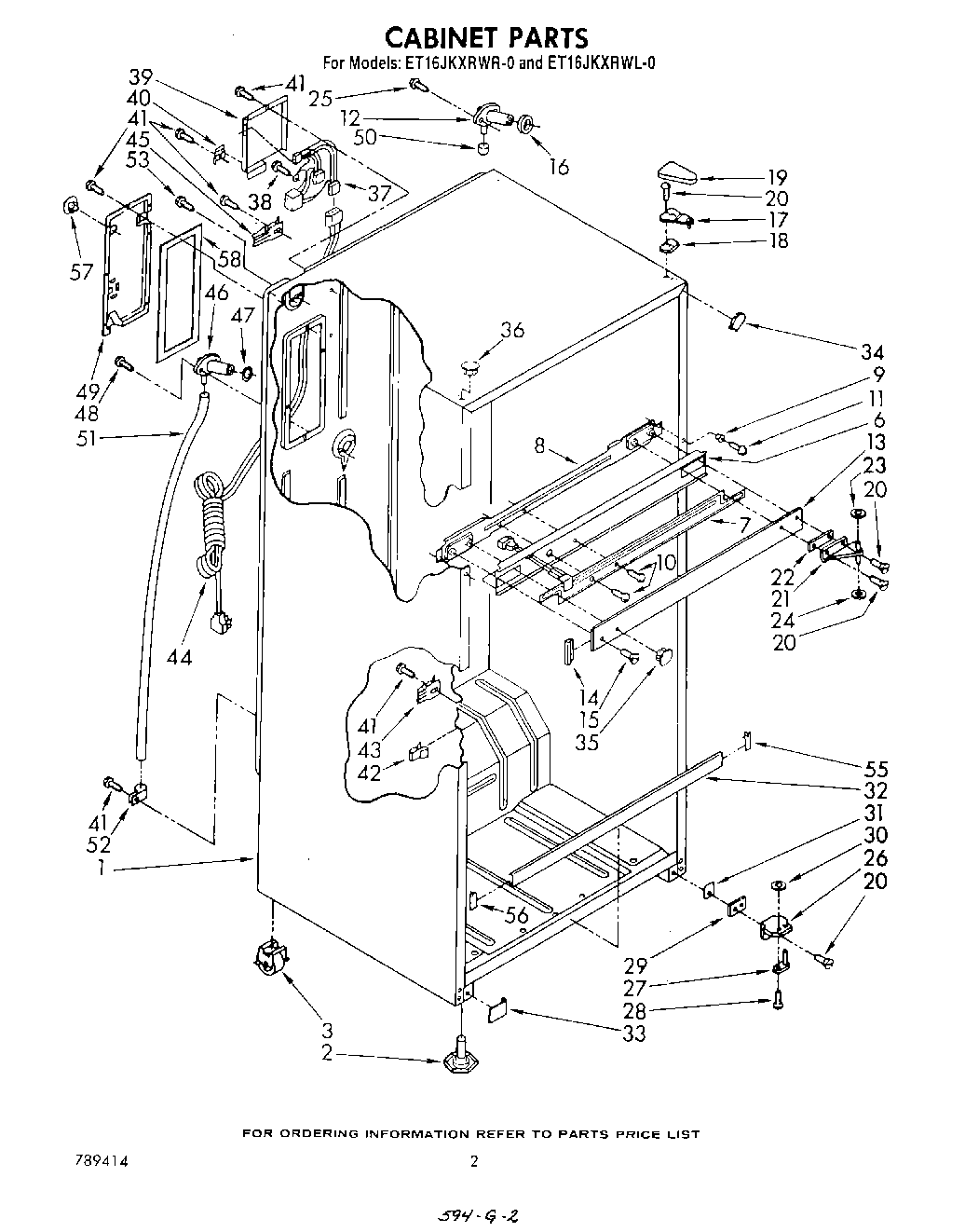

ET16JKXRWR0 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Leveler (2)
3	Roller, Front & Rear (4)
6	Frame, Center Rail
7	Heater, Mullion
8	Center Rail, Bracket
9	Ferrule, Center Rail
10	Screw, 8-32 x 1/2
11	WPL 488428
12	WP2196157 Whirlpool Fill Tube
13	Center Rail (Platinum)
13	Center Rail (Toast)
13	Center Rail (Golden Harvest)
13	Center Rail (Almond)
13	Center Rail (White)
14	Filler, Center Rail (2) (White)
14	Filler, Center Rail (2) (Almond)
14	Filler, Center Rail (2) (Toast)
14	Filler, Center Rail (2) (Platinum)
14	Filler, Center Rail (2) (Golden Harvest)
15	Screw, 10-32 x 3/8
16	WP1106508 Whirlpool Refrigerator Gasket
17	Shim, Hinge Top
18	Shim, Hinge
19	Hinge Cover (Golden Harvest)
19	Hinge Cover (Toast)
19	1119787 Whirlpool Refrigerator Hinge Cover
20	WP999367 Whirlpool Refrigerator Screw
20	Screw (Repair)
21	Hinge, Center
22	Shim, Hinge Center
24	WP488296 Whirlpool Washer Refrigerator
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom
30	WP487802 Whirlpool Refrigerator Washer
31	Cover, Glider Rail (Golden Harvest)
31	Cover, Glider Rail (White)
31	Cover, Glider Rail (Platinum)
31	Cover, Glider Rail (Toast)
31	Cover, Glider Rail (Almond)
32	WPL 1100667
32	Cover, Deck Rail (W
32	WPL 942727
32	Cover, Deck Rail (Toast)
32	WPL 942725
33	WPL 944833
33	WPL 1100682
33	Cover, Gl
33	WPL 943552
33	WPL 944831
34	WPL 1100684
34	WPL 942807
34	WPL 942811
34	WPL 942809
34	WPL 1100683
35	Hole Plug (2) (Platinum)
35	Hole Plug (2) (Toast)
35	Hole Plug (2) (Almond)
35	Hole Plug (2) (Golden Harvest)
35	Hole Plug (2)
36	Hole Plug (2) (White)
36	Hole Plug (2) (Almond)
36	Hole Plug (3) (Platinum)
36	Hole Plug (3) (Toast)
36	Hole Plug (2) (Golden Harvest)
37	WPL 942844
38	WP250830 Whirlpool Refrigerator Screw
39	WPL 942845
40	WPL 944741
41	W11624204 Whirlpool Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	WPL 1106507
48	WP98165 Whirlpool Screw
49	WPL 1106513
50	WP487996 Whirlpool Refrigerator Cap Tube
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
53	WP489069 Whirlpool Compactor Screw
55	WPL 1100671
55	WPL 1100672
55	WPL 944700
55	WPL 944701
55	WPL 944703
56	WPL 1100673
56	WPL 1100674
56	WPL 944705
56	WPL 944706
56	WPL 944708
57	WPL 655411
58	WPL 1106510
