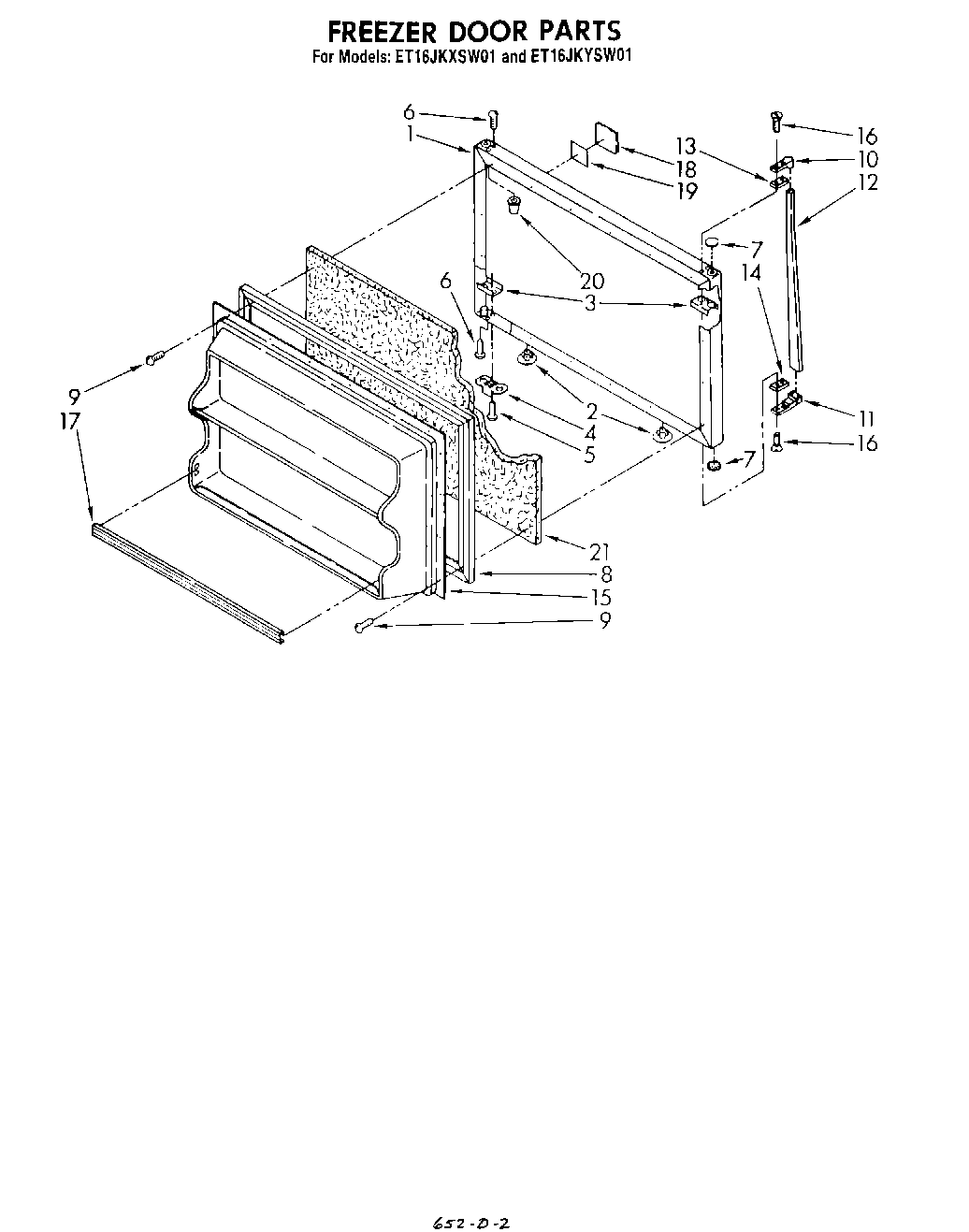

ET16JKXSW01 06 – FREEZER DOOR
Written by
in
ET16JKXSW01 06 – FREEZER DOOR
Products
Position
Product
1
Panel, Freezer Door (Also Order Item 21) (Almond)
1
Panel, Freezer Door (Also Order Item 21) (Golden Harvest)
1
Panel, Freezer Door (Also Order Item 21) (White)
1
Panel, Freezer Door (Also Order Item 21) (Toast)
1
Panel, Freezer Door (Also Order Item 21) (Platinum)
2
Hole Plug (2) (Toast)
2
Hole Plug (2) (Platinum)
2
Hole Plug (2)
2
Hole Plug (2) (Golden Harvest)
2
Hole Plug (2) (Almond)
3
W10833053 Whirlpool Refrigerator Plate
4
Bracket, Door Stop
5
WP488921 Whirlpool Refrigerator Screw
6
Screw (Repair)
6
WP8281206 Whirlpool Refrigerator Screw
7
Hole Plug (Almond)
7
Hole Plug (Platinum)
7
WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7
Hole Plug (Toast)
8
GASKET-DOR
9
SCREW
9
WP489069 Whirlpool Compactor Screw
11
819342 Whirlpool Refrigerator Endcap Kit
12
Handle, Center (Golden Harvest)
12
Handle, Center
13
Shim, Handle
14
Spa
15
Panel, Interior Door (Freezer)
16
WP488920 Whirlpool Refrigerator Screw
17
Trim, Door Shelf (2)
18
Nameplate
19
Tape Strip
20
Cap, Hinge Sleeve (2)
21
WPL 876029
←
