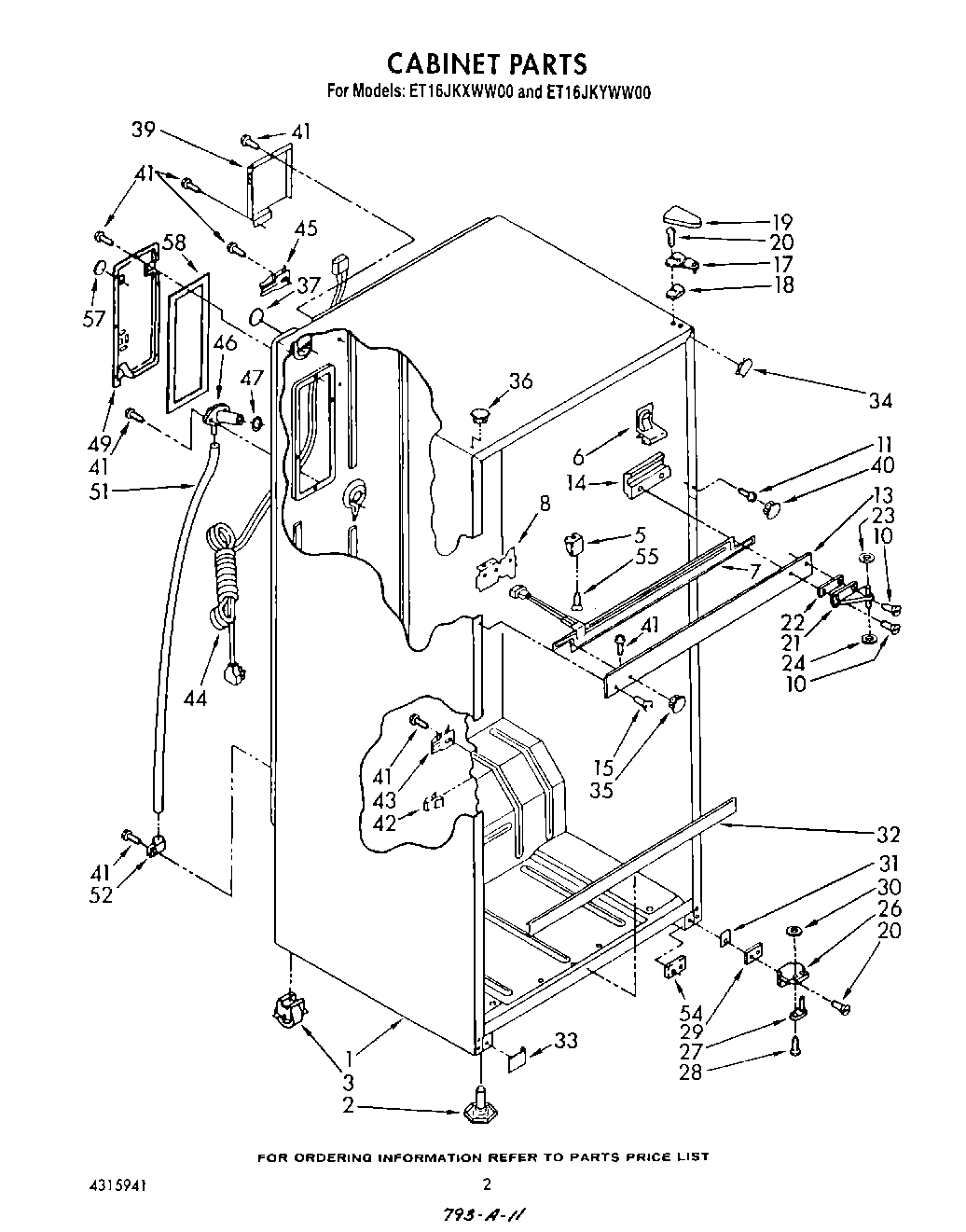

ET16JKXWF00 02 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Leveler (2)
3Roller, Front & Rear (4)
5Spacer (2)
6Clip, Center Rail (4)
7Heater, Mullion
8Center Rail, Bracket (2)
10Screw
11WPL 488844
13Center Rail (White)
13Center Rail (Toast)
13Center Rail (Golden Harvest)
13Center Rail (Almond)
13Center Rail (Platinum)
14Center, Rail Shim (2)
15Screw
17Shim, Hinge Top
18Shim, Hinge
191119787 Whirlpool Refrigerator Hinge Cover
19Hinge Cover (Toast)
19Hinge Cover (Golden Harvest)
20Screw (Repair)
20Screw
21Hinge, Center
22Shim, Hinge Center
23WP487802 Whirlpool Refrigerator Washer
24WP488296 Whirlpool Washer Refrigerator
26Hinge Butt, Bottom
27Hinge Pin, Bottom
28Screw 10-32 x 5/16
29Shim, Bottom
30Washer, 7/64
31Cover, Glider Rail (Almond)
31Cover, Glider Rail (White)
31Cover, Glider Rail (Toast)
31Cover, Glider Rail (Platinum)
31Cover, Glider Rail (Golden Harvest)
32Cover, Deck Rail (Almond)
32Cover, Deck Rail (Platinum)
32Cover, Deck Rail (Toast)
32Cover, Deck Rail (White)
32Cover, Deck Rail (Golden Harvest)
33WPL 944831
33WPL 943552
33WPL 1100682
33Cover, Gl
33WPL 944833
34WPL 1110688
34WPL 1110687
34WPL 1110684
34WPL 1110685
34WPL 1110686
35WPL 1119708
35WPL 1119711
35WPL 1119710
35Hole Plug (Almond)
35Hole Plug (White)
36Hole Plug (4) (Toast)
36Hole Plug (4) (Platinum)
36Hole Plug (4) (Golden Harvest)
36Hole Plug (4) (Almond)
36Hole Plug (4) (White)
37Hole Seal
39WPL 942845
40Hole Plug (2) (Golden Harvest)
40Hole Plug (2) (Toast)
40Hole Plug (2) (Platinum)
40Hole Plug (2) (White)
40Hole Plug (2) (Almond)
41SCREW
41WP489478 Whirlpool Refrigerator Screw
42W10812038 Whirlpool Refrigerator Clip
43549193 Whirlpool Refrigerator Power Clamp
44Cord, Service
45Clamp
46WPL 942813
47WPL 1106507
49WPL 1106511
518316810 Whirlpool Refrigerator Drain Tube
52WPL 519405
54Tap Plate (2)
55WP489174 Whirlpool Refrigerator Screw
57WPL 1120224
58WPL 1106510
