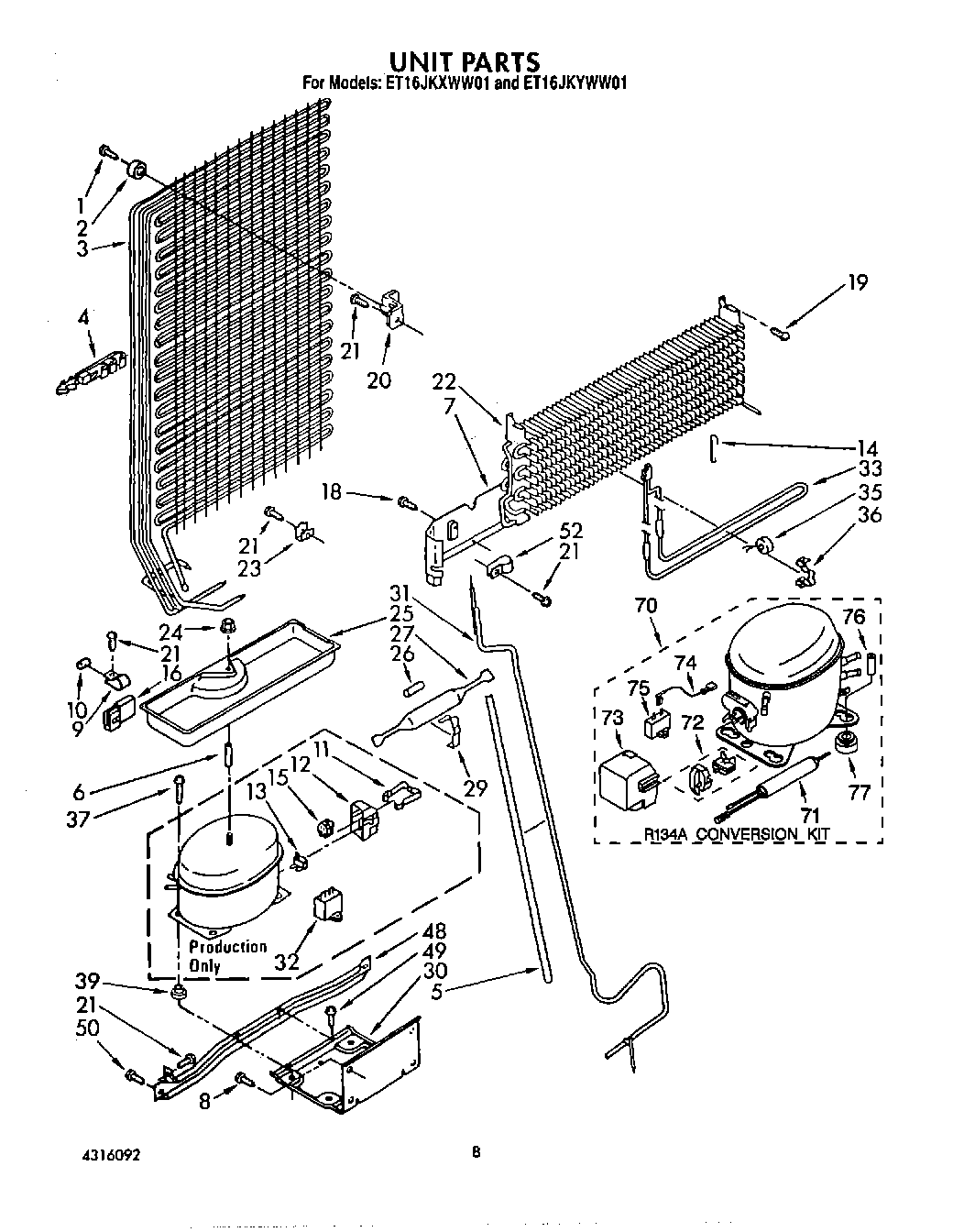

ET16JKXWN01 07 – UNIT

ET16JKXWN01 07 – UNIT

Written by

in

ET16JKXWN01 07 – UNIT

Products

Position	Product
1	WP488163 Whirlpool Refrigerator Screw
2	Bumper
3	Condenser & Precooler Assembly
4	Clip, Tube (2)
5	WP2002171 Whirlpool Refrigerator Sleeve
6	Spacer
7	Heat Shield Evaporator
8	WP489069 Whirlpool Compactor Screw
9	Clamp Tube
10	Dampener
11	Strap
12	Cover
13	Overload
14	Support, Heater
15	WP2262181 Whirlpool Refrigerator Start Relay
16	WP717253 Whirlpool Dishwasher Connector
19	WP489174 Whirlpool Refrigerator Screw
20	Bracket, Condenser
21	WP489478 Whirlpool Refrigerator Screw
21	SCREW
22	Evaporator
23	4386951 Whirlpool Refrigerator Clip
24	285002 Whirlpool Nut
25	Evaporator Tray
26	Restrictor Sleeve
29	Clamp, Dryer
30	Unit Mounting Plate
31	Exchanger, Heat
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	Heater, Defrost
35	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
36	Clamp
39	876811 Whirlpool Grommet
48	Unit Mounting Rail
49	WP965173 Whirlpool Dishwasher Screw
50	Screw, 1/4-28 x 1
52	Tube, Clamp
70	Installation Kit
70	Compressor (Includes Items 71, 72, 73, 74, 75, 76, & 77) (Also Order
70	876765 Whirlpool Primary Mounting Kit Refrigerator
71	W10843121 Whirlpool Refrigerator Tube
72	OVERLOAD
73	WP2162358 Whirlpool Refrigerator Terminal Cover
74	WP2172890 Whirlpool Refrigerator Wire
75	WP4387764 Whirlpool Run Capacitor
76	Sleeve (4) (Service Only)
77	VALVE, ACCESS (1/2“)
77	978027 Whirlpool Refrigerator Primary Valve
77	WP4387558 Whirlpool Refrigerator Compressor Grommet
77	978030 Whirlpool Refrigerator Valve
77	WP978025 Whirlpool Refrigerator Valve
77	978026 Whirlpool Refrigerator Primary Valve
77	876764 Whirlpool Refrigerator Primary Valve
77	VALVE, ACCESS (5/8“)
