ET16JKYDW00 04 – UNIT

ET16JKYDW00 04 – UNIT

Written by

in

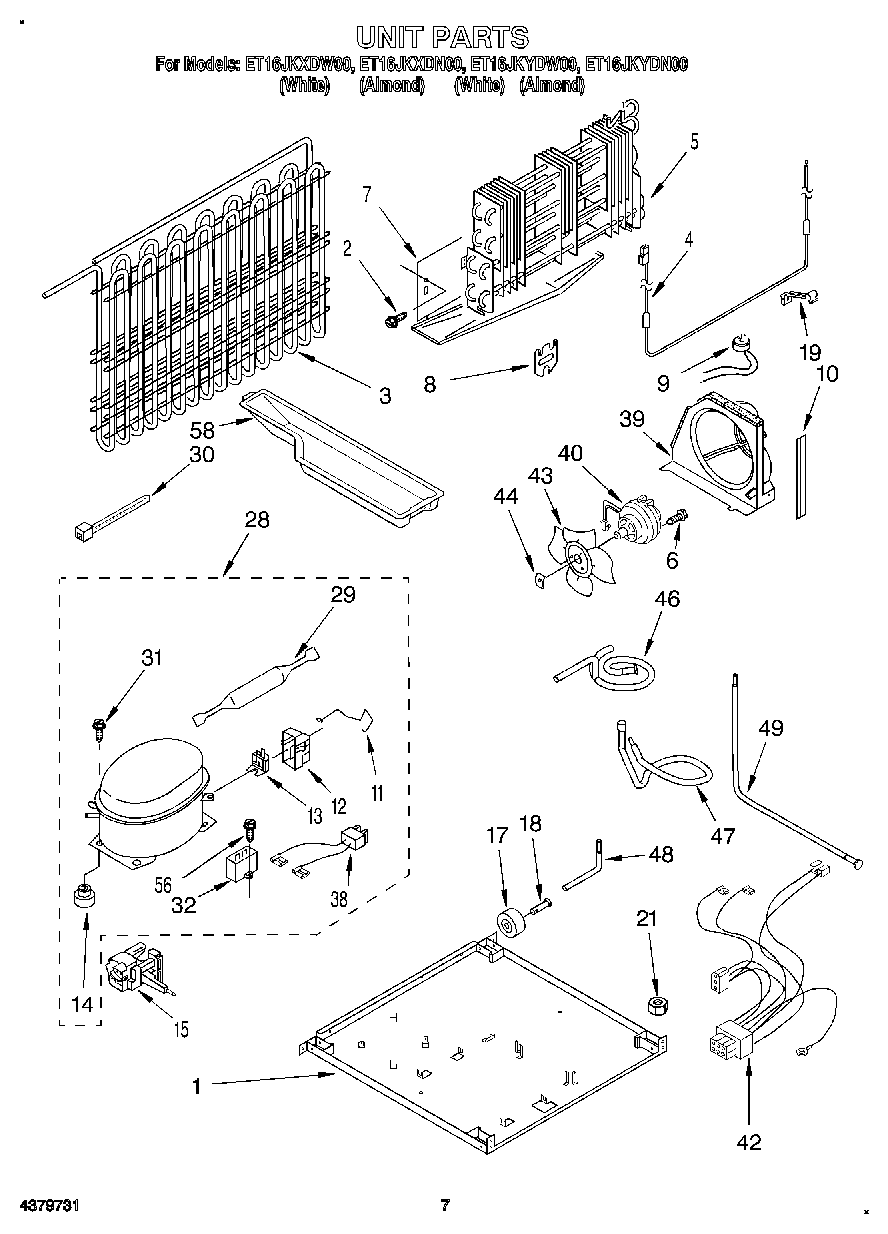

ET16JKYDW00 04 – UNIT

Products

PositionProduct
1Plate, Unit Mounting
2WP489478 Whirlpool Refrigerator Screw
3Condenser
4WP2315531 Whirlpool Refrigerator Heater
5Evaporator Assy.
6Screw
7Drain Pan
8Bracket, Heater
9WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
10Extension, Air Baffle
11Clamp (Production Only)
12WP2162358 Whirlpool Refrigerator Terminal Cover
134387913 Whirlpool Refrigerator Primary Overload Relay
14876811 Whirlpool Grommet
14Grommet (4) (Production)
158201547 Whirlpool Refrigerator Start Relay
17Roller (2)
18W11594405 Whirlpool Axle
19Clip, Heater
21Nut (Not Serviced)
28876765 Whirlpool Primary Mounting Kit Refrigerator
28Installation Kit
28W10309988 Whirlpool Refrigerator Compressor
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
31Screw
32Capacitor
38WP2172890 Whirlpool Refrigerator Wire
39Baffle, Air
40W10822259 Whirlpool Refrigerator Condenser Fan Motor
42Wire Assy., Unit
43Fan, Blade
44WP486692 Whirlpool Refrigerator Nut
46Tube, Discharge
47Tube, Suction
482154109 Whirlpool Refrigerator Tube
49Tube, Condenser To Heat Loop
56W11693756 Whirlpool Screw Assembly
58VALVE, ACCESS (5/8“)
58Evap. Tray
58876764 Whirlpool Refrigerator Primary Valve
58Start Kit
58978026 Whirlpool Refrigerator Primary Valve
58978027 Whirlpool Refrigerator Primary Valve
58978030 Whirlpool Refrigerator Valve
58VALVE, ACCESS (1/2“)
58WP978025 Whirlpool Refrigerator Valve
