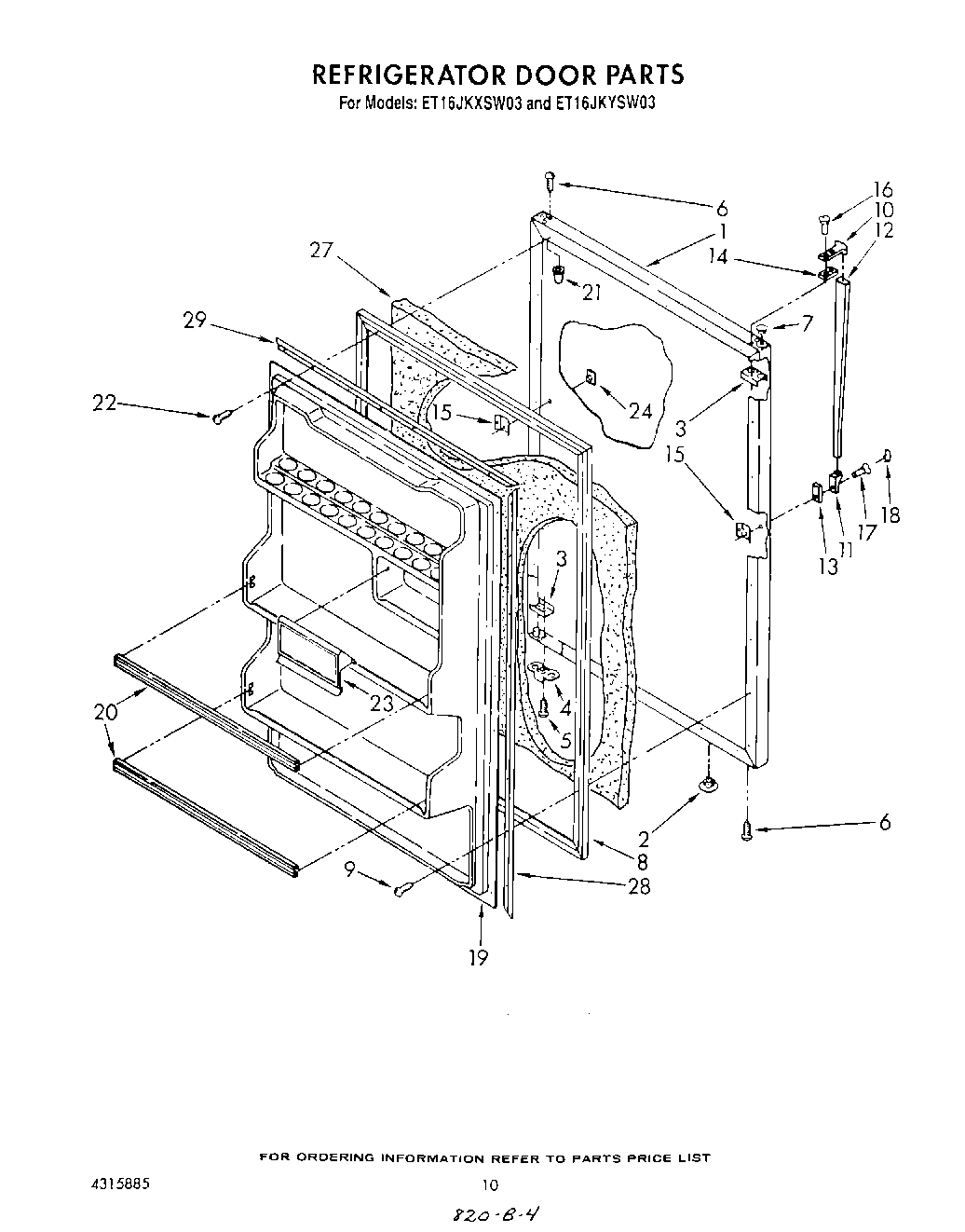

ET16JKYSM03 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

ET16JKYSM03 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

ET16JKYSM03 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

PositionProduct
WPL LIT1124889
WPL LIT4315885
Torx Key
WPL LIT1127665
WPL LIT1120602
1Panel, Refrigerator Door (Platinum) (Also Order Item 21)
1Panel, Refrigerator Door (Toast)
1Panel, Refrigerator Door (Also Order Item 27) (Almond)
1Panel, Refrigerator Door (Also Order Item 27) (White)
1Panel, Refrigerator Door (Also Order Item 27) (Golden Harvest)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6Screw (Repair)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Platinum)
7Hole Plug (Toast)
7Hole Plug (Almond)
82188445A Whirlpool Refrigerator Door Gasket Seal
9WP489069 Whirlpool Compactor Screw
10819342 Whirlpool Refrigerator Endcap Kit
12Handle, Center (Golden Harvest)
12Handle, Center
13Shim, Handle End
14Spa
15WP939101 Whirlpool Refrigerator Plate
16Screw (Repair)
16WP488920 Whirlpool Refrigerator Screw
17WP488729 Whirlpool Refrigerator Door Screw
18WP1101634 Whirlpool Refrigerator Cover
19Interior Door Panel
20Trim, Door (Top) (2)
21Cap, Hinge Sleeve (2)
23Compartment Door, Butter
24Hole Plug, Handle (Almond)
24Hole Plug, Handle (Toast)
24Hole Plug, Handle (Platinum)
24Hole Plug, Handle (White)
24WP2189000 Whirlpool Refrigerator Handle Plug
28Gasket Retainer, Side (2)
29799344 Whirlpool Refrigerator Paint
29350930 Whirlpool White Spray Paint
29Paint, Spray (13 Oz.) (Platinum)
29833938 Whirlpool Refrigerator Terminal
29Toast
29350956 Whirlpool Spray Assembly
29Almond (Uncut)
29Golden Harvest (Uncut)
2972017 Whirlpool Appliance Touch-Up Paint White
29Golden Harvest
2972113 Whirlpool Touch-Up Paint
29Leveler (Thinner)
29212643 Whirlpool Refrigerator Permagum Sealer
29WP72107 Whirlpool Touchup
29Retainer, Gasket
29Enamal, Toast (1 Qt. Uncut)
29WPL 799833
29Enamel, Black (1 Qt. Uncut)
2972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
29CEMENT, ALUMILASTIC (1 1/4 OZ.)
29285006 Whirlpool Spray
2972032 Whirlpool Touch Up Paint Black
29TAPE, VINYL (3/4 X 108“)
29WP542638 Whirlpool Refrigerator Grease
29WP505587 Whirlpool Refrigerator Sealer
29WP503695 Whirlpool Refrigerator Sealer
29876370 Whirlpool Refrigerator Insulation
29606755 Whirlpool Refrigerator Bag
29511873 Whirlpool Refrigerator Paint
29350942 Whirlpool Spray Paint
29WPL 72112
29Platinum (Uncut)
29WPL 876029
