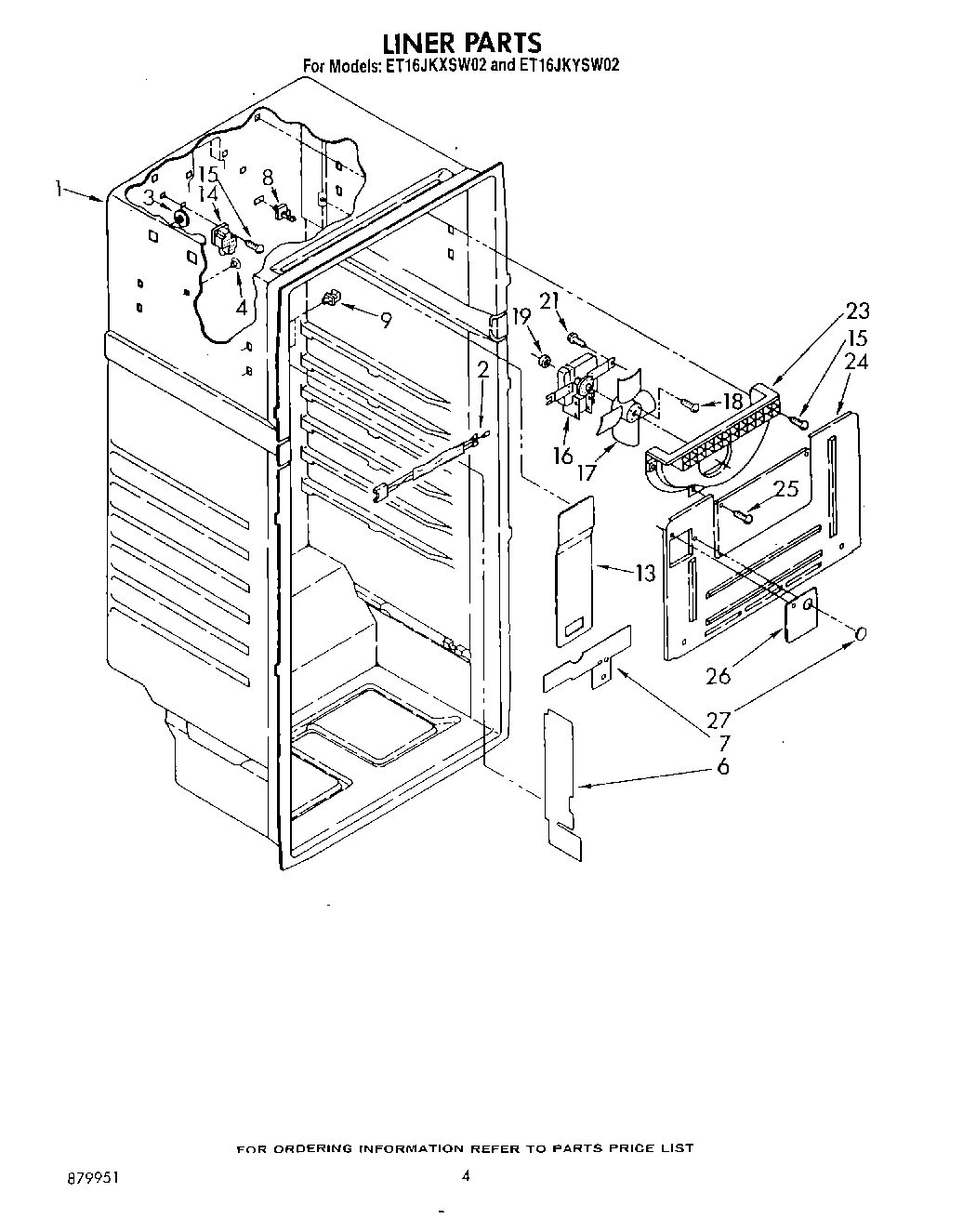

ET16JKYSW02 03 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Wiring, Fan Motor
3	Hole Plug (2)
4	WP941839 Whirlpool Refrigerator Button Plug
6	Side, Electric Shield
7	Top, Electric Shield
8	Stud, Evaporator (2)
9	Stud Hook (2)
13	Cover, Air Duct
14	Terminal Block, Multiple
15	WP489478 Whirlpool Refrigerator Screw
15	SCREW
16	482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
17	WP1100938 Whirlpool Refrigerator Fan Blade
18	WP487887 Whirlpool Refrigerator Screw
19	Fan Grommet (2)
21	Screw (2)
23	Scroll, Fan
24	Evaporator Cover
25	WP488729 Whirlpool Refrigerator Door Screw
26	WP2217784 Whirlpool Refrigerator Cover
27	Hole Plug
