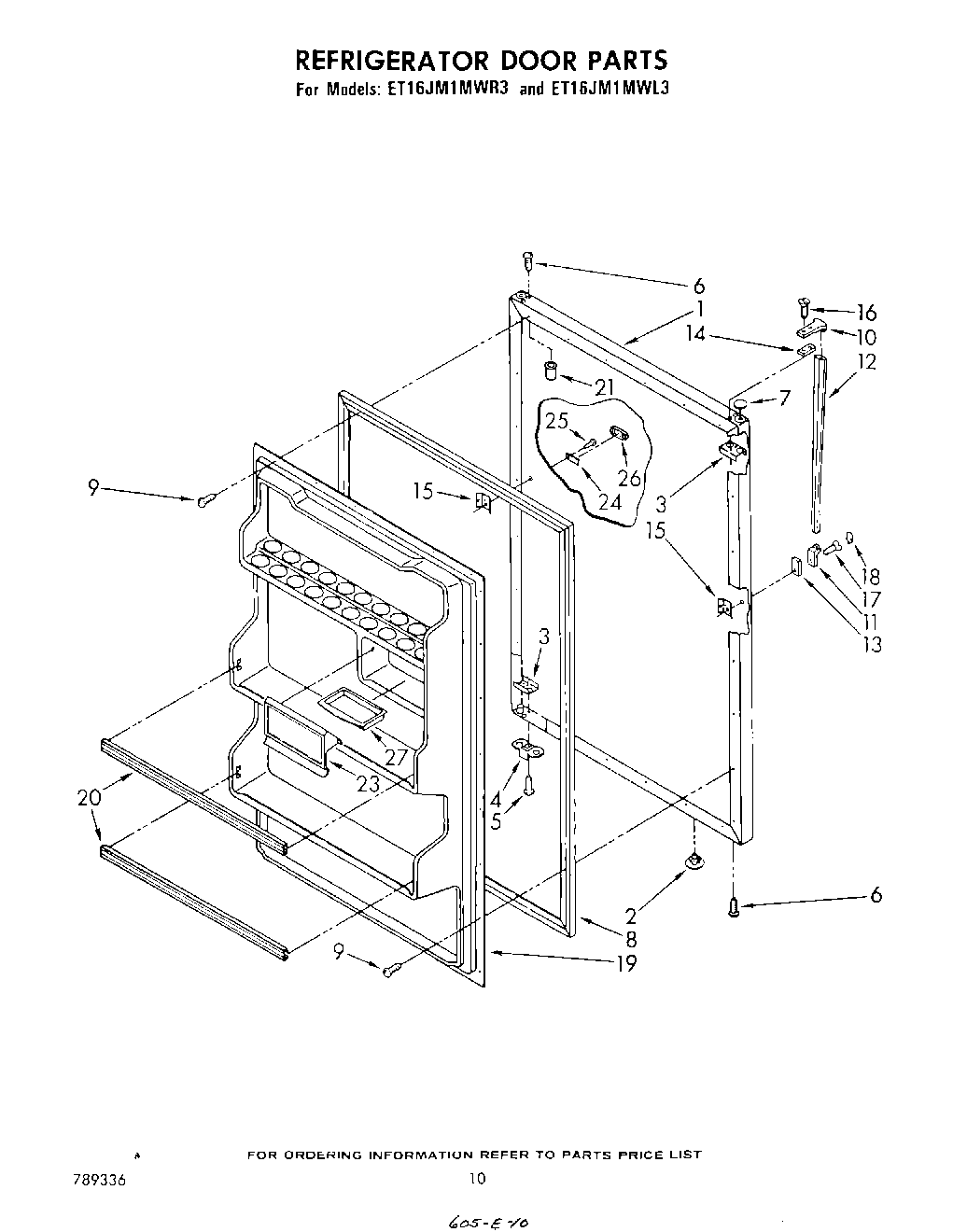

ET16JM1MWR3 08 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (Almond)
1	Panel, Refrigerator Door (Golden Harvest)
1	Panel, Refrigerator Door (White)
1	Panel, Refrigerator Door (Platinum) (Use 978941 Fiberglass Insulation)
1	Panel, Refrigerator Door (Toast)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
6	Screw (Repair)
7	Hole Plug (Platinum)
7	Hole Plug (Toast)
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2188445A Whirlpool Refrigerator Door Gasket Seal
9	WP489069 Whirlpool Compactor Screw
9	SCREW
10	819342 Whirlpool Refrigerator Endcap Kit
10	WP2191883 Whirlpool Refrigerator Handle Endcap
11	WP2183139 Whirlpool Refrigerator Handle End Cap
12	Handle, Center
12	Handle, Center (For Platinum Model Only)
13	Shim, Handle End
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	WP1101634 Whirlpool Refrigerator Cover
19	Interior Door Panel
19	Interior Door Panel
20	Trim, Door (Top) (2)
21	Cap, Hinge Sleeve (2)
23	WPL 946998
24	Clip, Medallion
26	Medallion (Almond)
26	Medallion (Golden Harvest)
26	Medallion (White)
26	Medallion (Toast)
26	Medallion (Platinum)
