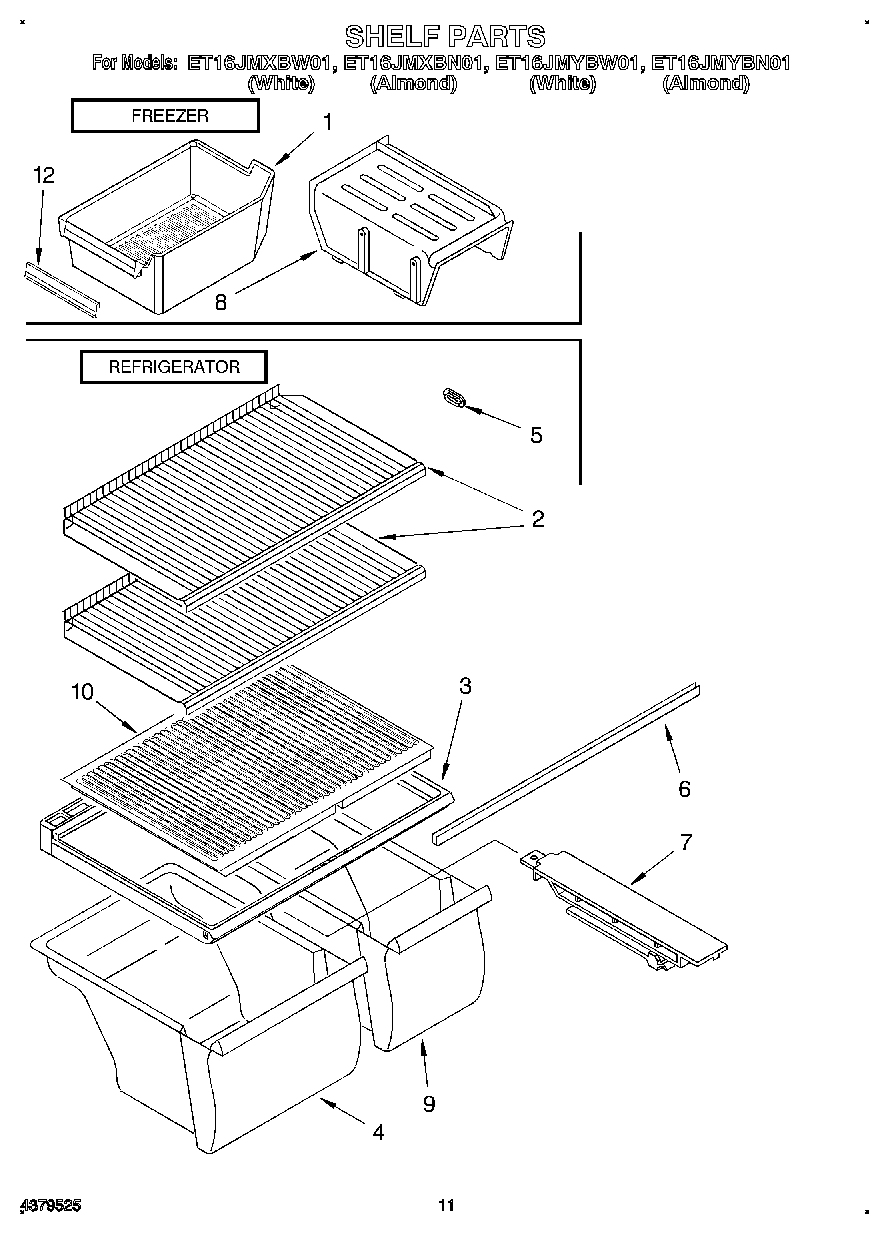

ET16JMXBN01 06 – SHELF, LIT/OPTIONAL

ET16JMXBN01 06 – SHELF, LIT/OPTIONAL

Written by

in

ET16JMXBN01 06 – SHELF, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2170974
Literature Parts (Do-It-Yourself Manual Ref./Frz.)
Modular Icemaker Service Sheet
WPL LIT677971
Torx Key
WPL LIT2169460
Use & Care Guide
1PAN-ICE
2Shelf, Wire (2)
3WP2314548 Whirlpool Refrigerator Cover
4W10854037 Whirlpool Refrigerator Crisper Pan
5Plug, Shelf Cup
6WP2172748 Whirlpool Drawer Support
7WP2163835 Whirlpool Track Assembly
8Shelf, Ice Tray
9W10856580 Whirlpool Crisper Pan
10Insert, Crisper Cover
12350942 Whirlpool Spray Paint
12212643 Whirlpool Refrigerator Permagum Sealer
12Trim Ice Cube Pan
12WP72107 Whirlpool Touchup
12Door Reversal Instructions
12350930 Whirlpool White Spray Paint
12Almond (Uncut)
12799344 Whirlpool Refrigerator Paint
1272017 Whirlpool Appliance Touch-Up Paint White
12350956 Whirlpool Spray Assembly
1272032 Whirlpool Touch Up Paint Black
12285006 Whirlpool Spray
12WP505587 Whirlpool Refrigerator Sealer
12TAPE, VINYL (3/4 X 108“)
12CEMENT, ALUMILASTIC (1 1/4 OZ.)
12WPL 799832
12WPL 799833
12WP503695 Whirlpool Refrigerator Sealer
12876370 Whirlpool Refrigerator Insulation
12833938 Whirlpool Refrigerator Terminal
12606755 Whirlpool Refrigerator Bag
12511873 Whirlpool Refrigerator Paint
12WPL 876029
12WP542638 Whirlpool Refrigerator Grease
