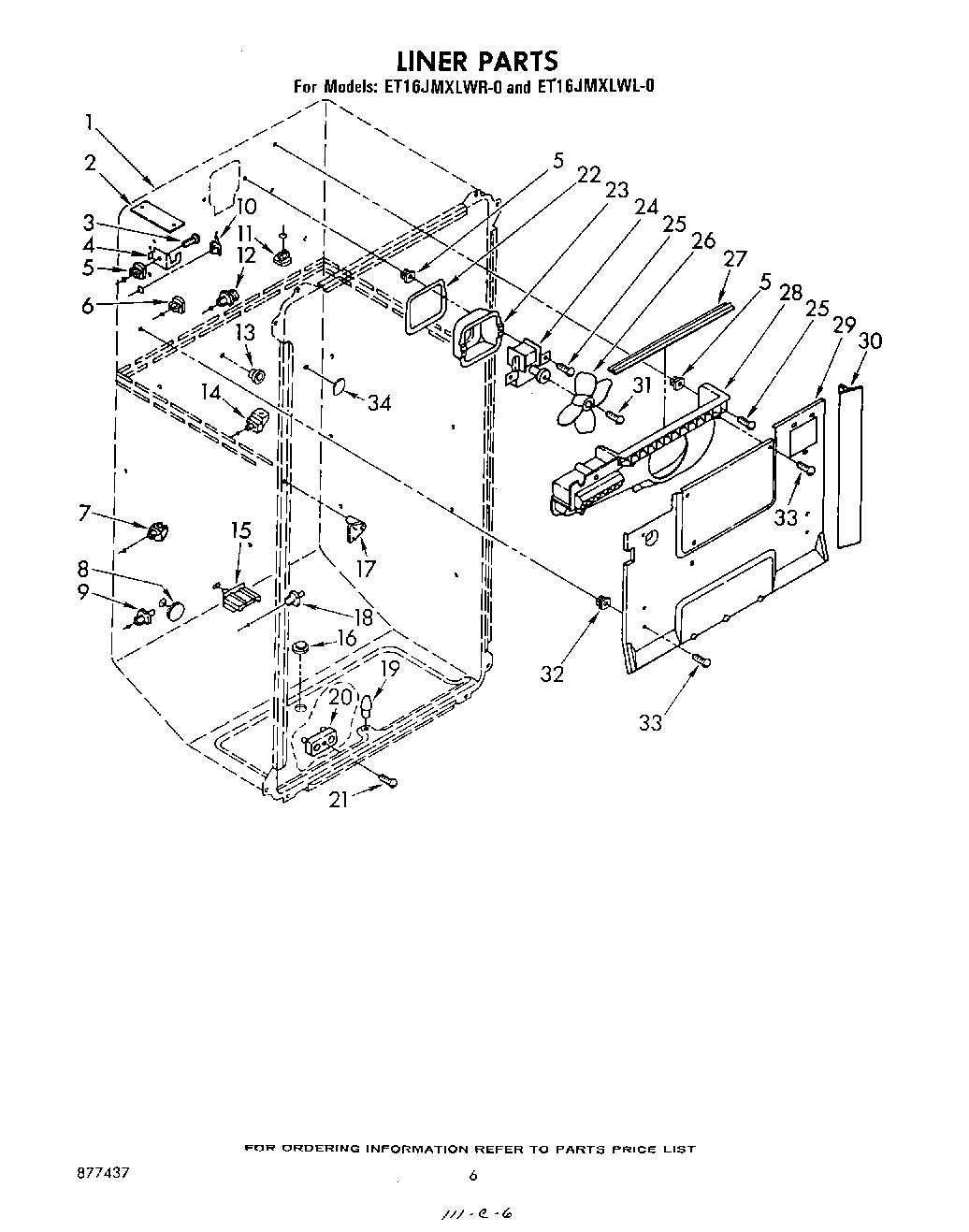

ET16JMXLWR0 04 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Gasket, Tube Fitting
4	Bracket, Receptacle
5	Grommet
6	xGrommet, Screw (2)
7	Shelf Stud Saddle (R.S.)
7	Shelf Stud, Saddle
8	Hole, Plug
9	Shelf, Stud
10	Retainer, Plug
11	Screw Grommet
12	Stud, Frame Mounting (2)
13	Grommet, Wiring
14	Retainer, Stud (4)
15	Stud, Support Rear
16	Drain Cover
17	Spacer, Liner (2)
18	Stud, Shelf (2)
19	Grommet, Crisper Cover
20	Spacer, Liner (8)
21	Screw (Repair)
22	Gasket, Motor Cover
23	Cover, Motor
24	482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
25	W11624204 Whirlpool Screw
26	WP1100938 Whirlpool Refrigerator Fan Blade
27	Sealing Gasket
28	Scroll, Fan
29	Cover, Evaporator
30	Gasket, Cover (2) (15-3/4“)
30	Gasket, Cover (2) (10“)
31	WP487887 Whirlpool Refrigerator Screw
32	Grommet
33	WP488729 Whirlpool Refrigerator Door Screw
34	Grommet Drain Fitting
