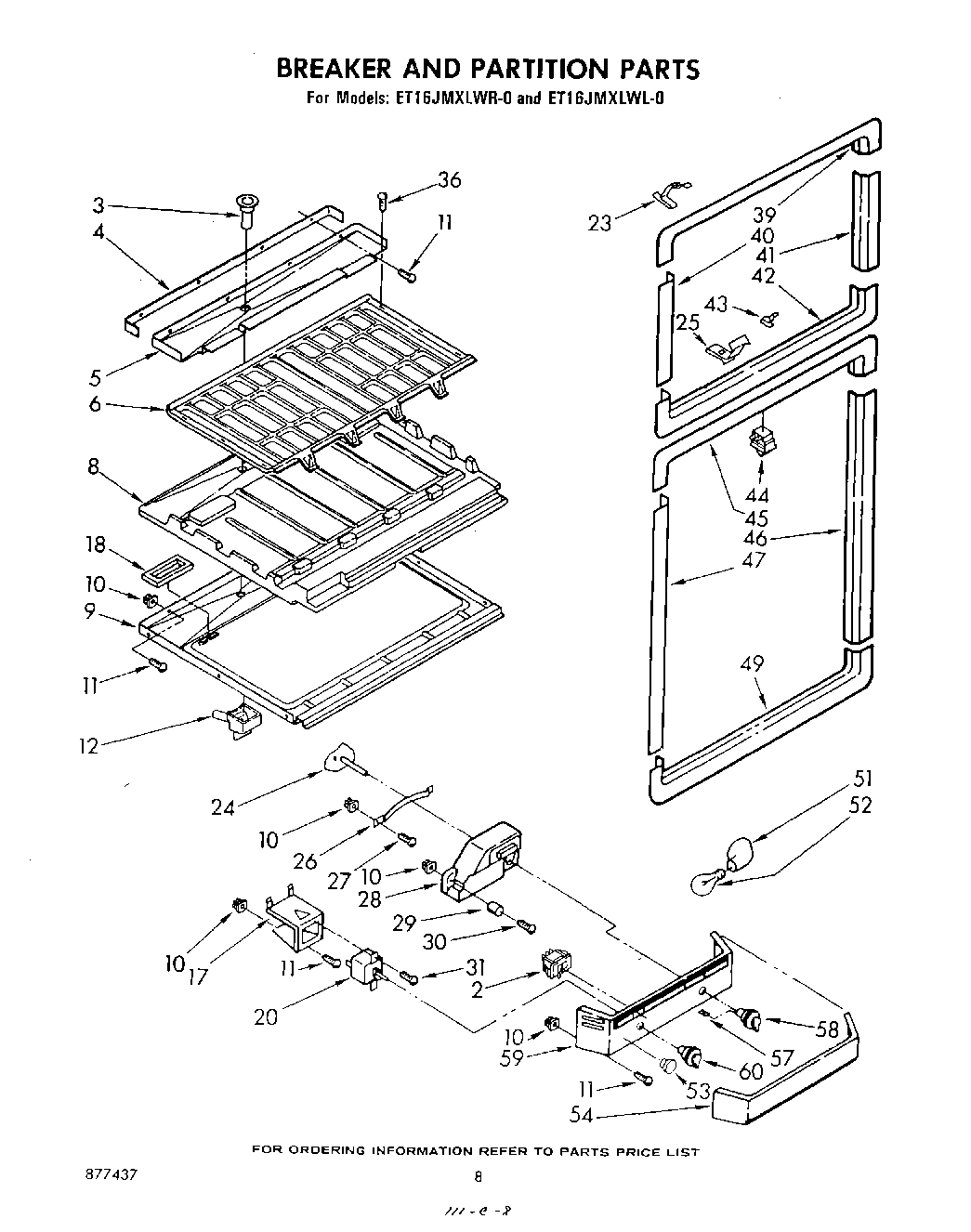

ET16JMXLWR0 06 – BREAKER AND PARTITION

Products

Position	Product
2	WP938213 Whirlpool Refrigerator Power Switch
3	Fitting, Drain Pan
4	Gasket, Drain Pan
5	Pan, Evaporator Drain
6	Separator (Top)
8	Insulation, Separator
9	Separator (Bottom)
10	Grommet
11	W11624204 Whirlpool Screw
12	Cup, Drain
17	Bracket, Thermostat
18	Gasket, Air Return
20	WP819470 Whirlpool Refrigerator Thermostat
23	Clip, Wrapper (23)
24	Damper, Air
25	Breaker, Clip
26	Retrainer, Air Dampener
27	Screw, 8 x 3/8
28	Air Diffuser
29	836667 Whirlpool Refrigerator Spacer
30	Screw, 8 x 1-1/4 (3)
31	WP965173 Whirlpool Dishwasher Screw
36	WP488729 Whirlpool Refrigerator Door Screw
39	Breaker, Freezer (Top)
40	Breaker, Freezer (L.S.)
41	Breaker, Freezer (R.S.)
42	Breaker, Mullion (Top)
43	Breaker, Trim Clip
44	W11384469 Whirlpool Door Switch
45	Breaker, Mullion (Bottom)
46	Breaker, Refrigerator R.S.
47	Breaker, Refrigerator L.S.
49	Breaker, Refrigerator (Bottom)
51	4387478 Whirlpool Refrigerator Light Socket
52	RANGE ONLY 40W 120V APPL BULB
53	Hole Plug (2)
54	Light Lens
57	Knob, Retainer
58	Control Knob
59	Panel, Control
60	Knob, Temperature Control
