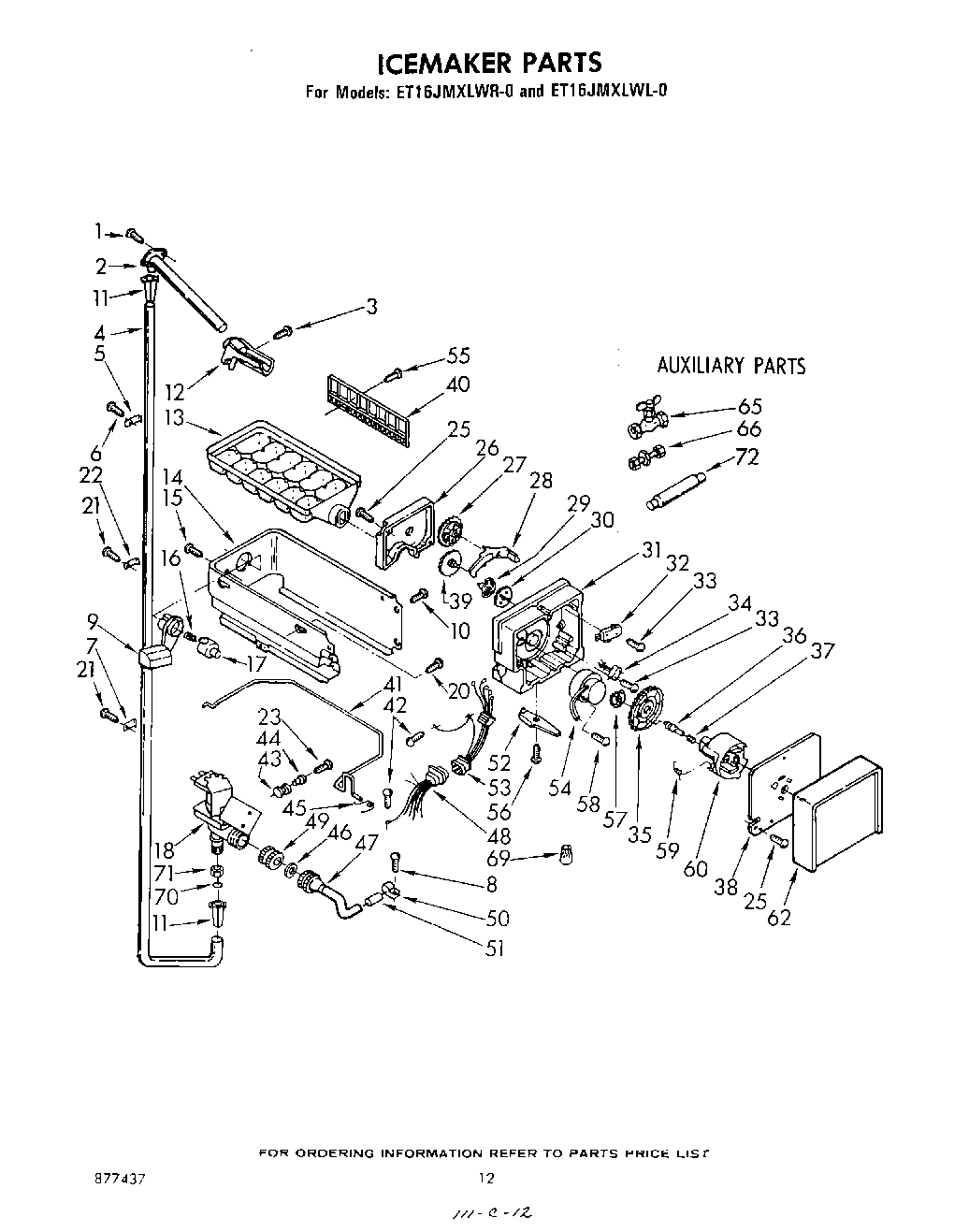

ET16JMXLWR0 08 – ICEMAKER , NOT ILLUSTRATED AND OPTI

ET16JMXLWR0 08 – ICEMAKER , NOT ILLUSTRATED AND OPTI

Written by

in

ET16JMXLWR0 08 – ICEMAKER , NOT ILLUSTRATED AND OPTI

Products

PositionProduct
350930 Whirlpool White Spray Paint
350942 Whirlpool Spray Paint
Paint, Spray 13 Oz. (Avocado)
Leveler (Thinner)
paint, spray 13 oz. (coffee)
285006 Whirlpool Spray
350956 Whirlpool Spray Assembly
Golden Harvest
1WP98165 Whirlpool Screw
2WP2196157 Whirlpool Fill Tube
3WP488729 Whirlpool Refrigerator Door Screw
4W10823511 Whirlpool Refrigerator Water Tube
5WP488878 Whirlpool Refrigerator Tube Clamp
6WP965173 Whirlpool Dishwasher Screw
7Clamp, Water Line (2)
8W11624204 Whirlpool Screw
9Support & Cam
10Screw, 8-18 x 5/8 (4)
114387491 Whirlpool Refrigerator Insert
12Collar, Inlet
13627711 Whirlpool Refrigerator Ice Flex Tray
14Frame
15Screw, 8-18 x 1/2
16Spring, Bearing
17Bearing
184318047 Whirlpool Water Valve
21WP489069 Whirlpool Compactor Screw
22WPL 836077
25W11693756 Whirlpool Screw Assembly
26Cover, Gear
27Gear & Cam
28Lever, Cam
29Cam & Pinion
30Gear
31Housing, Control
32627512 Whirlpool Refrigerator MICR Switch
33Screw, 4-24 x 3/4
34Switch, Water Valve
35Gear, Drive
36Pin, Drive
37Spring, Drive Pin
38Plate
39Gear & Pinion
40Package Guard
41Arm, Shutoff
42Screw, Ground
43Grommet (2)
44Spacer (2)
45Spring, Shutoff Arm
46WP16123 Whirlpool Washer
47Tube, Inlet
48Harness (Cabinet)
49Nut, Valve
50Clamp Tube
51WP2158826 Whirlpool Refrigerator Dampener
52Lever, Shutoff
53Harness (Ice Maker)
54Motor
56WP488787 Whirlpool Refrigerator Screw
57Gear, Timer
58Screw, 6-20 x 3/8 (2)
59Spring, Cam
60Cam (Includes Illus. 37 & 59)
62Cover, Front
65Valve, Shut-Off
66Union, 1/4“ x 3/16“
69Wire Connector
70“O“ Ring Seal (4)
71WP627018 Whirlpool Refrigerator Nut
72WPL 877437
72WPL 942913
7272017 Whirlpool Appliance Touch-Up Paint White
72WPL 943003
72WP72107 Whirlpool Touchup
72799344 Whirlpool Refrigerator Paint
72WPL 943379
72Golden Harvest (Uncut)
72WPL 942912
72CEMENT, ALUMILASTIC (1 1/4 OZ.)
72Almond (Uncut)
72Filter Kit
7272109 Whirlpool Dacor Avocado Touch-Up Paint
72Enamel, Black (1 Qt. Uncut)
72WPL 799832
72Transformer (115-230 Volt)
72WPL 799833
72Enamel, New Avocado (1 Qt. Uncut)
72Enamel, Coffee (1 Qt. Uncut)
72WPL 876029
72WPL 799351
7272032 Whirlpool Touch Up Paint Black
72TAPE, VINYL (3/4 X 108“)
7272110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72212643 Whirlpool Refrigerator Permagum Sealer
72511873 Whirlpool Refrigerator Paint
72606755 Whirlpool Refrigerator Bag
72833938 Whirlpool Refrigerator Terminal
72876370 Whirlpool Refrigerator Insulation
72WP503695 Whirlpool Refrigerator Sealer
72WP505587 Whirlpool Refrigerator Sealer
72WP542638 Whirlpool Refrigerator Grease
72Paint, Touch-Up 1/2 Oz. (Coffee)
